Dial Test Indicator SERIES 513 — Universal Type | MITUTOYO

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 9,896.43
พร้อมส่ง
SKU
DI-Universal

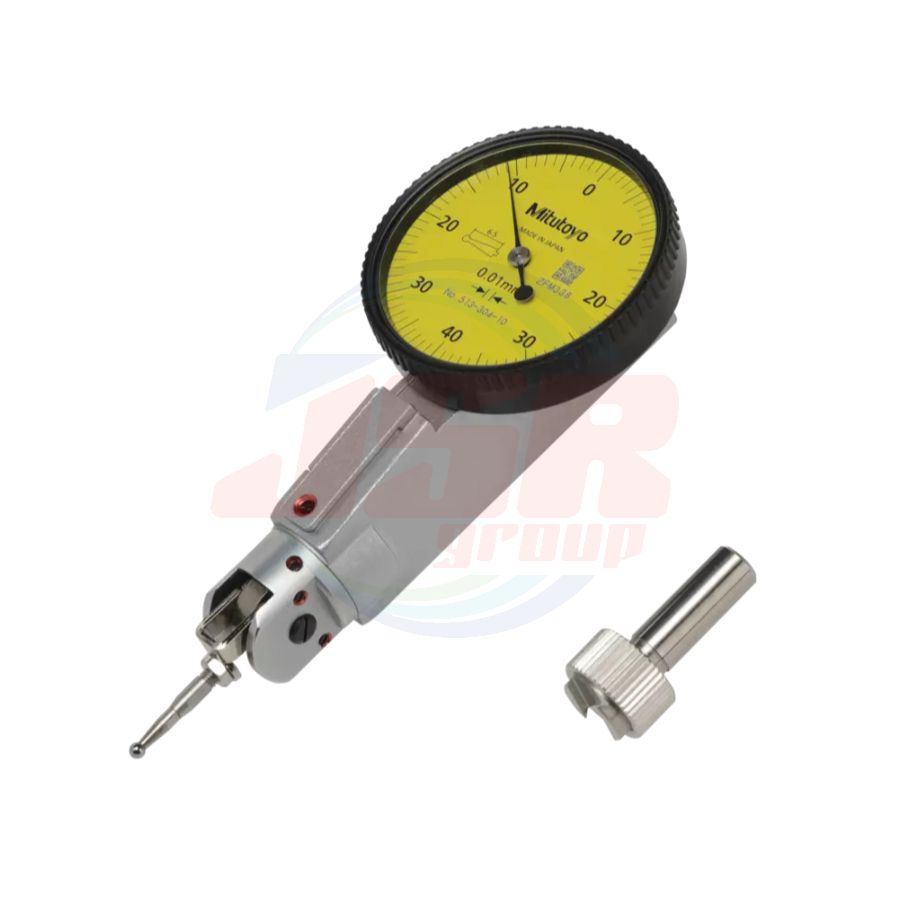

Dial Test Indicator SERIES 513 — Universal Type | MITUTOYO
Dial Test Indicator SERIES 513 — Universal Type | MITUTOYO Dial Test Indicator SERIES 513 — Universal Type | MITUTOYO

ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO
High accuracy No
With revolution counter No
Long contact point No
Standard No
Double scale spacing No
Compact No
Dustproof No
Carbide contact point No
Ruby contact point No
SPECIFICATIONS

Metric

Order No. Graduation (mm) Range (mm) Dial reading Maximum permissible error (MPE)*1 (μm) Mass (g) Measuring force (N) Carbide contact point
Basic set Full set Measuring range One rev. 10 scale divisions Hysteresis Repeatability
513-3041-10E 513-304-10T 0.01 0.8 0-40-0 9 - 5 4 3 71 0.3 or less

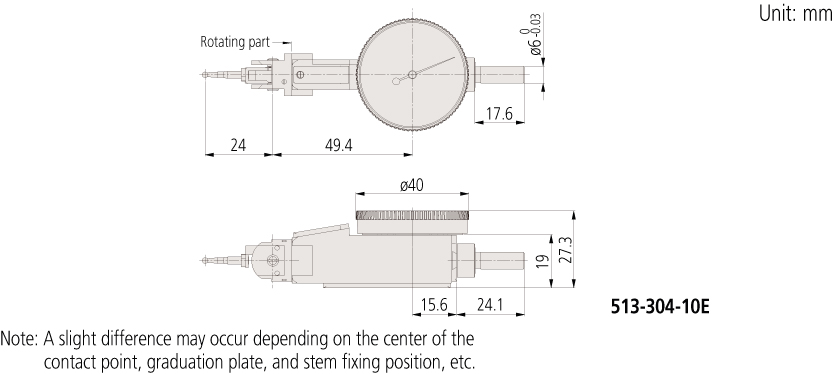

* The accuracy is guaranteed when used with the dial face facing upward and the contact point oriented as shown in the figure.
Note: 513-3XX-10 is indicated on the dial face and the inspection certificate.

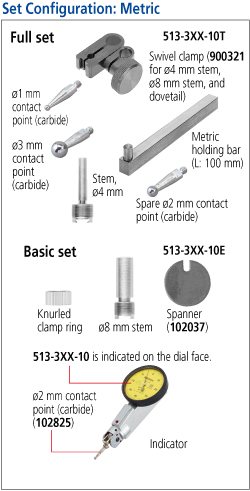

The code No. with suffix (E / T) is a set item which includes accessories. The main unit is not available as a standalone item.
