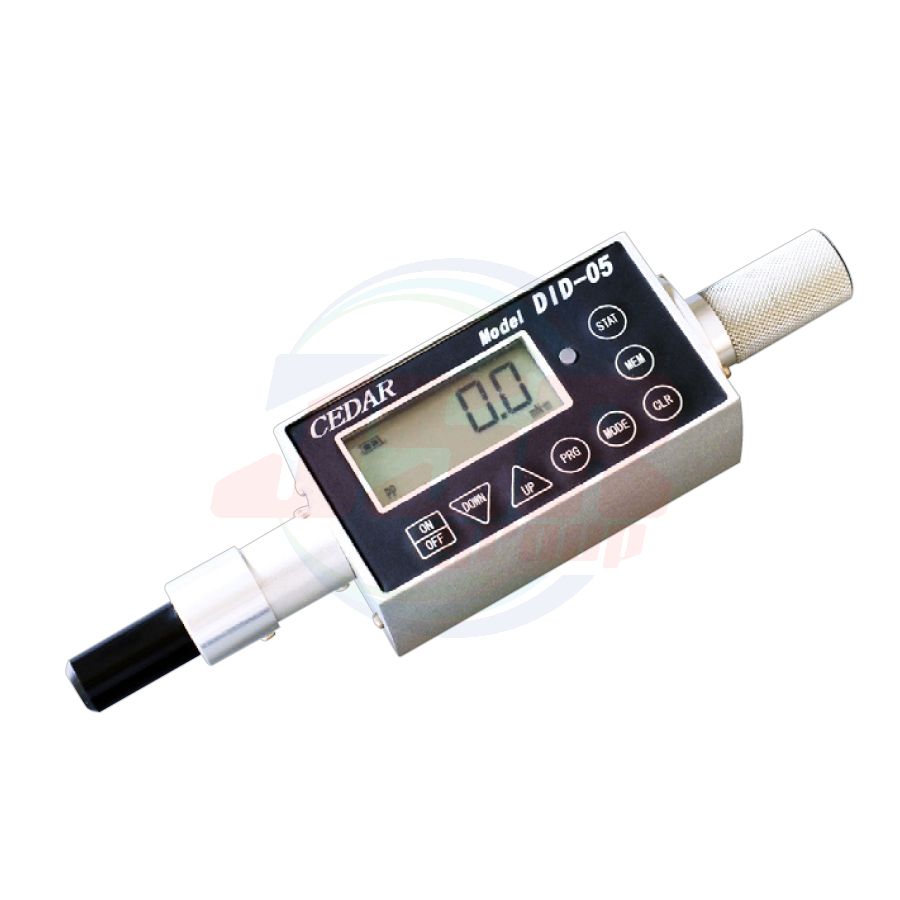

DID-05 | DIGITAL TORQUE DRIVER - DID-05 | CEDAR
THB 0.00
พร้อมส่ง
SKU
DID-05
For tightening and final check of screws & bolts
Lightweight and compact with integrated display !
For checking torque of the small screw of M0.8 ~ M2.0. Checking the starting torque of the rotating body such as volume & hinge.
In order to reduce the influence of the pressing force, the weight of the main unit was minimized to about 180. Screw tightening counter function is also standard installed.
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings easily by switch channels even if the tightening term changes.
• Lightweight and compact with integrated display
• 800 items of Memory data
• USB shape of Data output
• Settable upper limit and lower limit torque
• Notify the set value with buzzer & LED lamp
• Built-in tightening counter
• Rechargeable battery drive
• Auto power off safe operation
• Real time data output
• Cordless type
• Roller clutch has adopted and able to fast-forward in a right direction (screw tightening)
| Order No. |
DID-05 | |
| Measuring range |
2.0 ~ 500 mN•m 0.020 ~ 5 kgf•cm 0.020 ~4.5 lbf•in | |
| Accuracy |
±0.5% (499 digit or less ±3digit) | |
| Display |
The 4 figures digital display of LCD | |
| The measurement direction |
CW - CCW (right and left) | |
| Measurement Mode | PP | peak to peak The highest value of load is hold-displayed. |
| TR | track A display also changes with load change. | |
| PD | peak-down Load catches and displays the moment included in descent from a rise. | |
| C | Real-time Output Load torque value is outputted every about 1/160 second. | |
| A success or failure judging function |
High and low value are measurement within the limits, and can be set up. Five-set preservation is possible. | |
| The Maximum, minimum, and the averagevalue |
The data number, the maximum, the minimum value, and the average value of memoty data are displayed. | |
| Data memory counts |
800 data | |
| Data output |
ASCII format (baud rate 19200) | |
| auto clear time |
If the set-up time comes, measurement value will be automatically cleared in 0.0 ~ 3.0 seconds (0.5s interval). | |
| Setup of count |
1 to 99 count (count in a clockwise direction) | |
| Power supply |
Ni-MH chargeable battery 650 mAh | |
| Charge time / use time |
Charge about 3 hour /, continuation about 12-hour use | |
| Auto-power-off |
After the neglect during 10 minutes | |
| Bit / Socket part |
Ø4 | |
| Weight |
180g | |
| Accessories (one piece each) |
Ø4 Bit+ #1 (For one-way x1 For fixation x1) | |
| Exclusive charger | ||
| Result of calibration documentCertification on calibration document / Traceability system figure | ||
| Option |
When outputting data, the cable (USB miniB) is needed. | |

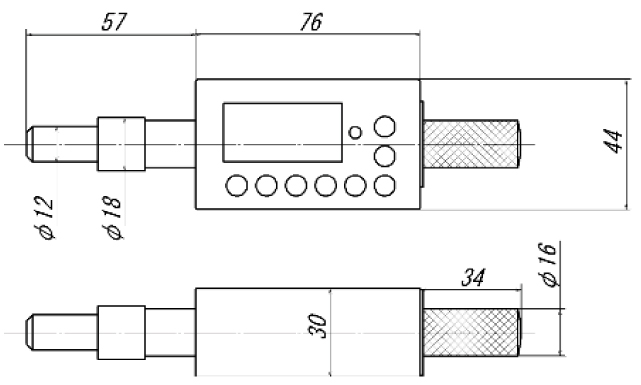

| Outside - dimension |
- | |
| แบรนด์สินค้า | CEDAR |
|---|
Outside - dimension
