DID-4 | DIGITAL TORQUE DRIVER - DID-4 | CEDAR
THB 0.00
พร้อมส่ง
SKU
DID-4
For tightening and final check of screws & bolts
Lightweight and compact with integrated display !
Cordless type and improves operability. Enable to stably measure for long continuous use.
Screw tightening counter function is also installed as standard.
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings easily by switch channels even if the tightening term changes.
• Lightweight and compact with integrated display
• 800 items of Memory data
• USB shape of Data output
• Settable upper limit and lower limit torque
• Notify the set value with buzzer & LED lamp
• Built-in tightening counter
• Rechargeable battery drive
• Auto power off for safe operation
• Real time data output
• Cordless type
| Order No. | DID-4 | |
| Measuring range | 0.020 ~ 4 N•m 0.20 ~ 40 kgf•cm 0.20 ~35 lbf•in | |
| Accuracy | ±0.5% (499 digit or less ±3digit) | |
| Display | The 4 figures digital display of LCD | |
| The measurement direction | CW - CCW (right and left) | |
| Measurement Mode | PP | peak to peak The highest value of load is hold-displayed. |
| TR | track A display also changes with load change. | |
| PD | peak-down Load catches and displays the moment included in descent from a rise. | |
| C | Real-time Output Load torque value is outputted every about 1/160 second. | |
| A success or failure judging function | High and low value are measurement within the limits, and can be set up. Five-set preservation is possible. | |
| The Maximum, minimum, and the averagevalue | The data number, the maximum, the minimum value, and the average value of memoty data are displayed. | |
| Data memory counts | 800 data | |
| Data output | ASCII format (baud rate 19200) | |
| auto clear time | If the set-up time comes, measurement value will be automatically cleared in 0.0 ~ 3.0 seconds (0.5s interval). | |
| Setup of count | 1 to 99 count (count in a clockwise direction) | |
| Power supply | Ni-MH chargeable battery 1.2V x 4 cells 800 mAh | |
| Charge time / use time | Charge about 3 hour /, continuation about 12-hour use | |
| Auto-power-off | After the neglect during 10 minutes | |
| Bit / Socket part | HEX 6.35 | |
| Weight | 400g | |
| Accessories (one piece each) | Bit #1+, #2+ | |
| Bit holder One way bit holder | ||
| Exclusive charger | ||
| Result of calibration documentCertification on calibration document / Traceability system figure | ||
| Option | When outputting data, the cable (USB miniB) is needed. | |
| Outside - dimension | - | |
| แบรนด์สินค้า | CEDAR |
|---|

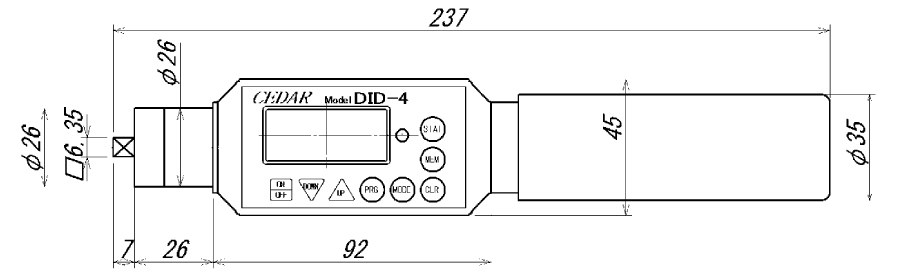

Outside - dimension
