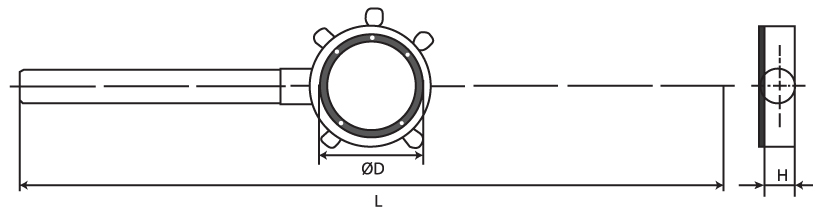

| Order No.(New) | Order No.(old) | For Round Dies | Ø D x H | L1 | |
| metric | inch-sizes | ||||
| 491824001 | 261520987 | M16 - M20 | BSW5/8 - BSW13*16 | 45 x 18 | 450 |
| 491824002 | 261521187 | M22 - M24 | BSW7/8 - BSW1” | 55 x 22 | 560 |
| 491824003 | 261521387 | M27 - M36 | BSW1.1/8 - BSW1.3/8 | 65 x 25 | 630 |
| 491824004 | 261521487 | MF38 - MF42 | G1.1/8 - G1.1/4 | 75 x 20 | 800 |
| 491824005 | 261521587 | M38 - M42 | BSW1.1/2 - BSW1.5/8 | 75 x 30 | 800 |
| 491824006 | 261521687 | MF45 - MF52 | G 1.3/8 - G 1.5/8 | 90 x 22 | 900 |
| 491824007 | 261521787 | M45 - M52 | BSW1.3/4 - BSW 2” | 90 x 36 | 900 |
| 491824008 | 261521887 | MF54 - MF63 | G1.3/4 - G2” | 105 x 22 | 975 |
| 491824009 | 261521987 | M54 - M63 | BSW2.1/4 | 105 x 36 | 975 |
| 491824010 | 261522087 | MF64 - MF71 | G2.1/4 - G2.3/4 | 120 x 22 | 956 |
| 491824011 | 261522187 | M64 - M71 | BSW2.1/2 - BSW2.3/4 | 120 x 36 | 956 |
| 491824012 | 261522287 | G3” | 130 x 25 | 966 | |
| 491824013 | 261522387 | 130 x 36 | 966 | ||
| 491824014 | 261522487 | 140 x 22 | 976 | ||
| 491824015 | 261522687 | G3.1/2” | 150 x 25 | 986 | |
| 491824016 | 261522887 | G4” | 160 x 25 | 996 | |
| แบรนด์สินค้า | BAER |
|---|
