• Double-column structure ensures stable measurements.
• Ergonomic base fits comfortably in the hand.
• Inclined handle improves slider ergonomics.
• Bidirectional touch-trigger probe is available as an optional accessory.
• Provided with a long scriber (150 mm).
SPECIFICATIONS
Metric
Order No. | Range (mm) | Resolution (mm) | Maximum permissible error E MPE (mm)* |
Response speed (mm/s) |

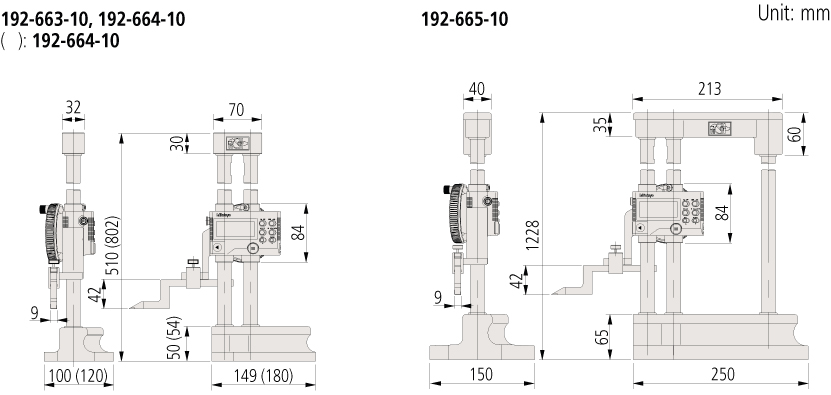

Height (mm) | Mass (kg) |
192-663-10 | 0 - 300 | 0.01/0.005 (selectable) |
±0.02 | Approx. 500 | 510 | 5.7 |
192-664-10 | 0 - 600 | ±0.04 | 802 | 8.3 | ||
192-665-10 | 0 - 1000 | ±0.06 | 1228 | 15.7 |
Inch / Metric
Order No. | Range (mm) | Resolution (mm) | Maximum permissible error E MPE (mm)* |
Response speed (mm/s) |
Height (mm) | Mass (kg) |
192-670-10 | 0 - 12 | 0.01 mm/0.005 mm (selectable) 0.0005 in/0.0002 in (selectable |
±0.001 | Approx. 500 | 510 | 5.7 |
192-671-10 | 0 - 18 | ±0.0015 | 649 | 7.5 | ||
192-672-10 | 0 - 24 | ±0.0015 | 802 | 8.3 | ||
192-673-10 | 0 - 40 | ±0.0025 | 1228 | 15.7 |
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 3,500 hours in continuous use
* Maximum permissible error, E MPE is the term (notation) used in JIS B 7517: 2018, revised based on ISO/TR 14253-6: 2012.
