Digimatic Indicator ID-H SERIES 543 — High Accuracy and High Functionality Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 20,094.60
พร้อมส่ง
SKU
ID-H

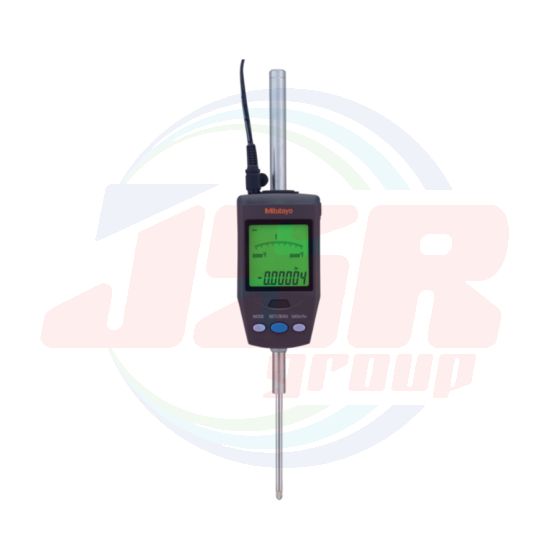

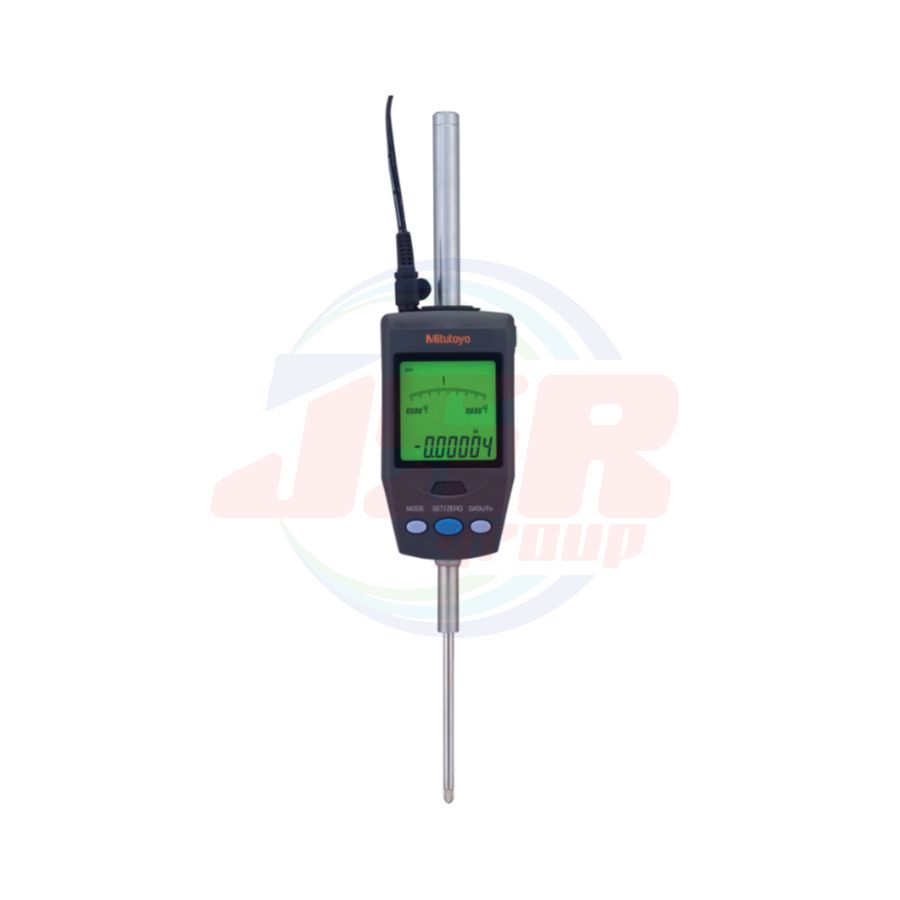

• This digital indicator offers the excellent accuracy, functionality and high resolution expected with top-of-the-line indicators.
• Take advantage of its high accuracy backed up by 0.5 μm resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display.
• The maximum, minimum, or runout value (MAX - MIN) can be measured.
• An advanced, remote control system can be implemented with the built-in RS-232C interface and a PC.
• With the optional remote controller, operations such as zero-setting and presetting can be made without touching the indicator body, thereby enabling more stable and high accuracy measurement.
SPECIFICATIONS
Metric --- ISO/JIS Type
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (MPE)*1 (mm) | Maximum permissible limit (MPL) |
Mass (g) |
|||
| Partial measuring range P MPE |
Total measuring range E MPE |
Hysteresis H MPE |
Repeatability R MPE |
Measuring force (N) | ||||
| 543-561 | 30.48 | 0.001/0.01 (selectable) |
0.0015 | 0.0015 | 0.0015 | 0.001 | 2.0 or less | 290 |
| 543-563 | 60.96 | 0.0025 | 0.0025 | 0.0025 | 2.5 or less | 305 | ||
Inch / Metric --- ASME/ANSI /AGD type
| Order No. | Range | Resolution | Maximum permissible error (MPE)*1 (in) | Maximum permissible limit (MPL) |
Mass (g) |
||
| Overall*3 | Hysteresis | Repeatability | Measuring force (N) | ||||
| 543-562 | 1.2 in/ 30.48 mm |
0.00002/ 0.00005/ 0.0001 in, 0.0005/ 0.001 mm (selectable) |
±0.00006 | 0.00006 | 0.00004 | 2.0 or less | 300 |
| 543-564 | 2.4 in/ 60.96 mm |
±0.00010 | 0.00010 | 2.5 or less | |||
• Display: 7-digit display, sign, and analog bar with 2-color backlight
• Power source: 5.9 V DC (via AC adapter) 06AGZ369*
* To denote your AC power cable add the following suffixes to the code No.: JA for UL / CSA and PSE, D for CEE,
DC for CCC, E for BS, K for KC
• Position detection method: Photoelectric-type reflection linear encoder
• Response speed: Approx. 1000 mm/s
• Lifting lever: 21EAA426 (standard accessory)
*1 These values apply to normal measurements at 20 °C.
*2 To denote your AC power cable add the following suffixes to the code No.: A for UL / CSA, D for CEE, DC for CCC, E for
BS, K for KC, No suffix is required for JIS/100 V
*3 Overall magnification and linearity
Note 1: The indicator can output SPC (Digimatic) data consisting of up to 6 digits in full. If the data consists of 7 digits the first
digit is not output (example: 123.4565 mm is output as 23.4565 mm).
Note 2: Regarding origin setting, refer to “Precautions for use” on page 07-2.
Note 3: The orientation for use can be from vertical (contact point pointing downward) to horizontal (spindle in horizontal
orientation).
