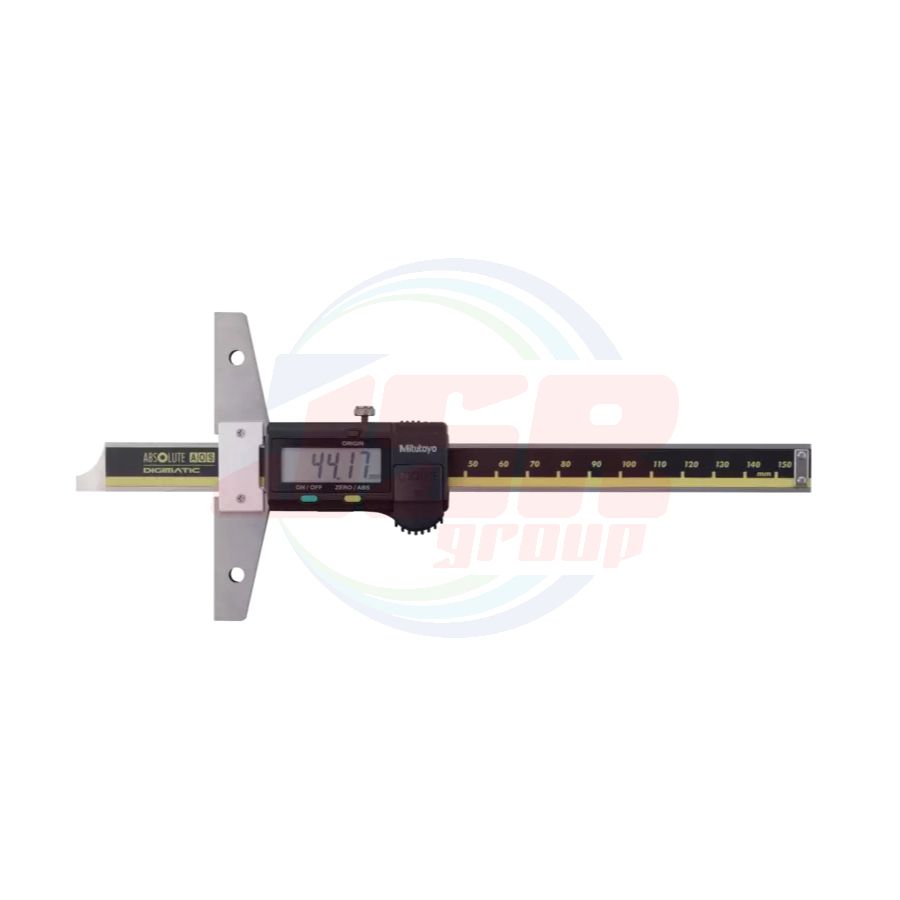

ABSOLUTE Digimatic Depth Gage SERIES 571 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 8,912.03
พร้อมส่ง
SKU
1MIT-VDS-1
• Enables stable depth measurement with a resolution of 0.01 mm.
• Data output function allows integration into statistical process control and measurement systems.
• Optional longer extension bases are available.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Resolution (mm) |
Battery life | Base (W×T) (mm) |
Maximum permissible error E MPE (mm)*1 |
| 571-201-30 | 0 - 150 | 0.01 | Approx. 5 years | 100×6 | ±0.02 |
| 571-202-30 | 0 - 200 | ||||
| 571-203-30 | 0 - 300 | 100×6.3 | ±0.03 | ||
| 571-204-10 *² | 0 - 450 | Approx. 3 years | 250×10 | ±0.05 | |
| 571-206-10 *² | 0 - 600 | ||||
| 571-206-10 *² | 0 - 750 | ±0.06 | |||
| 571-207-10 *² | 0 - 1000 | ±0.07 |
Inch / Metric
| Order No. | Range (in) |
Resolution | Battery life | Base (W×T) (in) |
Maximum permissible error E MPE (in)*1 |
| 571-211-30 | 0 - 6 | 0.0005 in/ 0.01mm |
Approx. 5 yea | 3.93×0.23 | ±0.001 in/±0.02 mm |
| 571-212-30 | 0 - 8 | ||||
| 571-213-30 | 0 - 12 | 3.93×0.25 | ±0.0015 in/±0.03 mm | ||
| 571-214-10*² | 0 - 18 | Approx. 3 years | 9.8×0.39 | ±0.002 in/±0.05 mm | |
| 571-215-10*² | 0 - 24 | ||||
| 571-216-10*² | 0 - 30 | ±0.0025 in/±0.06 mm | |||
| 571-217-10*² | 0 - 40 | ±0.0025 in/±0.07 mm |
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Position detection method: Electrostatic capacity absolute sensor
• Response speed: Unlimited
*1 Maximum permissible error, E MPE, is the term defined by ISO 13385-2:2011.
*2 Cannot be used with U-WAVE-TC
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
| Inch-Metric | Metric |

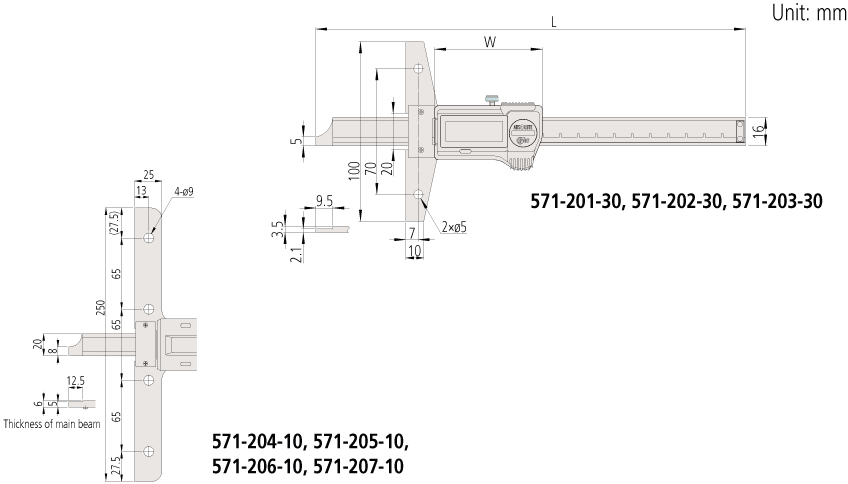

| Range (mm) | L | W | Base thickness |
| 0 - 150 | 239 | 59.2 | 6 |
| 0 - 200 | 289 | ||
| 0 - 300 | 403 | 71 | 6.3 |
| 0 - 450 | 635 | 94 | 10 |
| 0 - 600 | 785 | ||
| 0 - 750 | 935 | ||
| 0 - 1000 | 1200 |
