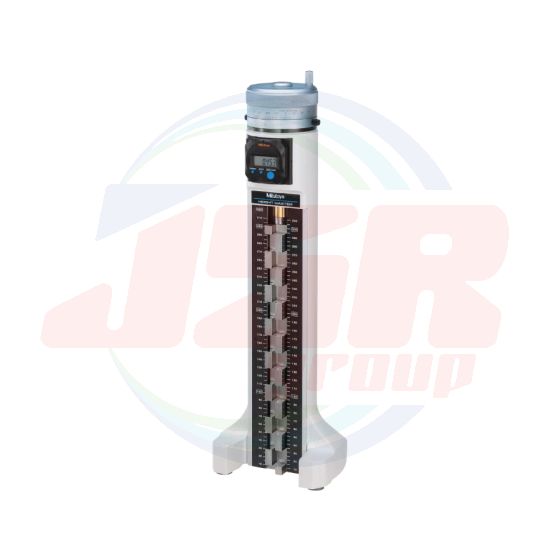

• For calibrating and setting height gages.
• Staggered arrangement of block stack have two measuring faces on the same level, one facing up and the other down.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
SPECIFICATIONS
Metric
Order No. | 515-374 | 515-376 | 515-378 | |
Range (H) | 10 < H ≤ 310 mm | 10 < H ≤ 460 mm | 10 < H ≤ 610 mm | |
Resolution (digital display) | 0.001 mm | |||
Block step | 20 mm (staggered) | |||
Micrometer adjustment | 20 mm | |||
Micrometer feed | 0.5 mm/rev | |||
Block pitch accuracy |
0 < H ≤ 310 mm | ±1.5 µm | ||
310 < H ≤ 460 mm | — | ±2.5 µm | ||
460 < H ≤ 610 mm | — | — | ±3.5 µm | |
Parallelism of blocks |
0 < H ≤ 310 mm | 2.0 µm | ||
310 < H ≤ 610 mm | — | 2.5 µm | ||
Feed error | ±2.0 µm | ±2.5 µm | ||
Retrace error | 2.0 µm | 2.5 µm | ||
Mass | 9.5 kg | 13.6 kg | 16 kg |
• Display: 6 digits
• Power source: SR44 battery (2 pcs.), 938882 included as standard (for operational checks)
• Battery life: Approx. 1.8 years under normal use
Note: The block pitch accuracy and the parallelism of blocks are based on main unit reference surface, which does not include retrace error.
