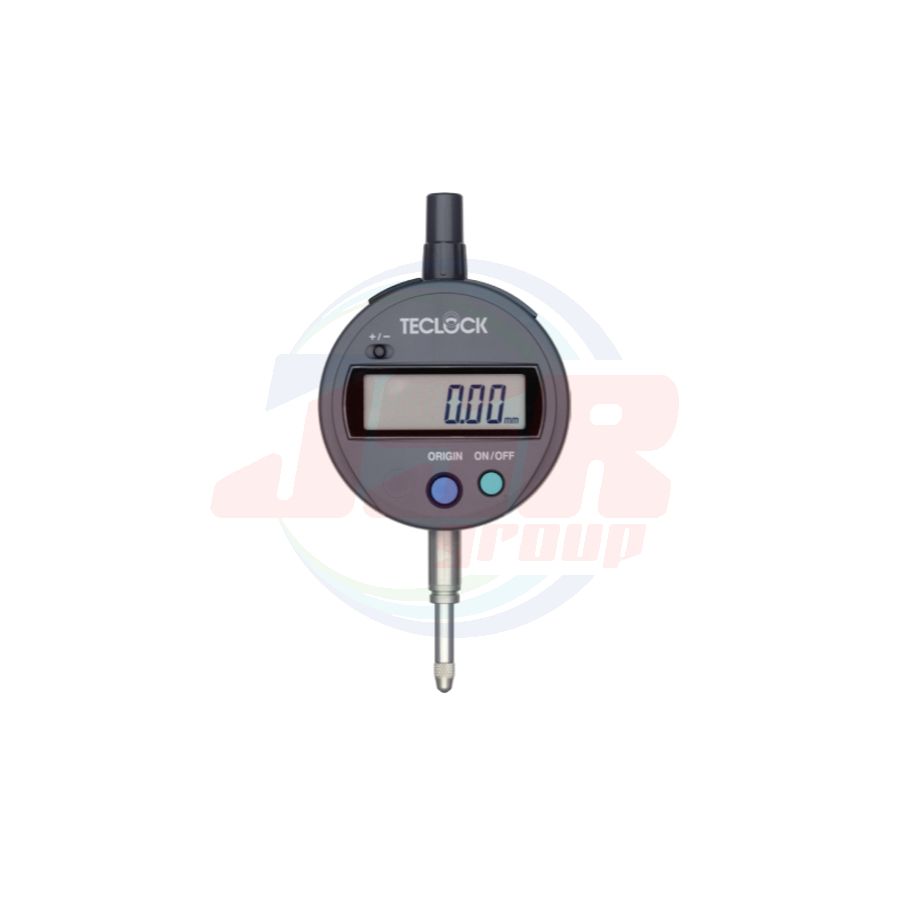

Digital Indicator PC Series
Measuring Range 12.7mm Type / Standard Model
• Data output and statistics transaction can be easily made by using digital indicator.
• 0.01mm and 0.0005mm resolution digital indicators are available.
• Standard models are equipped with preset function and conventional models deleting preset functions are available.
Specifications
| Order No. | PC-480S3 | PC-485S3 |
| Measuring range | 12.7mm | |
| Resolution | 0.01mm | 0.001mm |
| Error of indication for the total measuring range (MPEE) | 20μm | 3μm |
| Hysteresis(MPEH) | 20μm | 2μm |
| Repeatability(MPER) | 10μm | 2μm |
| Measuring force(MPL) | 1.5N or less | 1.5N or less |
| Functions | Zero set, Counting direction switching, Data output(DIGIMATIC) |
|
| Display of analog bar | ||
| Power supply | Silver oxide cell SR44 | |
| Battery life | Normal use: Approx.20,000hours |
Normal use: Approx.18,000hours |
| Temperature range | Operation: 0 °C –40 °C, Storage: -10 °C –60 °C | |
| Contact point | Shape : R1.5mm(carbide), thread : M2.5 × 0.45mm | |
| Backs | With lug | |
| Mass | 120g | 150g |
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | TM-102 |
