Digital torque wrench - DIW series (120/75/20/15) | CEDAR
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
CEDAR-DIW
For tightening and final check of screws & bolts

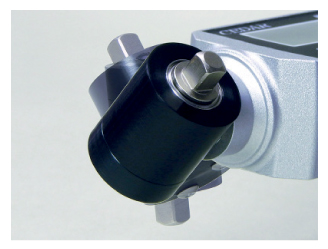

The wrench head part can rotate about 300 degrees! The eyes and the display board can be always parallel and improves operability.
Lightweight and compact with integrated display !
Cordless type and improves operability. Enable to stably measure for long continuous use.Screw tightening counter function is also installed as standard.
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings easily by switch channels even if the tightening term changes.
• The wrench head part can rotate about 300 degrees
• Lightweight and compact with integrated display
• 800 items of Memory data
• USB shape of Data output
• Settable upper limit and lower limit torque
• Notify the set value with buzzer & LED lamp
• Built-in tightening counter
• Rechargeable battery drive
• Auto power off safe operation
• Real time data output
| Order No. | DIW-15 | DIW-20 | DIW-75 | DIW-120 | |
| Accuracy guarantee range | N/m | 0.20 ~ 15 | 0.20 ~ 20 | 0.20 ~ 75 | 2.0 ~ 120 |
| kgf/cm | 2.0 ~ 150 | 2.0 ~ 200 | 2.0 ~ 750 | 20 ~ 1200 | |
| lbf/in | 2.0 ~ 130 | 2.0 ~ 174 | 2.0 ~ 651 | 20 ~ 1040 | |
| Accuracy |
Reading ±0.5% (199 or less digit ±1digit) |
Reading ±0.5% (499 or less digit ±3digit) |
Reading ±0.5% (199 or less digit ±1digit) |
||
| Display | The 4 figures digital display of LCD | ||||
| Measurement direction | CW-CCW (right and left) | ||||
| Measurement Mode | PP | peak to peak The highest value of load is hold-displayed. | |||
| TR | track A display also changes with load change. | ||||
| PD | peak-down Load catches and displays the moment included in descent from a rise. | ||||
| C | Real-time Output Load torque value is outputted every about 1/160 second. | ||||
| A success or failure judgingfunction | High and low value are measurement within the limits, and can be set up. Five-set preservation is possible. | ||||
| The Maximum, the minimum, and the average value | Displays, and output the data number, the maximum, the minimum, and the average value of the measured value. | ||||
| Data memory counts | 800 data | ||||
| Data output | ASCII format (baud rate 19200) | ||||
| Auto clear time | If the set-up time comes, measurement value will be automatically cleared in 0.0 ~ 3.0 seconds (0.5s interval). | ||||
| Setup of count | 1 to 99 count (count in a clockwise direction) | ||||
| Power supply | Ni-MH chargeable battery 1.2Vx4cells 800mAh | ||||
| Charge time / use time | Charge about 5 hour / Continuation about 12-hour use | ||||
| Auto-power-off | After the neglect during 10 minutes | ||||
| Bit / Socket part | □ 6.35 | □ 9.5 | □ 12.7 | ||
| Weight (about) | 430g | 470g | 620g | 830g | |
| Accessories (one piece each) | One-way socket | ||||
| Exclusive charger | |||||
| Result of calibration documentCertification on calibration document / Traceability system figure | |||||
| Option | When outputting data, the USB cable (mini B) is needed. | ||||
| แบรนด์สินค้า | CEDAR |
|---|
