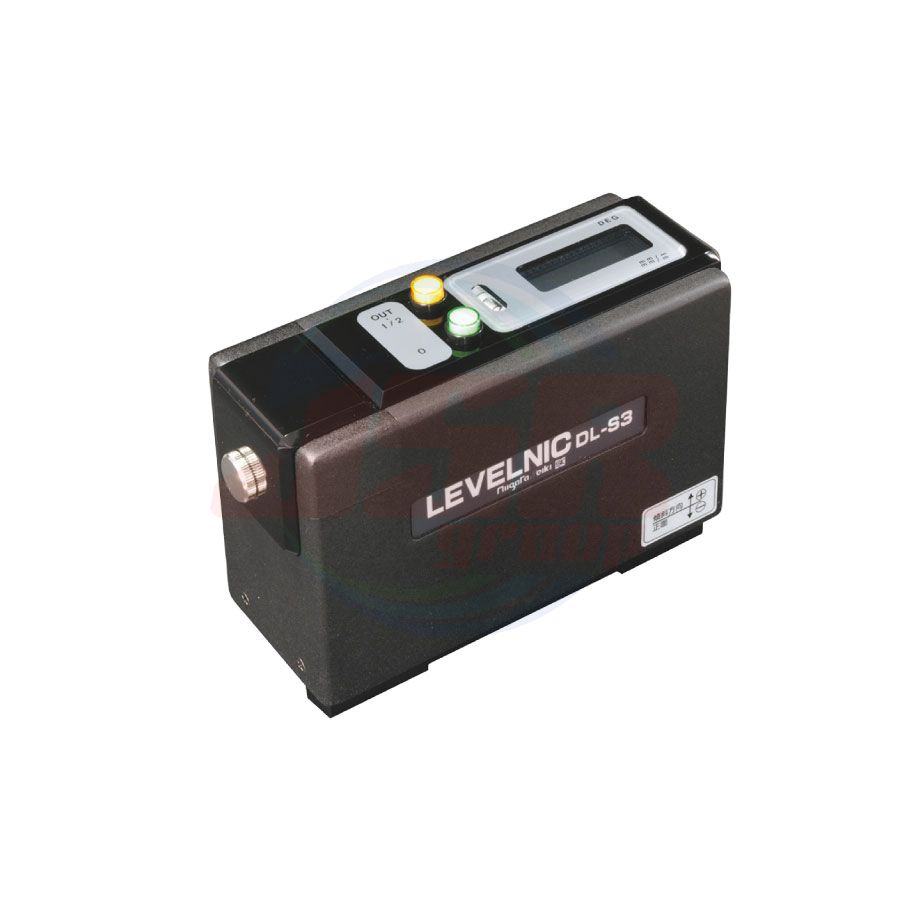

LEVELNIC DL-S3 SERIES
Why not make measurement easier and quicker than with the bubble tube method?
Numerical measurement with a resolution of 0.001 mm/m and no data reading error!
Please feel free to contact us if you have any questions.
■ High precision Digital Level
■ Resolution 0.001mm/m
■ Rechargable Battery（DL-S3C / DL-S3C SUS）
■ Stainless steel base type that not requires rust prevention maintenance（DL-S3 SUS / DL-S3C SUS）
USE
● High precision leveling of machine tools and surface plates.
Straightness, flatness and vertical measurement.
MATERIAL
● Body： Aluminum
FEATURES
● Easy to fix the datum point, divide measurement value into halves with one-touch operation
（with "0" cal. switch, 1/2 cal. switch）
● Measurement value can be output with RS232 signal
● Custom-made base can be attached to the threaded screw holes（ M5 × P0.8） at the bottom base
● DL-S3C is rechargeable type. It can be charged when not in use.
| Order No. | Model No. | Battery Type | Base Material | Weight (kg) |
| 010013 | DL-S3 | 9V dry cell | Cast iron | 2.2 |
| 010030 | DL-S3C | Ni-MH battery | Cast iron | 2.2 |
| 010112 | DL-S3 SUS | 9V dry cell | Stainless steel SUS303 | 2.2 |
| 010113 | DL-S3C SUS | Ni-MH battery | Stainless steel SUS303 | 2.2 |
| 010018 | DL-S3V | 9V dry cell | Cast iron V groove base |
2.2 |
With V groove base - available on request
● Model：DL-S3V
● Tolerance：Within 0.1mm/m（ on condition that the bubble in the sub-bubble tube is within the base line）
● Tolerance Between Flat and V Groove：Within 0.05mm/m
● Angle of V Groove：130°（ for cylindrical objects up to φ 65mm ）
SPECIFICATIONS
| Model Name | DL-S3/DL-S3 SUS | DL-S3C/DL-S3C SUS |
| Measuring Range ※ 1 | ± 5.00mm/m・± 0.286° | |
| Minimum Reading | 0.001mm/m・0.0001°（0 ～± 2mm/m・0 ～± 0.115°） 0.01mm/m・0.001° |
|
| Operating Temperature | 0 〜 40℃ | |
| Accuracy ※ 2 |
Operating temperature 17 〜 23℃ Operating temperature 0 ～ 40℃ |
|
| Repeatability | Within ± 0.005mm/m・± 0.0003° | |
| Output Signal | Conforms to RS-232C | |
| Charging time | − | 12 hrs.（when fully charged） |
| Power Source | 9V dry cell 1pc AC adapter（ DC9V output ・AC100V ～ 240V） included |
8.4V 006P type rechargeable battery 1pc |
| Run Time (continuous use)※3 |
Zinc-carbon cell： Approx. 10 hrs. |
12 hrs. charge： Approx. 9 hrs. |
| Dimensions | L172 × W65 × H129mm（base dimension： L150 × W55mm） | |
| Accessories | ● Shock resistant aluminum case ● Warranty・Instruction manual・Inspection report ● AC adapter（ DC9V output ・AC100V ～ 240V） ● 9V dry cell |
● Shock resistant aluminum case ● Warranty・Instruction manual・Inspection report ● AC adapter（ DC15V output・AC100V ～ 240V） ● 8.4V 006P type rechargeable battery 1pc |
※ 1： For DEG（°）Display mode, "0（ Zero）" before the decimal point is not displayed.
For 0.001mm/m（ 0.0001°） display mode, maximum reading which can be displayed is less than ± 1.999mm/m（± 0.1145°）.
※ 2： % rdg indicates the percentage of displayed value
※ 3： May vary depending upon measurement conditions
