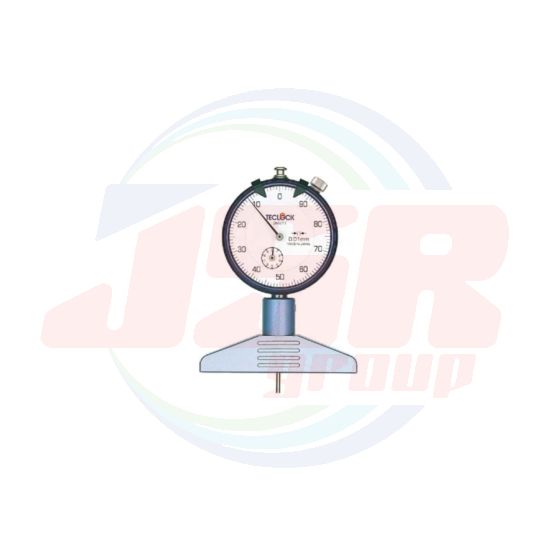

DM-211 | Dial Depth Gauge : Measuring Range 10 mm | TECLOCK
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
DM-211
QTY:
3

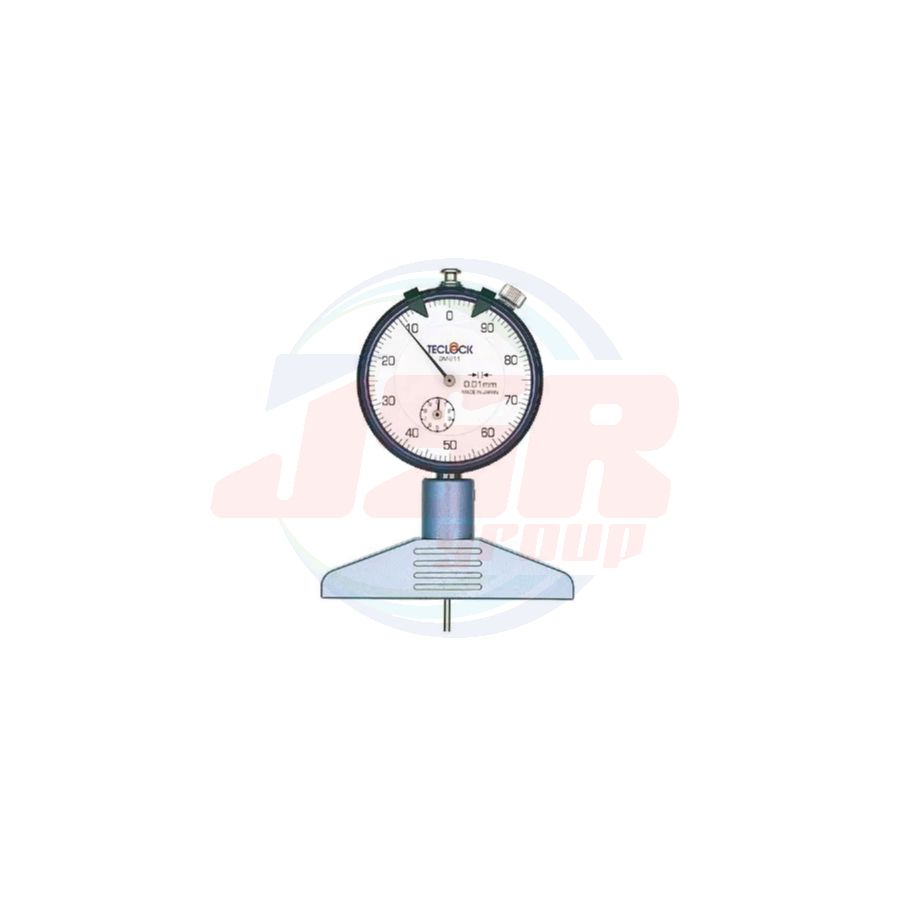

Dial Depth Gauge - φ2 Flat Contact Point
• Dial Depth Gauge can be used to measure depth and steps of work piece and coating thickness.
• 5-240mm range (with the supplied extension rods) are available for wide application.
• Special order is applicable for contact point and base.
• Low measuring force type is also available, which seldom hurts work piece.
• Lifting lever (Option) can be mounted.
Specifications
* Measuring Range : ( ) value is a range by using 5pcs extension rods.
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
Old Model |
| DM-210 | 0.01 | 10 | ±12 | Needle | ZS-523 | 1.4 or less | 240 | DM-204 |
| DM-211 | 0.01 | 10 | ±12 | φ2 Flat | ZS-530 | 1.4 or less | 240 | - |
| DM-213 | 0.01 | 10 | ±12 | φ3.2 Steel Ball | ZS-034 | 1.4 or less | 240 | - |
| DM-214 | 0.01 | 10 (220) | ±12 | φ3.2 Steel Ball | ZS-034 | 2.5 or less | 335 | - |
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | DM-211 |
| Graduation | 0.01 mm |
| Measuring Range | 10 mm |
| Indication Error | ±12 μm |
| Contact Point Form | φ2 Flat |
| Standard Contact Point | ZS-530 |
| Measuring force (N) | 1.4 or less |
| Order No. | Base Form a×b |
Base Hole Diameter |
| DM-210 | 75x16 | 2.5 |
| DM-211 | 75x16 | 2.5 |
| DM-213 | 75x16 | 5.2 |
| DM-214 | 100x16 | 5.2 |
