DM-252 | Dial Depth Gauge (Special) : Measurement for printed circuit board | TECLOCK
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
DM-252
QTY:
3

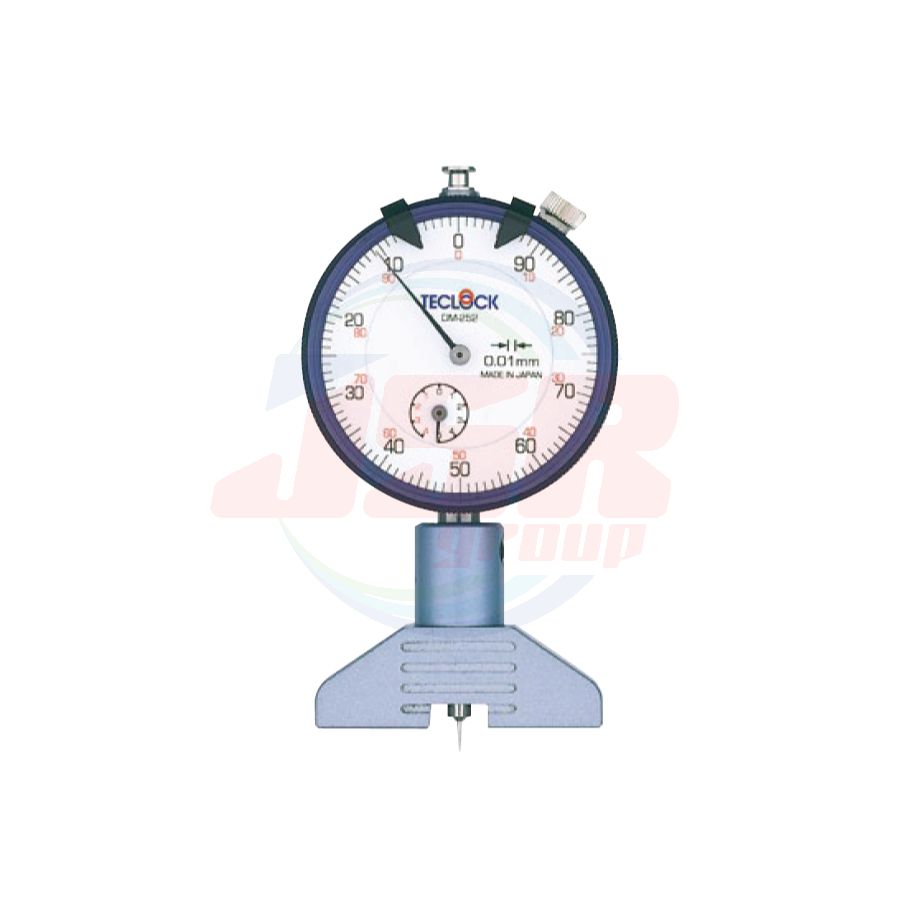

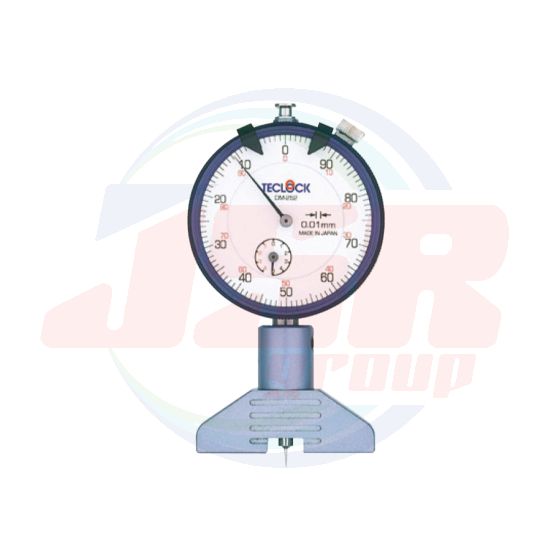

Dial Depth Gauge (Special) - Measurement for printed circuit board
Convex-concave surface can be measured.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
| DM-251 | 0.01 | 5 | ±10 | Special Needle | ZS-106 | 1.4 or less | 165 |
| DM-252 | 0.01 | Concave 5mm Convex 4mm |
±10 | Needle | ZS-595 | 1.4 or less | 195 |
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | DM-252 |
| Graduation | 0.01 mm |
| Measuring Range | Concave 5mm / Convex 4mm |
| Indication Error | ±10 μm |
| Contact Point Form | Needle |
| Standard Contact Point | ZS-595 |
| Measuring force (N) | 1.4 or less |
