DM-295 | Dial Depth Gauge : Measuring Range 50 mm | TECLOCK
THB 0.00
พร้อมส่ง
SKU
DM-295
Dial Depth Gauge - Measuring Range: 50mm

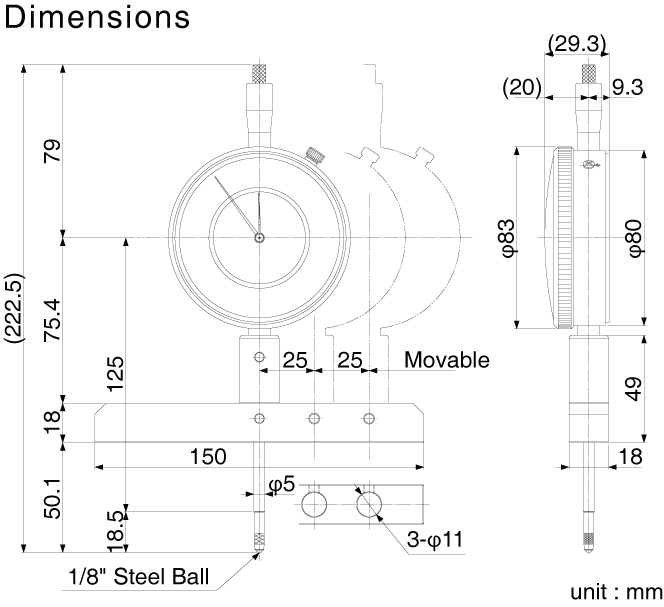

·Base Length 150mm
• A large sized depth gauge measurable 0-50mm (actual dimension) depth directly without any extension rod.
• The dial part is a type movable by inserting it into one of 3 holes.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
Old Model |
| DM-295 | 0.01 | 50 | ±50 | φ3.2 Steel Ball | ZS-116 | 2.5 or less | 750 | - |
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | DM-295 |
| Graduation | 0.01 mm |
| Measuring Range | 50 mm |
| Indication Error | ±50 μm |
| Contact Point Form | φ3.2 Steel Ball |
| Standard Contact Point | ZS-116 |
| Measuring force (N) | 2.5 or less |
