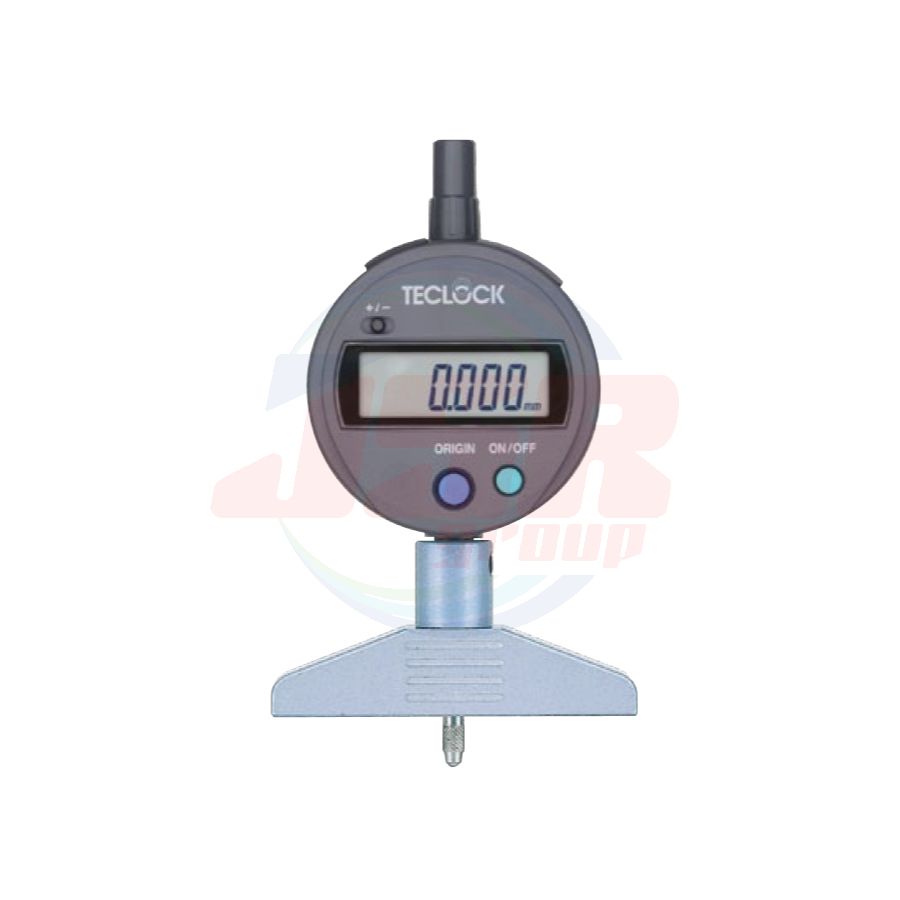

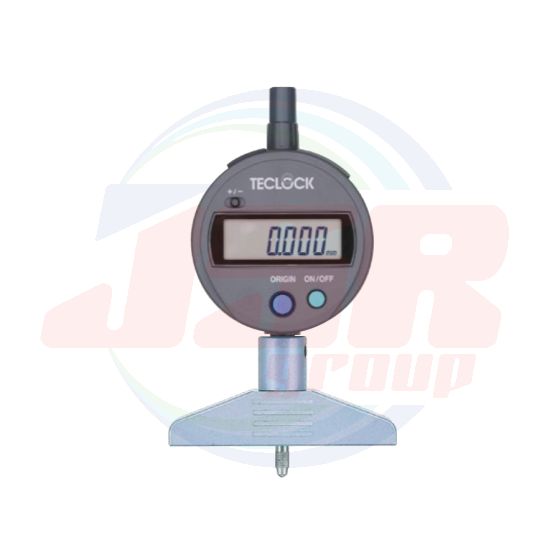

DMD-2130S2 |Conventional Digital Depth Gauge : Resolution : 0.001mm | TECLOCK
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
DMD-2130S2
QTY:
10
Conventional Digital Depth Gauge - Resolution : 0.001mm
Φ3.2 Steel Ball Contact Point
·Measuring Range 12mm
• Digital Exclusive instrument to measure depth and steps of work piece.
• Low cost and conventional model of which preset function is deleted from standard digital depth gauges.
• Operation is equal to standard digital depth gauges, but it can not measure by installing extension rods. In case that measuring range is over 10mm, please use standard digital depth gauges.
• Printing out of measured data and statistics arithmetic operation can be implemented by connecting it to optional Digital mini-printer SD-763P.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
| DMD-2100S2 | 0.001 | 12 | ±5 | Needle | ZS-523 | 2.0 or less | 280 |
| DMD-2110S2 | 0.001 | 12 | ±5 | φ2 Flat | ZS-530 | 2.0 or less | 270 |
| DMD-2130S2 | 0.001 | 12 | ±5 | φ3.2 Steel Ball | ZS-034 | 2.0 or less | 270 |
| DMD-2500S2 | 0.001 | 5 | ±5 | Needle | ZS-518 | 2.0 or less | 205 |
| DMD-2520S2 | 0.001 | Concave 5, Convex 4 | ±5 | Needle | ZS-595 | 2.0 or less | 200 |
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | DMD-2130S2 |
| Graduation | 0.001 mm |
| Measuring Range | 12 mm |
| Indication Error | ±5 μm |
| Contact Point Form | φ3.2 Steel Ball |
| Standard Contact Point | ZS-034 |
| Measuring force (N) | 2.0 or less |
| Order No. | Base Hole Diameter |
L |
| DMD-2100S2 | 2.5 | 75 |
| DMD-2110S2 | 2.5 | 75 |
| DMD-2130S2 | 5.2 | 75 |
| DMD-2500S2 | 2.0 | 50 |
| DMD-2520S2 | 8.0 | 50 |
