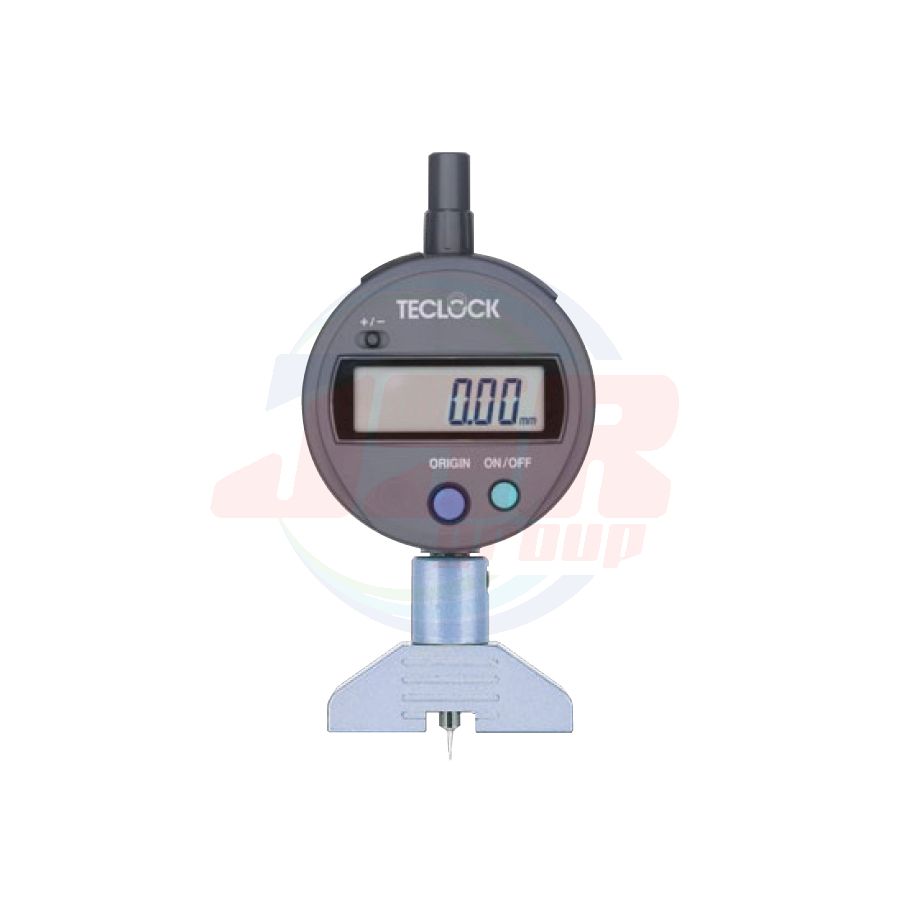

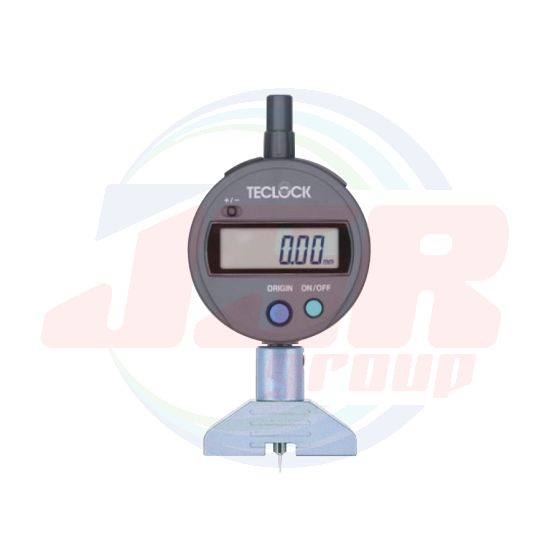

DMD-252S2 |Conventional Digital Depth Gauge : Resolution : 0.01mm | TECLOCK
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
DMD-252S2
QTY:
2
Conventional Digital Depth Gauge - Resolution : 0.01mm
Measurement for Printed Circuit Board
·Measuring Range Concave 5mm / Convex 4mm
• Digital Exclusive instrument to measure depth and steps of work piece.
• Low cost and conventional model of which preset function is deleted from standard digital depth gauges.
• Operation is equal to standard digital depth gauges, but it can not measure by installing extension rods. In case that measuring range is over 10mm, please use standard digital depth gauges.
• Printing out of measured data and statistics arithmetic operation can be implemented by connecting it to optional Digital mini-printer SD-763P.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
| DMD-210S2 | 0.01 | 12 | ±20 | Needle | ZS-523 | 2.0 or less | 280 |
| DMD-211S2 | 0.01 | 12 | ±20 | φ2 Flat | ZS-530 | 2.0 or less | 270 |
| DMD-213S2 | 0.01 | 12 | ±20 | φ3.2 Steel Ball | ZS-034 | 2.0 or less | 270 |
| DMD-250S2 | 0.01 | 5 | ±20 | Needle | ZS-518 | 2.0 or less | 205 |
| DMD-252S2 | 0.01 | Concave 5, Convex 4 | ±20 | Needle | ZS-595 | 2.0 or less | 200 |
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | DMD-252S2 |
| Graduation | 0.01 mm |
| Measuring Range | Concave 5, Convex 4 |
| Indication Error | ±20 μm |
| Contact Point Form | Needle |
| Standard Contact Point | ZS-595 |
| Measuring force (N) | 2.0 or less |
| Order No. | Base Hole Diameter |
L |
| DMD-210S2 | 2.5 | 75 |
| DMD-211S2 | 2.5 | 75 |
| DMD-213S2 | 5.2 | 75 |
| DMD-250S2 | 2.0 | 50 |
| DMD-252S2 | 8.0 | 50 |
