DMD-293A | Standard Digital Depth Gauge : Resolution : 0.01mm | TECLOCK
THB 0.00
พร้อมส่ง
SKU
DMD-293A

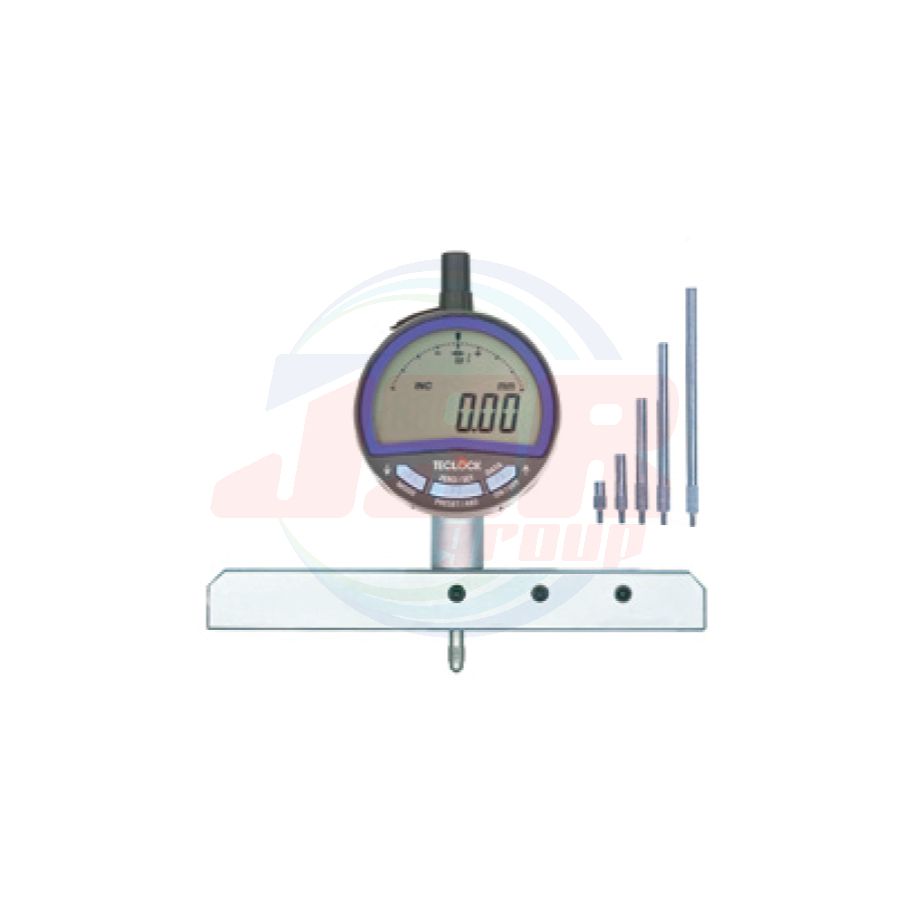

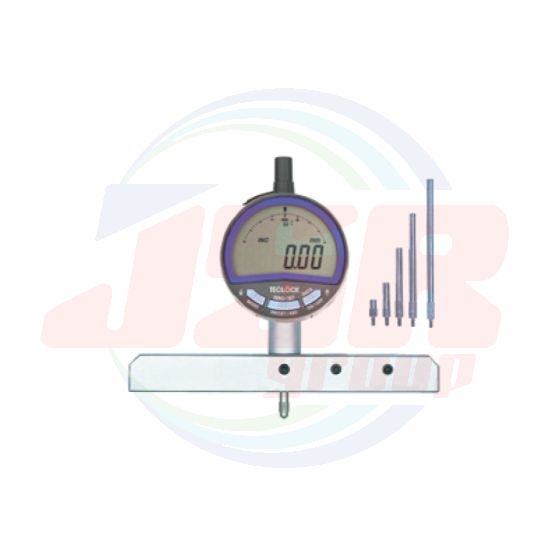

Standard Digital Depth Gauge - Resolution : 0.01mm
Measuring Range 220mm
·With 5-Extension rods
• Digital Depth Gauge can be used for direct measuring depth and steps of work piece.
• Printing out of measured data and statistics arithmetic operation can be implemented by connecting it to optional Digital mini-printer SD-763P.
• Extension rods can be used by Preset function. (Expect DMD-210A, DMD-211A, DMD-240A, DMD-2100A, and DMD-240A).
Specifications
* Measuring Range : ( ) value is a Range by using 5pcs extension rods.
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
| DMD-293A | 0.01 | 12(220) | ±20 | φ3.2 Steel Ball | ZS-034 | 2.3 or less | 545 |
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | DMD-293A |
| Graduation | 0.01 mm |
| Measuring Range | 12(220) mm |
| Indication Error | ±20 μm |
| Contact Point Form | φ3.2 Steel Ball |
| Standard Contact Point | ZS-034 |
| Measuring force (N) | 2.3 or less |
