DN2HC-ATH | Chamfering Tool for Hardened Steels | MOLDINO
ราคาต่ำสุด
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
DN2HC-ATH
QTY:
0

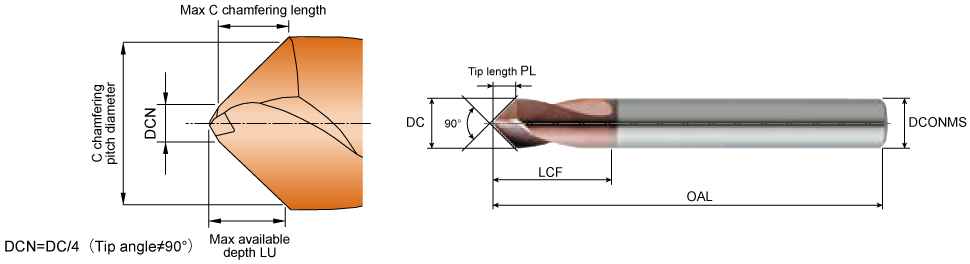

| Item code | Stock | Size (mm) | Usable length (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Tool dia. | Tip dia. | Tip length | Flute length | Overall length | Shank dia. |
Max available depth |
Max C chamfering length |
C chamfering pitch diameter |
||
| DC | DCN | PL | LCF | OAL | DCONMS | LU | ||||
| DN2HC0300-ATH | ● | 3 | 0.7 | 1.3 | 9 | 45 | 3 | 1.2 | 1.1 |
0.75超え 3未満 (More than 0.75 but less than 3) |
| DN2HC0400-ATH | ● | 4 | 0.95 | 1.7 | 12 | 50 | 4 | 1.6 | 1.5 |
1 超え 4未満 (More than 1 but less than 4) |
| DN2HC0600-ATH | ● | 6 | 1.4 | 2.6 | 15 | 66 | 6 | 2.4 | 2.2 |
1.5 超え 6未満 (More than 1.5 but less than 6) |
| DN2HC0800-ATH | ● | 8 | 1.9 | 3.4 | 20 | 74 | 8 | 3.2 | 3 |
2 超え 8未満 (More than 2 but less than 8) |
| DN2HC1000-ATH | ● | 10 | 2.4 | 4.3 | 24 | 84 | 10 | 4.1 | 3.7 |
2.5 超え 10未満 (More than 2.5 but less than 10) |
| DN2HC1200-ATH | ● | 12 | 2.9 | 5.1 | 28 | 95 | 12 | 4.9 | 4.5 |
3 超え 12未満 (More than 3 but less than 12) |
| DN2HC1600-ATH | ● | 16 | 3.9 | 6.8 | 35 | 113 | 16 | 6.6 | 6 |
4 超え 16未満 (More than 4 but less than 16) |
| แบรนด์สินค้า | MOLDINO |
|---|
