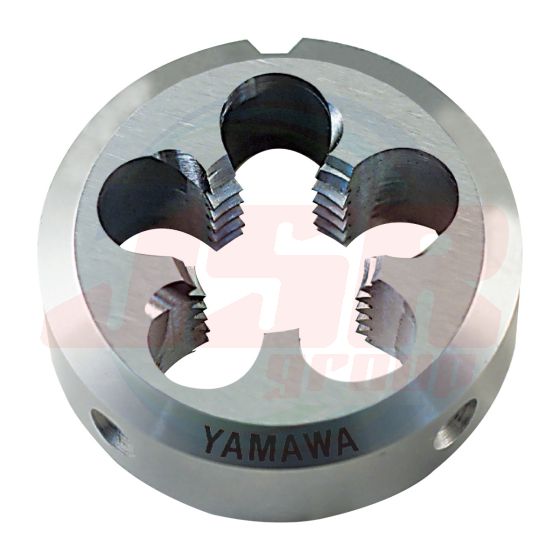

DPO (Metric Threads) | Spiral Pointed HSS Round Dies | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,203.74
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
DPO (Metric Threads)
QTY:
0
Product Features
| ① Chip trouble is reduced by ejecting chips ahead o f d i e s , a c h i e v i n g continuous machining of highly accurate external threads. |
 |
| ② The adoption of new die classes allows you to select a class according to your needs. Note that non-standard classes of products are available as specified distribution items (made to order products). |
|
| ③ Markings on the bevel of the die front face make it easy to determine the machining direction. |  |

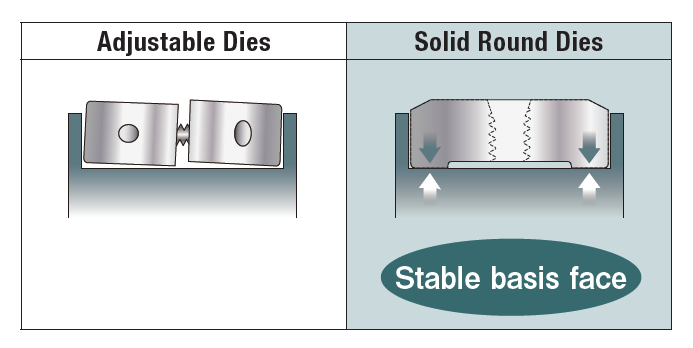

| ④ A recess in the die rear face allows a closer fit of the end face to the holder. | |
| ⑤Long life is achieved by the adoption of high-speed tool steel (HSS). |

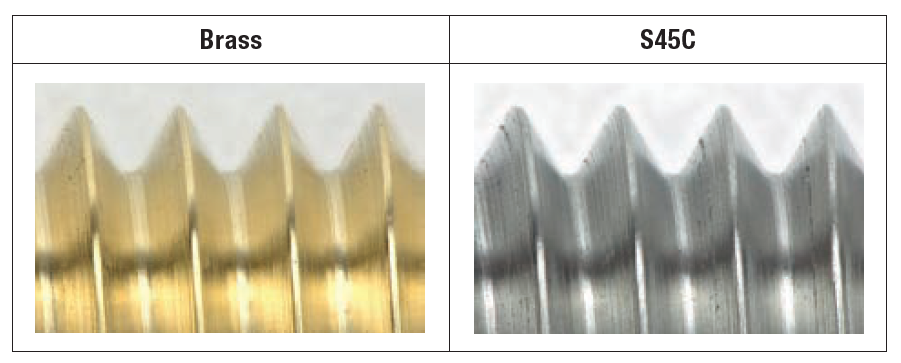

Cutting condition
Die size［DPO S5 M6×1(20)］
| Work Material | Brass・S45C |  |
| Cutting Speed | Brass 5m/min・S45C 2m/min | |
| Machine | Vertical machining center with synchronous feed | |
| Cutting Fluid | Water soluble cutting fluid |
Specification

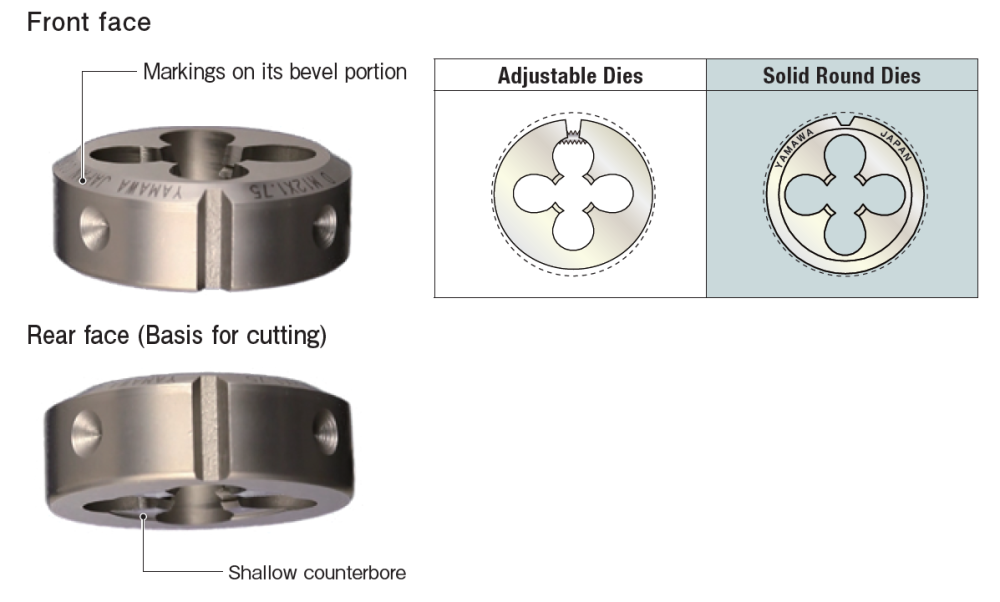

Front face

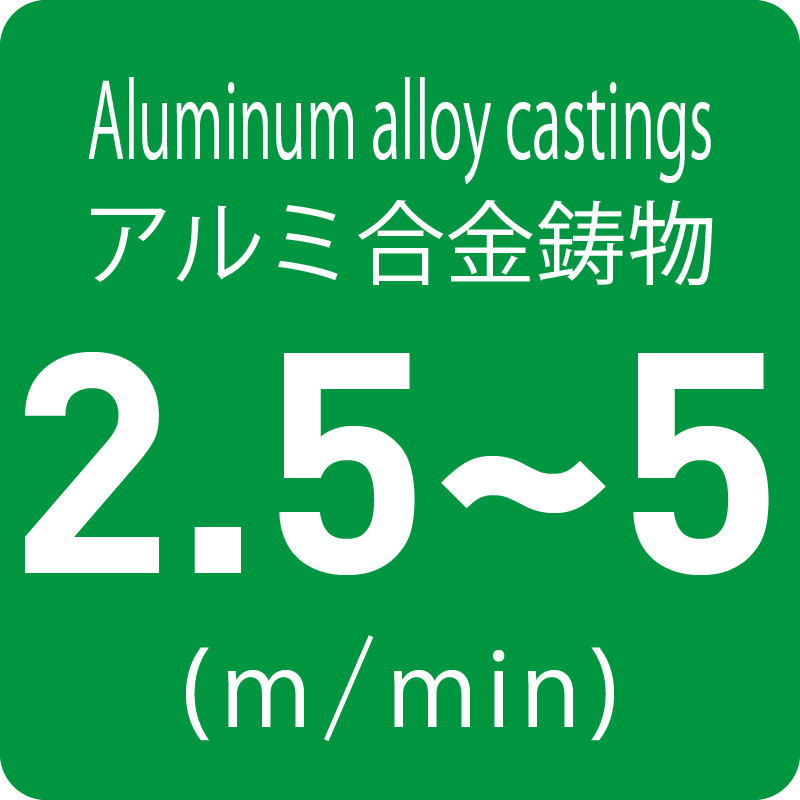

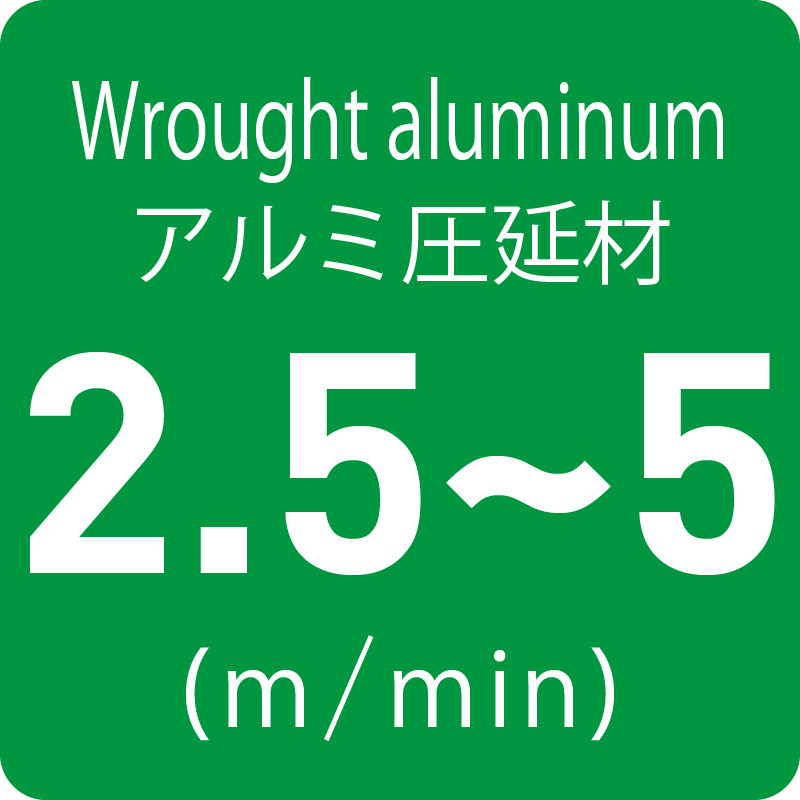

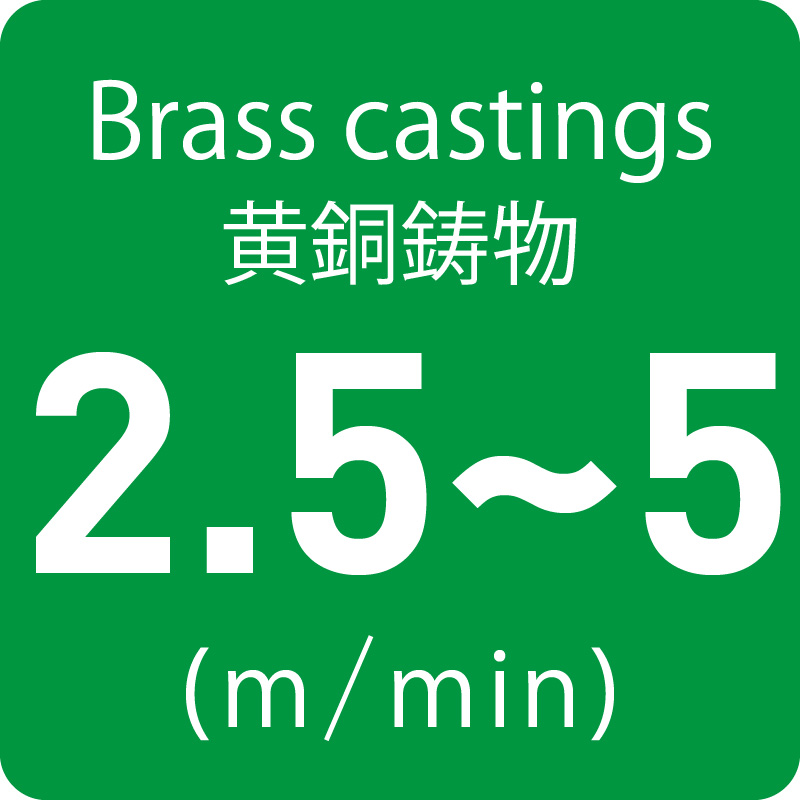

Tapping Speeds depending on Materials
Oversize
Segment：30
|
Size |
Class |
Code |
D (mm) |
T (mm) |
Clearance holes |

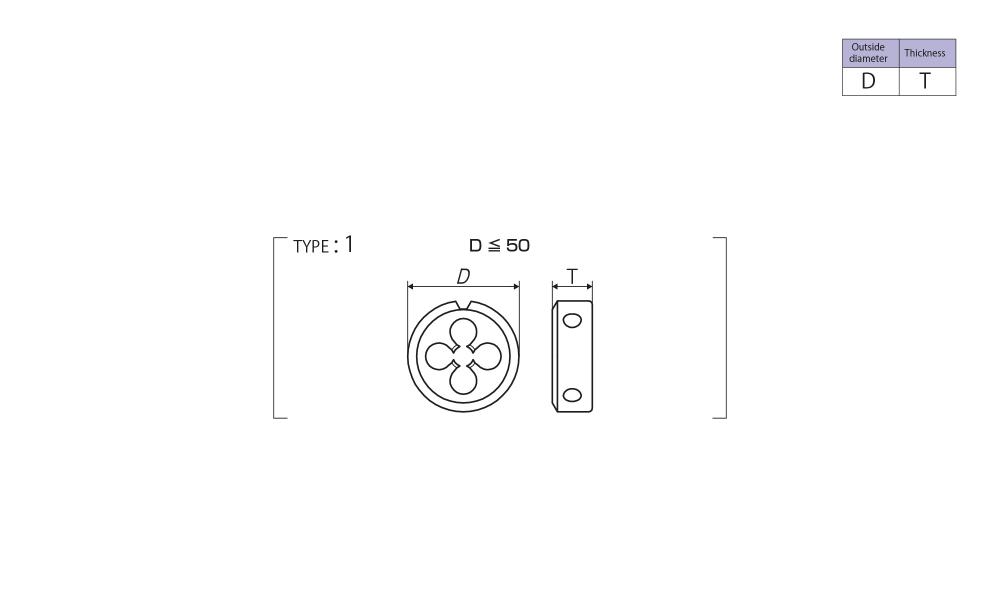

TYPE |
|
For Metric Threads |
||||||
|
M2×0.4 |
S5 |
PYE2.0ETNEBA |
20 |
7 |
3 |
1 |
|
M2×0.4 |
S5 |
PYG2.0ETNEBA |
25 |
9 |
3 |
1 |
|
M2×0.4 |
S2 |
PYE2.0EQNEBA |
20 |
7 |
3 |
1 |
|
M2×0.4 |
S2 |
PYG2.0EQNEBA |
25 |
9 |
3 |
1 |
|
M2×0.25 |
S4 |
PYE2.0BSNEBA |
20 |
7 |
3 |
1 |
|
M2×0.25 |
S2 |
PYE2.0BQNEBA |
20 |
7 |
3 |
1 |
|
M2.2×0.45 |
S6 |
PYE2.2FUNEBA |
20 |
7 |
3 |
1 |
|
M2.2×0.45 |
S2 |
PYE2.2FQNEBA |
20 |
7 |
3 |
1 |
|
M2.3×0.4 |
S5 |
PYE2.3ETNEBA |
20 |
7 |
3 |
1 |
|
M2.3×0.4 |
S2 |
PYE2.3EQNEBA |
20 |
7 |
3 |
1 |
|
M2.5×0.45 |
S6 |
PYE2.5FUNEBA |
20 |
7 |
3 |
1 |
|
M2.5×0.45 |
S6 |
PYG2.5FUNEBA |
25 |
9 |
3 |
1 |
|
M2.5×0.45 |
S2 |
PYE2.5FQNEBA |
20 |
7 |
3 |
1 |
|
M2.5×0.45 |
S2 |
PYG2.5FQNEBA |
25 |
9 |
3 |
1 |
|
M2.5×0.35 |
S5 |
PYE2.5DTNEBA |
20 |
7 |
3 |
1 |
|
M2.5×0.35 |
S2 |
PYE2.5DQNEBA |
20 |
7 |
3 |
1 |
|
M2.6×0.45 |
S6 |
PYE2.6FUNEBA |
20 |
7 |
3 |
1 |
|
M2.6×0.45 |
S6 |
PYG2.6FUNEBA |
25 |
9 |
3 |
1 |
|
M2.6×0.45 |
S2 |
PYE2.6FQNEBA |
20 |
7 |
3 |
1 |
|
M2.6×0.45 |
S2 |
PYG2.6FQNEBA |
25 |
9 |
3 |
1 |
|
M3×0.5 |
S6 |
PYE3.0GUNEBA |
20 |
7 |
3 |
1 |
|
M3×0.5 |
S6 |
PYG3.0GUNEBA |
25 |
9 |
3 |
1 |
|
M3×0.5 |
S2 |
PYE3.0GQNEBA |
20 |
7 |
3 |
1 |
|
M3×0.5 |
S2 |
PYG3.0GQNEBA |
25 |
9 |
3 |
1 |
|
M3×0.35 |
S5 |
PYE3.0DTNEBA |
20 |
7 |
3 |
1 |
|
M3×0.35 |
S5 |
PYG3.0DTNEBA |
25 |
9 |
3 |
1 |
|
M3×0.35 |
S2 |
PYE3.0DQNEBA |
20 |
7 |
3 |
1 |
|
M3×0.35 |
S2 |
PYG3.0DQNEBA |
25 |
9 |
3 |
1 |
|
M3.5×0.6 |
S4 |
PYE3.5HSNEBA |
20 |
7 |
3 |
1 |
|
M3.5×0.6 |
S4 |
PYG3.5HSNEBA |
25 |
9 |
3 |
1 |
|
M3.5×0.6 |
S2 |
PYE3.5HQNEBA |
20 |
7 |
3 |
1 |
|
M3.5×0.6 |
S2 |
PYG3.5HQNEBA |
25 |
9 |
3 |
1 |
|
M3.5×0.35 |
S5 |
PYE3.5DTNEBA |
20 |
7 |
3 |
1 |
|
M3.5×0.35 |
S2 |
PYE3.5DQNEBA |
20 |
7 |
3 |
1 |
|
M4×0.7 |
S4 |
PYE4.0ISNEBA |
20 |
7 |
3 |
1 |
|
M4×0.7 |
S4 |
PYG4.0ISNEBA |
25 |
9 |
3 |
1 |
|
M4×0.7 |
S4 |
PYJ4.0ISNEBA |
38 |
13 |
4 |
1 |
|
M4×0.7 |
S2 |
PYE4.0IQNEBA |
20 |
7 |
3 |
1 |
|
M4×0.7 |
S2 |
PYG4.0IQNEBA |
25 |
9 |
3 |
1 |
|
M4×0.7 |
S2 |
PYJ4.0IQNEBA |
38 |
13 |
4 |
1 |
|
M4×0.5 |
S6 |
PYE4.0GUNEBA |
20 |
7 |
3 |
1 |
|
M4×0.5 |
S6 |
PYG4.0GUNEBA |
25 |
9 |
3 |
1 |
|
M4×0.5 |
S2 |
PYE4.0GQNEBA |
20 |
7 |
3 |
1 |
|
M4×0.5 |
S2 |
PYG4.0GQNEBA |
25 |
9 |
3 |
1 |
|
M4.5×0.75 |
S4 |
PYE4.5JSNEBA |
20 |
7 |
4 |
1 |
|
M4.5×0.75 |
S2 |
PYE4.5JQNEBA |
20 |
7 |
4 |
1 |
|
M4.5×0.5 |
S6 |
PYE4.5GUNEBA |
20 |
7 |
4 |
1 |
|
M4.5×0.5 |
S2 |
PYE4.5GQNEBA |
20 |
7 |
4 |
1 |
|
M5×0.8 |
S4 |
PYE5.0KSNEBA |
20 |
7 |
4 |
1 |
|
M5×0.8 |
S4 |
PYG5.0KSNEBA |
25 |
9 |
3 |
1 |
|
M5×0.8 |
S4 |
PYJ5.0KSNEBA |
38 |
13 |
4 |
1 |
|
M5×0.8 |
S2 |
PYE5.0KQNEBA |
20 |
7 |
4 |
1 |
|
M5×0.8 |
S2 |
PYG5.0KQNEBA |
25 |
9 |
3 |
1 |
|
M5×0.8 |
S2 |
PYJ5.0KQNEBA |
38 |
13 |
4 |
1 |
|
M5×0.5 |
S6 |
PYE5.0GUNEBA |
20 |
7 |
4 |
1 |
|
M5×0.5 |
S6 |
PYG5.0GUNEBA |
25 |
9 |
3 |
1 |
|
M5×0.5 |
S2 |
PYE5.0GQNEBA |
20 |
7 |
4 |
1 |
|
M5×0.5 |
S2 |
PYG5.0GQNEBA |
25 |
9 |
3 |
1 |
|
M5.5×0.5 |
S6 |
PYE5.5GUNEBA |
20 |
7 |
4 |
1 |
|
M5.5×0.5 |
S2 |
PYE5.5GQNEBA |
20 |
7 |
4 |
1 |
|
M6×1 |
S5 |
PYE6.0MTNEBA |
20 |
7 |
4 |
1 |
|
M6×1 |
S5 |
PYG6.0MTNEBA |
25 |
9 |
4 |
1 |
|
M6×1 |
S5 |
PYJ6.0MTNEBA |
38 |
13 |
4 |
1 |
|
M6×1 |
S2 |
PYE6.0MQNEBA |
20 |
7 |
4 |
1 |
|
M6×1 |
S2 |
PYG6.0MQNEBA |
25 |
9 |
4 |
1 |
|
M6×1 |
S2 |
PYJ6.0MQNEBA |
38 |
13 |
4 |
1 |
|
M6×0.75 |
S4 |
PYE6.0JSNEBA |
20 |
7 |
4 |
1 |
|
M6×0.75 |
S4 |
PYG6.0JSNEBA |
25 |
9 |
4 |
1 |
|
M6×0.75 |
S4 |
PYJ6.0JSNEBA |
38 |
13 |
4 |
1 |
|
M6×0.75 |
S2 |
PYE6.0JQNEBA |
20 |
7 |
4 |
1 |
|
M6×0.75 |
S2 |
PYG6.0JQNEBA |
25 |
9 |
4 |
1 |
|
M6×0.75 |
S2 |
PYJ6.0JQNEBA |
38 |
13 |
4 |
1 |
|
M6×0.5 |
S6 |
PYE6.0GUNEBA |
20 |
7 |
4 |
1 |
|
M6×0.5 |
S6 |
PYG6.0GUNEBA |
25 |
9 |
4 |
1 |
|
M6×0.5 |
S2 |
PYE6.0GQNEBA |
20 |
7 |
4 |
1 |
|
M6×0.5 |
S2 |
PYG6.0GQNEBA |
25 |
9 |
4 |
1 |
|
M7×1 |
S5 |
PYG7.0MTNEBA |
25 |
9 |
4 |
1 |
|
M7×1 |
S2 |
PYG7.0MQNEBA |
25 |
9 |
4 |
1 |
|
M7×0.75 |
S4 |
PYG7.0JSNEBA |
25 |
9 |
4 |
1 |
|
M7×0.75 |
S2 |
PYG7.0JQNEBA |
25 |
9 |
4 |
1 |
|
M8×1.25 |
S5 |
PYG8.0NTNEBA |
25 |
9 |
4 |
1 |
|
M8×1.25 |
S5 |
PYJ8.0NTNEBA |
38 |
13 |
4 |
1 |
|
M8×1.25 |
S5 |
PYM8.0NTNEBA |
50 |
16 |
4 |
1 |
|
M8×1.25 |
S2 |
PYG8.0NQNEBA |
25 |
9 |
4 |
1 |
|
M8×1.25 |
S2 |
PYJ8.0NQNEBA |
38 |
13 |
4 |
1 |
|
M8×1.25 |
S2 |
PYM8.0NQNEBA |
50 |
16 |
4 |
1 |
|
M8×1 |
S5 |
PYG8.0MTNEBA |
25 |
9 |
4 |
1 |
|
M8×1 |
S5 |
PYJ8.0MTNEBA |
38 |
13 |
4 |
1 |
|
M8×1 |
S2 |
PYG8.0MQNEBA |
25 |
9 |
4 |
1 |
|
M8×1 |
S2 |
PYJ8.0MQNEBA |
38 |
13 |
4 |
1 |
|
M8×0.75 |
S4 |
PYG8.0JSNEBA |
25 |
9 |
4 |
1 |
|
M8×0.75 |
S2 |
PYG8.0JQNEBA |
25 |
9 |
4 |
1 |
|
M8×0.5 |
S6 |
PYG8.0GUNEBA |
25 |
9 |
4 |
1 |
|
M8×0.5 |
S2 |
PYG8.0GQNEBA |
25 |
9 |
4 |
1 |
|
M9×1.25 |
S5 |
PYG9.0NTNEBA |
25 |
9 |
5 |
1 |
|
M9×1.25 |
S2 |
PYG9.0NQNEBA |
25 |
9 |
5 |
1 |
|
M9×1 |
S5 |
PYG9.0MTNEBA |
25 |
9 |
5 |
1 |
|
M9×1 |
S2 |
PYG9.0MQNEBA |
25 |
9 |
5 |
1 |
|
M9×0.75 |
S4 |
PYG9.0JSNEBA |
25 |
9 |
5 |
1 |
|
M9×0.75 |
S2 |
PYG9.0JQNEBA |
25 |
9 |
5 |
1 |
|
M10×1.5 |
S4 |
PYG010OSNEBA |
25 |
9 |
5 |
1 |
|
M10×1.5 |
S4 |
PYJ010OSNEBA |
38 |
13 |
4 |
1 |
|
M10×1.5 |
S4 |
PYM010OSNEBA |
50 |
16 |
4 |
1 |
|
M10×1.5 |
S2 |
PYG010OQNEBA |
25 |
9 |
5 |
1 |
|
M10×1.5 |
S2 |
PYJ010OQNEBA |
38 |
13 |
4 |
1 |
|
M10×1.5 |
S2 |
PYM010OQNEBA |
50 |
16 |
4 |
1 |
|
M10×1.25 |
S5 |
PYG010NTNEBA |
25 |
9 |
5 |
1 |
|
M10×1.25 |
S5 |
PYJ010NTNEBA |
38 |
13 |
4 |
1 |
|
M10×1.25 |
S2 |
PYG010NQNEBA |
25 |
9 |
5 |
1 |
|
M10×1.25 |
S2 |
PYJ010NQNEBA |
38 |
13 |
4 |
1 |
|
M10×1 |
S5 |
PYG010MTNEBA |
25 |
9 |
5 |
1 |
|
M10×1 |
S5 |
PYJ010MTNEBA |
38 |
13 |
4 |
1 |
|
M10×1 |
S2 |
PYG010MQNEBA |
25 |
9 |
5 |
1 |
|
M10×1 |
S2 |
PYJ010MQNEBA |
38 |
13 |
4 |
1 |
|
M10×0.75 |
S4 |
PYG010JSNEBA |
25 |
9 |
5 |
1 |
|
M10×0.75 |
S4 |
PYJ010JSNEBA |
38 |
13 |
4 |
1 |
|
M10×0.75 |
S2 |
PYG010JQNEBA |
25 |
9 |
5 |
1 |
|
M10×0.75 |
S2 |
PYJ010JQNEBA |
38 |
13 |
4 |
1 |
|
M10×0.5 |
S6 |
PYG010GUNEBA |
25 |
9 |
5 |
1 |
|
M10×0.5 |
S2 |
PYG010GQNEBA |
25 |
9 |
5 |
1 |
|
M11×1.5 |
S4 |
PYJ011OSNEBA |
38 |
13 |
4 |
1 |
|
M11×1.5 |
S2 |
PYJ011OQNEBA |
38 |
13 |
4 |
1 |
|
M11×1 |
S5 |
PYJ011MTNEBA |
38 |
13 |
4 |
1 |
|
M11×1 |
S2 |
PYJ011MQNEBA |
38 |
13 |
4 |
1 |
|
M11×0.75 |
S4 |
PYJ011JSNEBA |
38 |
13 |
4 |
1 |
|
M11×0.75 |
S2 |
PYJ011JQNEBA |
38 |
13 |
4 |
1 |
|
M12×1.75 |
S4 |
PYJ012PSNEBA |
38 |
13 |
4 |
1 |
|
M12×1.75 |
S4 |
PYM012PSNEBA |
50 |
16 |
4 |
1 |
|
M12×1.75 |
S2 |
PYJ012PQNEBA |
38 |
13 |
4 |
1 |
|
M12×1.75 |
S2 |
PYM012PQNEBA |
50 |
16 |
4 |
1 |
|
M12×1.5 |
S4 |
PYJ012OSNEBA |
38 |
13 |
4 |
1 |
|
M12×1.5 |
S2 |
PYJ012OQNEBA |
38 |
13 |
4 |
1 |
|
M12×1.25 |
S6 |
PYJ012NUNEBA |
38 |
13 |
4 |
1 |
|
M12×1.25 |
S2 |
PYJ012NQNEBA |
38 |
13 |
4 |
1 |
|
M12×1 |
S5 |
PYJ012MTNEBA |
38 |
13 |
4 |
1 |
|
M12×1 |
S2 |
PYJ012MQNEBA |
38 |
13 |
4 |
1 |
|
M12×0.75 |
S5 |
PYJ012JTNEBA |
38 |
13 |
4 |
1 |
|
M12×0.75 |
S2 |
PYJ012JQNEBA |
38 |
13 |
4 |
1 |
|
M12×0.5 |
S6 |
PYJ012GUNEBA |
38 |
13 |
4 |
1 |
|
M12×0.5 |
S2 |
PYJ012GQNEBA |
38 |
13 |
4 |
1 |
|
M14×2 |
S4 |
PYJ014QSNEBA |
38 |
13 |
5 |
1 |
|
M14×2 |
S4 |
PYM014QSNEBA |
50 |
16 |
4 |
1 |
|
M14×2 |
S2 |
PYJ014QQNEBA |
38 |
13 |
5 |
1 |
|
M14×2 |
S2 |
PYM014QQNEBA |
50 |
16 |
4 |
1 |
|
M14×1.5 |
S4 |
PYJ014OSNEBA |
38 |
13 |
5 |
1 |
|
M14×1.5 |
S2 |
PYJ014OQNEBA |
38 |
13 |
5 |
1 |
|
M14×1.25 |
S6 |
PYJ014NUNEBA |
38 |
13 |
5 |
1 |
|
M14×1.25 |
S2 |
PYJ014NQNEBA |
38 |
13 |
5 |
1 |
|
M14×1 |
S5 |
PYJ014MTNEBA |
38 |
13 |
5 |
1 |
|
M14×1 |
S2 |
PYJ014MQNEBA |
38 |
13 |
5 |
1 |
|
M15×1.5 |
S4 |
PYJ015OSNEBA |
38 |
13 |
5 |
1 |
|
M15×1.5 |
S2 |
PYJ015OQNEBA |
38 |
13 |
5 |
1 |
|
M15×1 |
S5 |
PYJ015MTNEBA |
38 |
13 |
5 |
1 |
|
M15×1 |
S2 |
PYJ015MQNEBA |
38 |
13 |
5 |
1 |
|
M16×2 |
S4 |
PYJ016QSNEBA |
38 |
13 |
5 |
1 |
|
M16×2 |
S4 |
PYM016QSNEBA |
50 |
16 |
4 |
1 |
|
M16×2 |
S2 |
PYJ016QQNEBA |
38 |
13 |
5 |
1 |
|
M16×2 |
S2 |
PYM016QQNEBA |
50 |
16 |
4 |
1 |
|
M16×1.5 |
S4 |
PYJ016OSNEBA |
38 |
13 |
5 |
1 |
|
M16×1.5 |
S4 |
PYM016OSNEBA |
50 |
16 |
4 |
1 |
|
M16×1.5 |
S2 |
PYJ016OQNEBA |
38 |
13 |
5 |
1 |
|
M16×1.5 |
S2 |
PYM016OQNEBA |
50 |
16 |
4 |
1 |
|
M16×1 |
S5 |
PYJ016MTNEBA |
38 |
13 |
5 |
1 |
|
M16×1 |
S5 |
PYM016MTNEBA |
50 |
16 |
4 |
1 |
|
M16×1 |
S2 |
PYJ016MQNEBA |
38 |
13 |
5 |
1 |
|
M16×1 |
S2 |
PYM016MQNEBA |
50 |
16 |
4 |
1 |
|
M17×1.5 |
S4 |
PYM017OSNEBA |
50 |
16 |
5 |
1 |
|
M17×1.5 |
S2 |
PYM017OQNEBA |
50 |
16 |
5 |
1 |
|
M17×1 |
S5 |
PYM017MTNEBA |
50 |
16 |
5 |
1 |
|
M17×1 |
S2 |
PYM017MQNEBA |
50 |
16 |
5 |
1 |
|
M18×2.5 |
S5 |
PYM018RTNEBA |
50 |
16 |
5 |
1 |
|
M18×2.5 |
S2 |
PYM018RQNEBA |
50 |
16 |
5 |
1 |
|
M18×2 |
S4 |
PYM018QSNEBA |
50 |
16 |
5 |
1 |
|
M18×2 |
S2 |
PYM018QQNEBA |
50 |
16 |
5 |
1 |
|
M18×1.5 |
S4 |
PYM018OSNEBA |
50 |
16 |
5 |
1 |
|
M18×1.5 |
S2 |
PYM018OQNEBA |
50 |
16 |
5 |
1 |
|
M18×1 |
S5 |
PYM018MTNEBA |
50 |
16 |
5 |
1 |
|
M18×1 |
S2 |
PYM018MQNEBA |
50 |
16 |
5 |
1 |
|
M20×2.5 |
S5 |
PYM020RTNEBA |
50 |
16 |
5 |
1 |
|
M20×2.5 |
S2 |
PYM020RQNEBA |
50 |
16 |
5 |
1 |
|
M20×2 |
S4 |
PYM020QSNEBA |
50 |
16 |
5 |
1 |
|
M20×2 |
S2 |
PYM020QQNEBA |
50 |
16 |
5 |
1 |
|
M20×1.5 |
S4 |
PYM020OSNEBA |
50 |
16 |
5 |
1 |
|
M20×1.5 |
S2 |
PYM020OQNEBA |
50 |
16 |
5 |
1 |
|
M20×1 |
S5 |
PYM020MTNEBA |
50 |
16 |
5 |
1 |
|
M20×1 |
S2 |
PYM020MQNEBA |
50 |
16 |
5 |
1 |
|
M22×2.5 |
S5 |
PYM022RTNEBA |
50 |
16 |
6 |
1 |
|
M22×2.5 |
S2 |
PYM022RQNEBA |
50 |
16 |
6 |
1 |
|
M22×2 |
S4 |
PYM022QSNEBA |
50 |
16 |
6 |
1 |
|
M22×2 |
S2 |
PYM022QQNEBA |
50 |
16 |
6 |
1 |
|
M22×1.5 |
S4 |
PYM022OSNEBA |
50 |
16 |
6 |
1 |
|
M22×1.5 |
S2 |
PYM022OQNEBA |
50 |
16 |
6 |
1 |
|
M22×1.25 |
S4 |
PYM022NSNEBA |
50 |
16 |
6 |
1 |
|
M22×1.25 |
S2 |
PYM022NQNEBA |
50 |
16 |
6 |
1 |
|
M22×1 |
S5 |
PYM022MTNEBA |
50 |
16 |
6 |
1 |
|
M22×1 |
S2 |
PYM022MQNEBA |
50 |
16 |
6 |
1 |
|
M24×3 |
S5 |
PYM024STNEBA |
50 |
16 |
6 |
1 |
|
M24×3 |
S2 |
PYM024SQNEBA |
50 |
16 |
6 |
1 |
|
M24×2 |
S5 |
PYM024QTNEBA |
50 |
16 |
6 |
1 |
|
M24×2 |
S2 |
PYM024QQNEBA |
50 |
16 |
6 |
1 |
|
M24×1.5 |
S4 |
PYM024OSNEBA |
50 |
16 |
6 |
1 |
|
M24×1.5 |
S2 |
PYM024OQNEBA |
50 |
16 |
6 |
1 |
|
M24×1 |
S6 |
PYM024MUNEBA |
50 |
16 |
6 |
1 |
|
M24×1 |
S2 |
PYM024MQNEBA |
50 |
16 |
6 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
เขียนรีวิวสินค้าของคุณเอง
