DRILLS SET D179 | SUTTONTOOLS

เป็นคนแรกที่รีวิวสินค้านี้

ราคาต่ำสุด THB 0.00

พร้อมส่ง

SKU

SUTTON-SETD179

Size Ref.

QTY

• Various combinations available

• Metric and Imperial

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

• Various combinations available • Metric and Imperial Catalogue Code				D101	D102	D103	D109	D179
Material				HSS	HSS	HSS	HSS Co	HSS
Surface Finish				Brt	Blu	TiN	Colour Temp	Brt
Sutton Designation				N	N	N	Tough Materials	N
Geometry				R30	R30	R30	R25	R30
Point Type				118˚ Standard	118˚ Standard	118˚ Form A	135˚ Form C	118˚ Form C
Shank Tolerance				-	-	-	-	-
Size Ref.	d 1(h8)	Case	Pieces	Order No.	Order No.	Order No.	Order No.	Order No.
	Metric (DIN 338)
SM1	1.5 – 6.5mm x 0.5mm rises + 3.2, 4.8mm	ABS	13	D101 SM1	D102 SM1

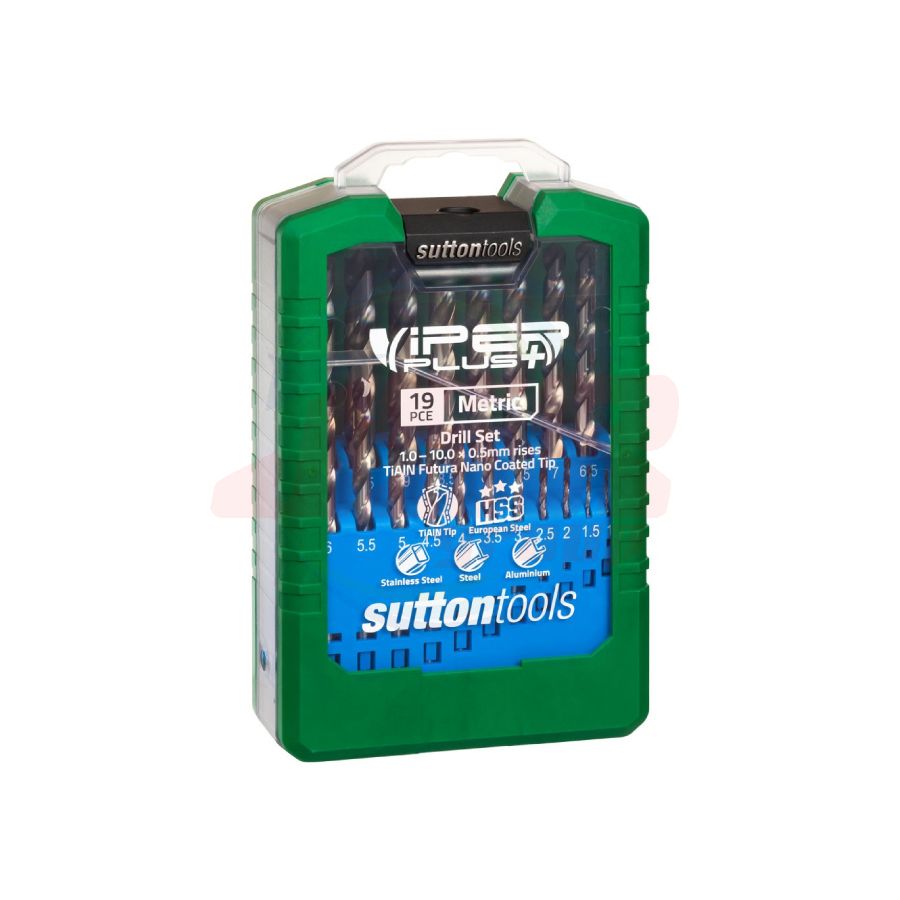

SM2	1.0 – 10.0mm x 0.5mm	ABS	19	D101 SM2	D102 SM2			D179 SM2

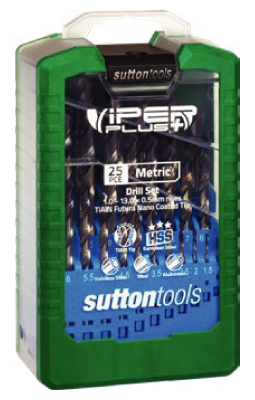

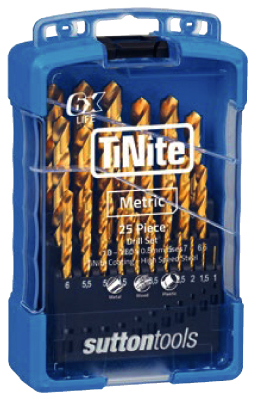

SM3	1.0 – 13.0mm x 0.5mm	ABS	25	D101 SM3	D102 SM3	D103 SM3		D179 SM3
SM8	1.0 – 3.0mm x 0.25mm3.5 – 13.0mm x 0.5mm	Plastic	29		D102 SM8
MTLSM2	1.0 – 10.0mm x 0.5mm	Metal	19	D101 MTLSM2
MTLSM3	1.0 – 13.0mm x 0.5mm	Metal	25	D101 MTLSM3
SM30	1.0 – 5.9mm x 0.1mm	Metal	50		D102 SM30
SM41	6.0 – 10.0mm x 0.1mm	Metal	41		D102 SM41
SM99	1.0 – 10.0mm x 0.1mm (+10.5, 10.9, 11.0, 11.5, 11.9, 12.0, 12.5, 12.9, 13.0mm)	Metal	100		D102 SM99
SM101	1.0 – 10.0mm x 0.5mm (Plus BONUS 25ml Venom Cutting Paste)	Plastic	101		D102 SM101
	Drill Stands (Discount Group Z0204)
SM7	1.0 – 3.0mm x 0.25mm3.5 – 13.0mm x 0.5mm	Metal	1	D101 SM7
	Imperial (ANSI B94-11)

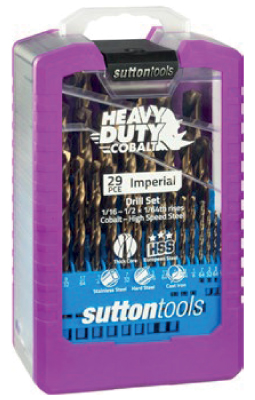

S2	1/16 – 3/8 x 1/64	ABS	21	D101 S2	D102 S2		D109 S2	D179 S2
S3	1/16 – 1/2 x 1/64	ABS	29	D101 S3	D102 S3	D103 S3	D109 S3	D179 S3
S8	1/16 – 1/2 x 64ths	Plastic	29		D102 S8
MTLS2	1/16 – 3/8 x 64ths	Metal	21	D101 MTLS2
MTLS3	1/16 – 1/2 x 64ths	Metal	29	D101 MTLS3
S30	#1 – #60 Wire Gauge	Metal	60	D101 S30
S31	#61 – #80 Wire Gauge	Metal	20	D101 S31
	Drill Stands (Discount Group Z0204)
S7	1/16 – 1/2 x 64ths	Metal	1	D101 S7
