DST-20N | Digital Force Gauge for Handheld | IMADA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 19,102.80
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
DST-20N
QTY:
4
Digital force gauge for handheld has capacity of 1000N with basic functions, and are most economical, easy-to-operate and compact size. With a shape that fits in your hand, a light weight of 460g, and a battery that allows up to 30 hours of continuous use, simple type digital force gauge is ideal for handheld measurement. Despite its simplicity, simple type digital force gauges are equipped with convenient functions for measurement and management, such as a pass/fail judgement, a warning alarm to prevent malfunctions due to overload, and notification of calibration time. Software for importing data to a PC is also included. Some functions require connection to separately-sold products.
Feature
- Hand fitting design and light weight ideal for stable measurement even for handheld use
- Great portability with long battery life (lasts 30 hours continuously at max with backlight off), and various charging methods (charges from a PC or a mobile battery)
- Easy data management using supplied software Force Logger via USB connection to PC
- Mechanical stopper for overload prevention (up to 50N range)
- Assists management of force gauges with calibration schedule reminder showing a message 30 days in advance from the set schedule
Specifications
| Model | DST |
| Accuracy | ±0.2％F.S.(full scale)±1digit |
| Unit | N(mN, kN), kgf(gf), lbf (*1) |
| Display | 4-digit LCD |
| Sampling rate | Max. 1000 data/sec |
| Battery | Approx.30 hours（when back light is off） Approx.14 hours (when back light is on) （need 4.5 hours for full charge） |
| Overload | Approx.200%F.S. |
| Power | Nickel-Metal Hydride battery (NiMH battery) , USB charge(PC,
mobile battery, AC adapter) |
| Operating environment | Temperature：0 - 40°C, Humidity：20 -80%RH |
| Functions | Peak hold(Tensile or compression)/Comparator(OK
Judgement)/Sensitivity(3 steps)/ Reversible display /Sign inversion/Setting lock/Date & Time/Off timer (Auto power-off)/ Reminder for calibration schedule/Overload alarm |
| Output | USB/RS232C |
| Overload alarm | Alarm to notify “near-overload state”: Approx. 90%F.S. (Alarm
sound) Alarm to notify “overloaded state” : Approx.110％F.S.（Alarm sound／Indication blinking） |
| Weight | Aprrox.460g (*3) |
| Dimensions | Refer to Dimensions on page 5. |

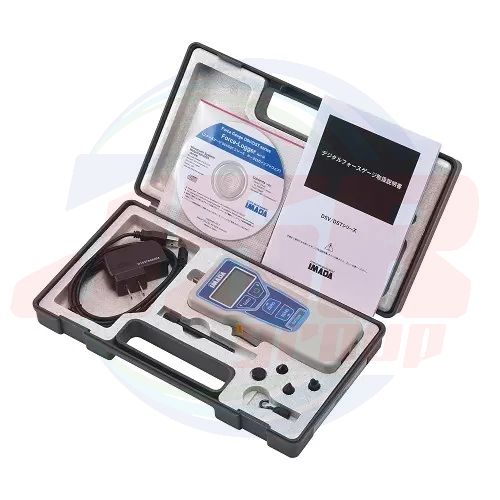

| Accessories | CD driver (including data logging
software)/USB cable/AC adaptor/ Attachments (The types of attachments vary by models)/Carrying case/ Instruction manual/Inspection certificate |
*1 These are the specifications for International model. Note that the available units are different from Japanese
domestic model and
international one. kN is available at 1000N, mN and gf is available at 2N and 5N ranges.
*2 You cannot use Continuous peak mode when the measurement does not reach 10% of the force gauge’s
capacity. Instead, use Peak
mode. Continuous peak mode could not fit enough for measurement with a
shock such as break tests. Contact us for further details.
*3 The weights are slightly different by the
model.
| Model | Capacity | Display | Resolution | Measuring shaft | Included nut |
| DST-20N | 20N | 20.00N | 0.01N | M6 P1.0 (Coarse thread) Thread length: 11.6mm |
Hexagon nut Material: Resin Height: 5mm |
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | DST-20N |
