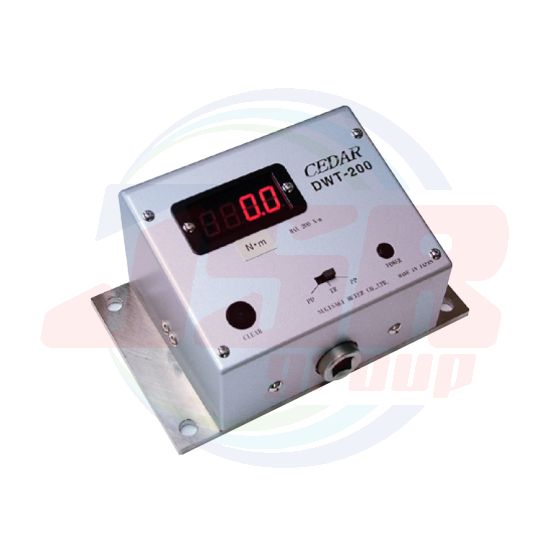

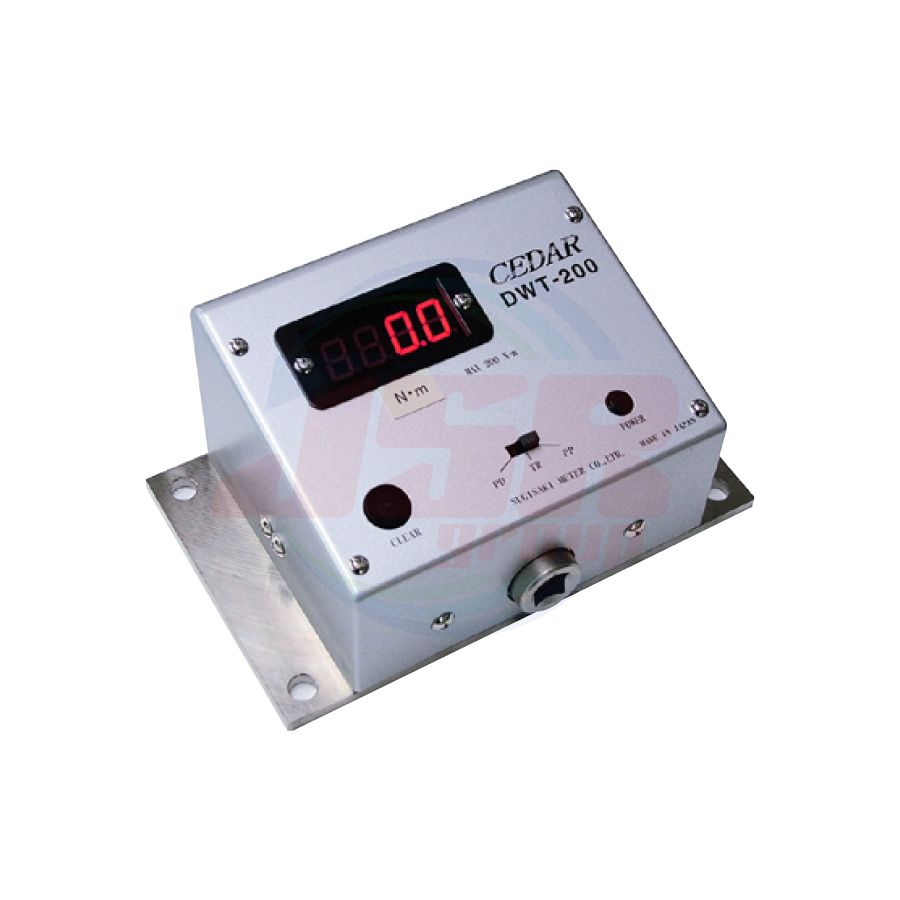

DWT-200 | TORQUE TESTER - DWT-200 | CEDAR
THB 0.00
พร้อมส่ง
SKU
DWT-200

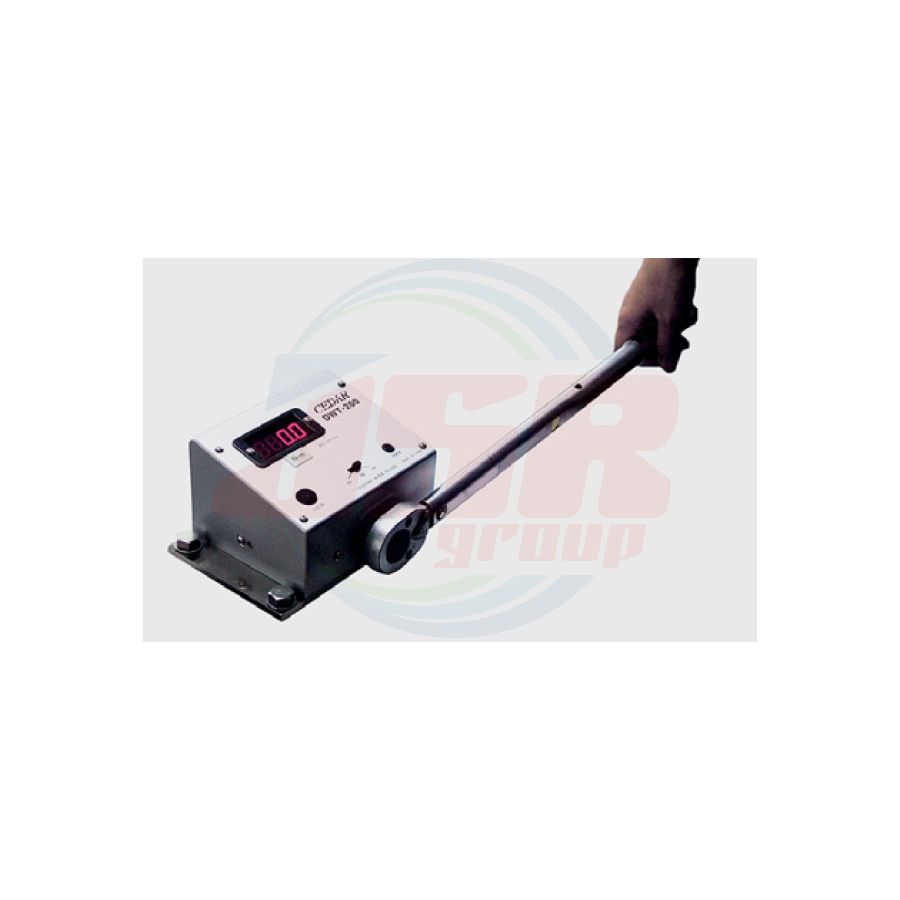

Suitable for daily inspection of torque wrench on site Dedicated for managing Torque wrench
Enable to check the operating torque by easy operation. Visible display due to LED light.
Include only necessary functions to keep the lowest cost.
• Equipped with “PP” mode for measuring actual torque and “PD” mode for measuring the torque that the torque wrench operates
• Attached adapter for converting detection unit to □ 9.5
| Order No. | DWT-200 |
| Measurement range | 7.0 ~ 200.0 N•m |
| Accuracy | ±0.5% (499 digit or less ±1digit) |
| The measurement direction | CW (right) |
| Measurement mode | Track and P-P (peak hold) P-D(peak down hold) |
| Auto-power-off | When not operating it for 5 minutes, it is power-source automatic OFF. |
| A power source and use time | Size AA battery FourContinuous duty About 20 hours (at the time of Alkaline battery use) |
| Detecting-element form | □ 12.7 |
| Outside size • Weight | 200(W) x 120(D) x 96(H) • About 2.6kg |
| Accessories | Angle drive adapter (□ 9.51 - □ 12.7) |
| An inspection report, a proofreading certificate, a traceability system figure |
* About a data output, I correspond as an option.
At the time of spanner type torque wrench measurement, a hexagon-like adapter is required separately. (Option)
| แบรนด์สินค้า | CEDAR |
|---|---|
| Order No. | DWT-200 |
