EB4HR-ATH | Taper Ball End Mill for High Accuracy Rib Slotting | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
EB4HR-ATH
±0.02
Tip : 2 flutes
Periphery : 4 flutes
| 商品コード Item code |
在庫 Stock |

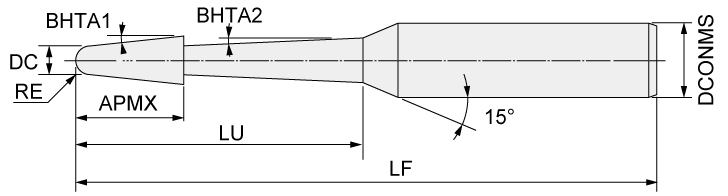

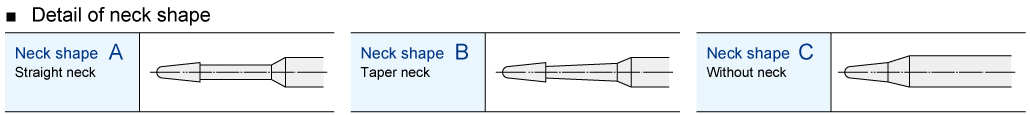

寸法 Size(mm) | 首形状 Neck shape |
首部テーパ半角 Neck angle (°) BHTA2 |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ボール半径 Ball radius RE |
外径 Tool dia. DC |
刃部テーパ半角 Taper angle on side BHTA1 |
首下長 Under Neck length LU |
刃長 Flute length APMX |
全長 Overall length LF |
シャンク径 Shank dia. DCONMS |
||||
| EB4HR0060TN-4-05-ATH | ● | 0.3 | 0.6 | 0.5 | 4 | 3.2 | 50 | 4 | A | - |
| EB4HR0060TN-5-05-ATH | ● | 0.3 | 0.6 | 0.5 | 5 | 3.2 | 50 | 4 | A | - |
| EB4HR0060TN-6-05-ATH | ● | 0.3 | 0.6 | 0.5 | 6 | 3.2 | 50 | 4 | A | - |
| EB4HR0060TN-7-05-ATH | ● | 0.3 | 0.6 | 0.5 | 7 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0060TN-8-05-ATH | ● | 0.3 | 0.6 | 0.5 | 8 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0060TN-9-05-ATH | ● | 0.3 | 0.6 | 0.5 | 9 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0060TN-10-05-ATH | ● | 0.3 | 0.6 | 0.5 | 10 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0060TN-4-10-ATH | ● | 0.3 | 0.6 | 1.0 | 4 | 3.2 | 50 | 4 | A | - |
| EB4HR0060TN-5-10-ATH | ● | 0.3 | 0.6 | 1.0 | 5 | 3.2 | 50 | 4 | A | - |
| EB4HR0060TN-6-10-ATH | ● | 0.3 | 0.6 | 1.0 | 6 | 3.2 | 50 | 4 | A | - |
| EB4HR0060TN-7-10-ATH | ● | 0.3 | 0.6 | 1.0 | 7 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0060TN-8-10-ATH | ● | 0.3 | 0.6 | 1.0 | 8 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0060TN-9-10-ATH | ● | 0.3 | 0.6 | 1.0 | 9 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0060TN-10-10-ATH | ● | 0.3 | 0.6 | 1.0 | 10 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0070TN-4-05-ATH | ● | 0.35 | 0.7 | 0.5 | 4 | 3.2 | 50 | 4 | A | - |
| EB4HR0070TN-5-05-ATH | ● | 0.35 | 0.7 | 0.5 | 5 | 3.2 | 50 | 4 | A | - |
| EB4HR0070TN-6-05-ATH | ● | 0.35 | 0.7 | 0.5 | 6 | 3.2 | 50 | 4 | A | - |
| EB4HR0070TN-7-05-ATH | ● | 0.35 | 0.7 | 0.5 | 7 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0070TN-8-05-ATH | ● | 0.35 | 0.7 | 0.5 | 8 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0070TN-9-05-ATH | ● | 0.35 | 0.7 | 0.5 | 9 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0070TN-10-05-ATH | ● | 0.35 | 0.7 | 0.5 | 10 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0070TN-4-10-ATH | ● | 0.35 | 0.7 | 1.0 | 4 | 3.2 | 50 | 4 | A | - |
| EB4HR0070TN-5-10-ATH | ● | 0.35 | 0.7 | 1.0 | 5 | 3.2 | 50 | 4 | A | - |
| EB4HR0070TN-6-10-ATH | ● | 0.35 | 0.7 | 1.0 | 6 | 3.2 | 50 | 4 | A | - |
| EB4HR0070TN-7-10-ATH | ● | 0.35 | 0.7 | 1.0 | 7 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0070TN-8-10-ATH | ● | 0.35 | 0.7 | 1.0 | 8 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0070TN-9-10-ATH | ● | 0.35 | 0.7 | 1.0 | 9 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0070TN-10-10-ATH | ● | 0.35 | 0.7 | 1.0 | 10 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0080TN-4-05-ATH | ● | 0.4 | 0.8 | 0.5 | 4 | 3.2 | 50 | 4 | A | - |
| EB4HR0080TN-6-05-ATH | ● | 0.4 | 0.8 | 0.5 | 6 | 3.2 | 50 | 4 | A | - |
| EB4HR0080TN-8-05-ATH | ● | 0.4 | 0.8 | 0.5 | 8 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0080TN-10-05-ATH | ● | 0.4 | 0.8 | 0.5 | 10 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0080TN-12-05-ATH | ● | 0.4 | 0.8 | 0.5 | 12 | 3.2 | 55 | 4 | B | 0.5 |
| EB4HR0080TN-14-05-ATH | ● | 0.4 | 0.8 | 0.5 | 14 | 3.2 | 55 | 4 | B | 0.5 |
| EB4HR0080TN-4-10-ATH | ● | 0.4 | 0.8 | 1.0 | 4 | 3.2 | 50 | 4 | A | - |
| EB4HR0080TN-6-10-ATH | ● | 0.4 | 0.8 | 1.0 | 6 | 3.2 | 50 | 4 | A | - |
| EB4HR0080TN-8-10-ATH | ● | 0.4 | 0.8 | 1.0 | 8 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0080TN-10-10-ATH | ● | 0.4 | 0.8 | 1.0 | 10 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0080TN-12-10-ATH | ● | 0.4 | 0.8 | 1.0 | 12 | 3.2 | 55 | 4 | B | 1.0 |
| EB4HR0080TN-14-10-ATH | ● | 0.4 | 0.8 | 1.0 | 14 | 3.2 | 55 | 4 | B | 1.0 |
| EB4HR0090TN-4-05-ATH | ● | 0.45 | 0.9 | 0.5 | 4 | 3.2 | 50 | 4 | A | - |
| EB4HR0090TN-6-05-ATH | ● | 0.45 | 0.9 | 0.5 | 6 | 3.2 | 50 | 4 | A | - |
| EB4HR0090TN-8-05-ATH | ● | 0.45 | 0.9 | 0.5 | 8 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0090TN-10-05-ATH | ● | 0.45 | 0.9 | 0.5 | 10 | 3.2 | 50 | 4 | B | 0.5 |
| EB4HR0090TN-12-05-ATH | ● | 0.45 | 0.9 | 0.5 | 12 | 3.2 | 55 | 4 | B | 0.5 |
| EB4HR0090TN-14-05-ATH | ● | 0.45 | 0.9 | 0.5 | 14 | 3.2 | 55 | 4 | B | 0.5 |
| EB4HR0090TN-4-10-ATH | ● | 0.45 | 0.9 | 1.0 | 4 | 3.2 | 50 | 4 | A | - |
| EB4HR0090TN-6-10-ATH | ● | 0.45 | 0.9 | 1.0 | 6 | 3.2 | 50 | 4 | A | - |
| EB4HR0090TN-8-10-ATH | ● | 0.45 | 0.9 | 1.0 | 8 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0090TN-10-10-ATH | ● | 0.45 | 0.9 | 1.0 | 10 | 3.2 | 50 | 4 | B | 1.0 |
| EB4HR0090TN-12-10-ATH | ● | 0.45 | 0.9 | 1.0 | 12 | 3.2 | 55 | 4 | B | 1.0 |
| EB4HR0090TN-14-10-ATH | ● | 0.45 | 0.9 | 1.0 | 14 | 3.2 | 55 | 4 | B | 1.0 |
| EB4HR0100TN-4-05-ATH | ● | 0.5 | 1.0 | 0.5 | 4 | 4.0 | 50 | 4 | C | - |
| EB4HR0100TN-6-05-ATH | ● | 0.5 | 1.0 | 0.5 | 6 | 4.0 | 50 | 4 | A | - |
| EB4HR0100TN-8-05-ATH | ● | 0.5 | 1.0 | 0.5 | 8 | 4.0 | 50 | 4 | B | 0.5 |
| EB4HR0100TN-10-05-ATH | ● | 0.5 | 1.0 | 0.5 | 10 | 4.0 | 50 | 4 | B | 0.5 |
| EB4HR0100TN-12-05-ATH | ● | 0.5 | 1.0 | 0.5 | 12 | 4.0 | 55 | 4 | B | 0.5 |
| EB4HR0100TN-14-05-ATH | ● | 0.5 | 1.0 | 0.5 | 14 | 4.0 | 55 | 4 | B | 0.5 |
| EB4HR0100TN-16-05-ATH | ● | 0.5 | 1.0 | 0.5 | 16 | 4.0 | 55 | 4 | B | 0.5 |
| EB4HR0100TN-18-05-ATH | ● | 0.5 | 1.0 | 0.5 | 18 | 4.0 | 60 | 4 | B | 0.5 |
| EB4HR0100TN-20-05-ATH | ● | 0.5 | 1.0 | 0.5 | 20 | 4.0 | 60 | 4 | B | 0.5 |
| EB4HR0100TN-4-10-ATH | ● | 0.5 | 1.0 | 1.0 | 4 | 4.0 | 50 | 4 | C | - |
| EB4HR0100TN-6-10-ATH | ● | 0.5 | 1.0 | 1.0 | 6 | 4.0 | 50 | 4 | A | - |
| EB4HR0100TN-8-10-ATH | ● | 0.5 | 1.0 | 1.0 | 8 | 4.0 | 50 | 4 | B | 1.0 |
| EB4HR0100TN-10-10-ATH | ● | 0.5 | 1.0 | 1.0 | 10 | 4.0 | 50 | 4 | B | 1.0 |
| EB4HR0100TN-12-10-ATH | ● | 0.5 | 1.0 | 1.0 | 12 | 4.0 | 55 | 4 | B | 1.0 |
| EB4HR0100TN-14-10-ATH | ● | 0.5 | 1.0 | 1.0 | 14 | 4.0 | 55 | 4 | B | 1.0 |
| EB4HR0100TN-16-10-ATH | ● | 0.5 | 1.0 | 1.0 | 16 | 4.0 | 55 | 4 | B | 1.0 |
| EB4HR0100TN-18-10-ATH | ● | 0.5 | 1.0 | 1.0 | 18 | 4.0 | 60 | 4 | B | 1.0 |
| EB4HR0100TN-20-10-ATH | ● | 0.5 | 1.0 | 1.0 | 20 | 4.0 | 60 | 4 | B | 1.0 |
| EB4HR0110TN-4-05-ATH | ● | 0.55 | 1.1 | 0.5 | 4 | 4.0 | 50 | 4 | C | - |
| EB4HR0110TN-6-05-ATH | ● | 0.55 | 1.1 | 0.5 | 6 | 4.0 | 50 | 4 | A | - |
| EB4HR0110TN-8-05-ATH | ● | 0.55 | 1.1 | 0.5 | 8 | 4.0 | 50 | 4 | B | 0.5 |
| EB4HR0110TN-10-05-ATH | ● | 0.55 | 1.1 | 0.5 | 10 | 4.0 | 50 | 4 | B | 0.5 |
| EB4HR0110TN-12-05-ATH | ● | 0.55 | 1.1 | 0.5 | 12 | 4.0 | 55 | 4 | B | 0.5 |
| EB4HR0110TN-14-05-ATH | ● | 0.55 | 1.1 | 0.5 | 14 | 4.0 | 55 | 4 | B | 0.5 |
| EB4HR0110TN-16-05-ATH | ● | 0.55 | 1.1 | 0.5 | 16 | 4.0 | 55 | 4 | B | 0.5 |
| EB4HR0110TN-18-05-ATH | ● | 0.55 | 1.1 | 0.5 | 18 | 4.0 | 60 | 4 | B | 0.5 |
| EB4HR0110TN-20-05-ATH | ● | 0.55 | 1.1 | 0.5 | 20 | 4.0 | 60 | 4 | B | 0.5 |
| EB4HR0110TN-4-10-ATH | ● | 0.55 | 1.1 | 1.0 | 4 | 4.0 | 50 | 4 | C | - |
| EB4HR0110TN-6-10-ATH | ● | 0.55 | 1.1 | 1.0 | 6 | 4.0 | 50 | 4 | A | - |
| EB4HR0110TN-8-10-ATH | ● | 0.55 | 1.1 | 1.0 | 8 | 4.0 | 50 | 4 | B | 1.0 |
| EB4HR0110TN-10-10-ATH | ● | 0.55 | 1.1 | 1.0 | 10 | 4.0 | 50 | 4 | B | 1.0 |
| EB4HR0110TN-12-10-ATH | ● | 0.55 | 1.1 | 1.0 | 12 | 4.0 | 55 | 4 | B | 1.0 |
| EB4HR0110TN-14-10-ATH | ● | 0.55 | 1.1 | 1.0 | 14 | 4.0 | 55 | 4 | B | 1.0 |
| EB4HR0110TN-16-10-ATH | ● | 0.55 | 1.1 | 1.0 | 16 | 4.0 | 55 | 4 | B | 1.0 |
| EB4HR0110TN-18-10-ATH | ● | 0.55 | 1.1 | 1.0 | 18 | 4.0 | 60 | 4 | B | 1.0 |
| EB4HR0110TN-20-10-ATH | ● | 0.55 | 1.1 | 1.0 | 20 | 4.0 | 60 | 4 | B | 1.0 |
| EB4HR0120TN-6-05-ATH | ● | 0.6 | 1.2 | 0.5 | 6 | 4.8 | 50 | 4 | A | - |
| EB4HR0120TN-8-05-ATH | ● | 0.6 | 1.2 | 0.5 | 8 | 4.8 | 50 | 4 | B | 0.5 |
| EB4HR0120TN-10-05-ATH | ● | 0.6 | 1.2 | 0.5 | 10 | 4.8 | 50 | 4 | B | 0.5 |
| EB4HR0120TN-12-05-ATH | ● | 0.6 | 1.2 | 0.5 | 12 | 4.8 | 55 | 4 | B | 0.5 |
| EB4HR0120TN-14-05-ATH | ● | 0.6 | 1.2 | 0.5 | 14 | 4.8 | 55 | 4 | B | 0.5 |
| EB4HR0120TN-16-05-ATH | ● | 0.6 | 1.2 | 0.5 | 16 | 4.8 | 55 | 4 | B | 0.5 |
| EB4HR0120TN-18-05-ATH | ● | 0.6 | 1.2 | 0.5 | 18 | 4.8 | 60 | 4 | B | 0.5 |
| EB4HR0120TN-20-05-ATH | ● | 0.6 | 1.2 | 0.5 | 20 | 4.8 | 60 | 4 | B | 0.5 |
| EB4HR0120TN-22-05-ATH | ● | 0.6 | 1.2 | 0.5 | 22 | 4.8 | 60 | 4 | B | 0.5 |
| EB4HR0120TN-24-05-ATH | ● | 0.6 | 1.2 | 0.5 | 24 | 4.8 | 60 | 4 | B | 0.5 |
| EB4HR0120TN-6-10-ATH | ● | 0.6 | 1.2 | 1.0 | 6 | 4.8 | 50 | 4 | A | - |
| EB4HR0120TN-8-10-ATH | ● | 0.6 | 1.2 | 1.0 | 8 | 4.8 | 50 | 4 | B | 1.0 |
| EB4HR0120TN-10-10-ATH | ● | 0.6 | 1.2 | 1.0 | 10 | 4.8 | 50 | 4 | B | 1.0 |
| EB4HR0120TN-12-10-ATH | ● | 0.6 | 1.2 | 1.0 | 12 | 4.8 | 55 | 4 | B | 1.0 |
| EB4HR0120TN-14-10-ATH | ● | 0.6 | 1.2 | 1.0 | 14 | 4.8 | 55 | 4 | B | 1.0 |
| EB4HR0120TN-16-10-ATH | ● | 0.6 | 1.2 | 1.0 | 16 | 4.8 | 55 | 4 | B | 1.0 |
| EB4HR0120TN-18-10-ATH | ● | 0.6 | 1.2 | 1.0 | 18 | 4.8 | 60 | 4 | B | 1.0 |
| EB4HR0120TN-20-10-ATH | ● | 0.6 | 1.2 | 1.0 | 20 | 4.8 | 60 | 4 | B | 1.0 |
| EB4HR0120TN-22-10-ATH | ● | 0.6 | 1.2 | 1.0 | 22 | 4.8 | 60 | 4 | B | 1.0 |
| EB4HR0120TN-24-10-ATH | ● | 0.6 | 1.2 | 1.0 | 24 | 4.8 | 60 | 4 | B | 1.0 |
| แบรนด์สินค้า | MOLDINO |
|---|
