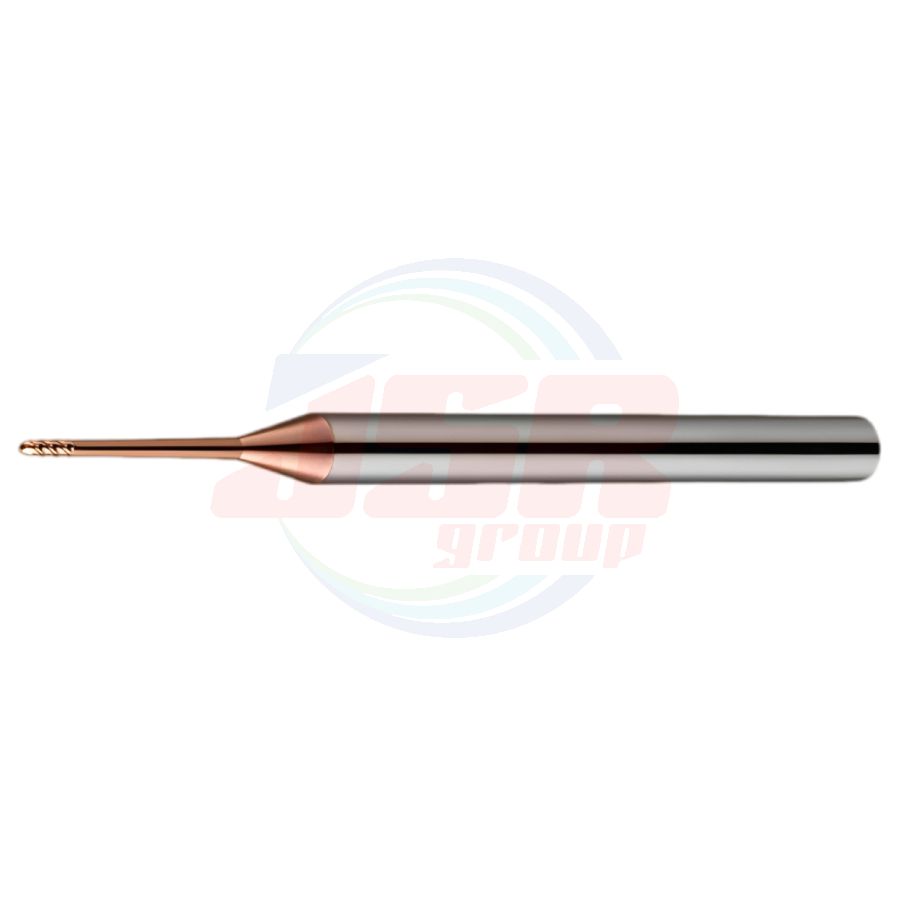

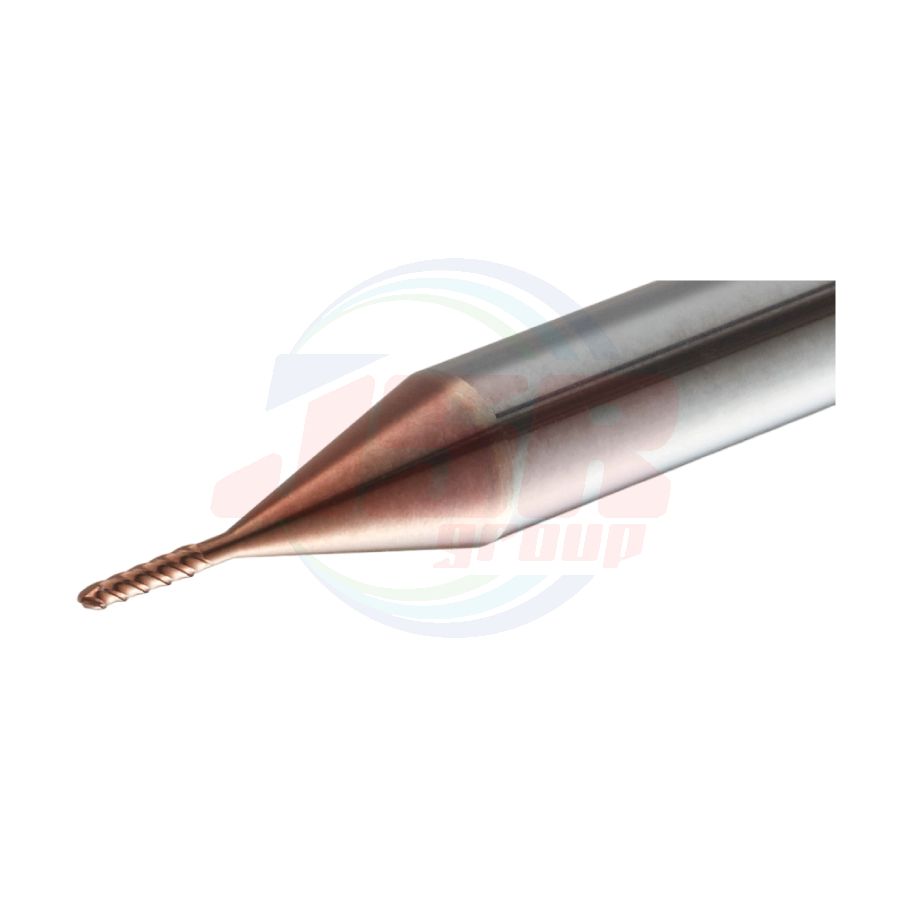

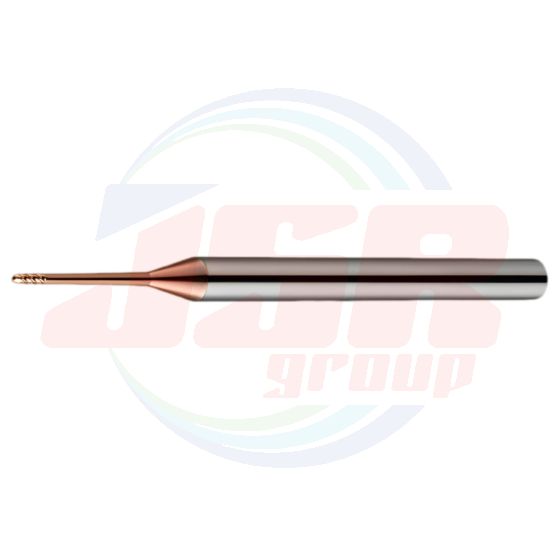

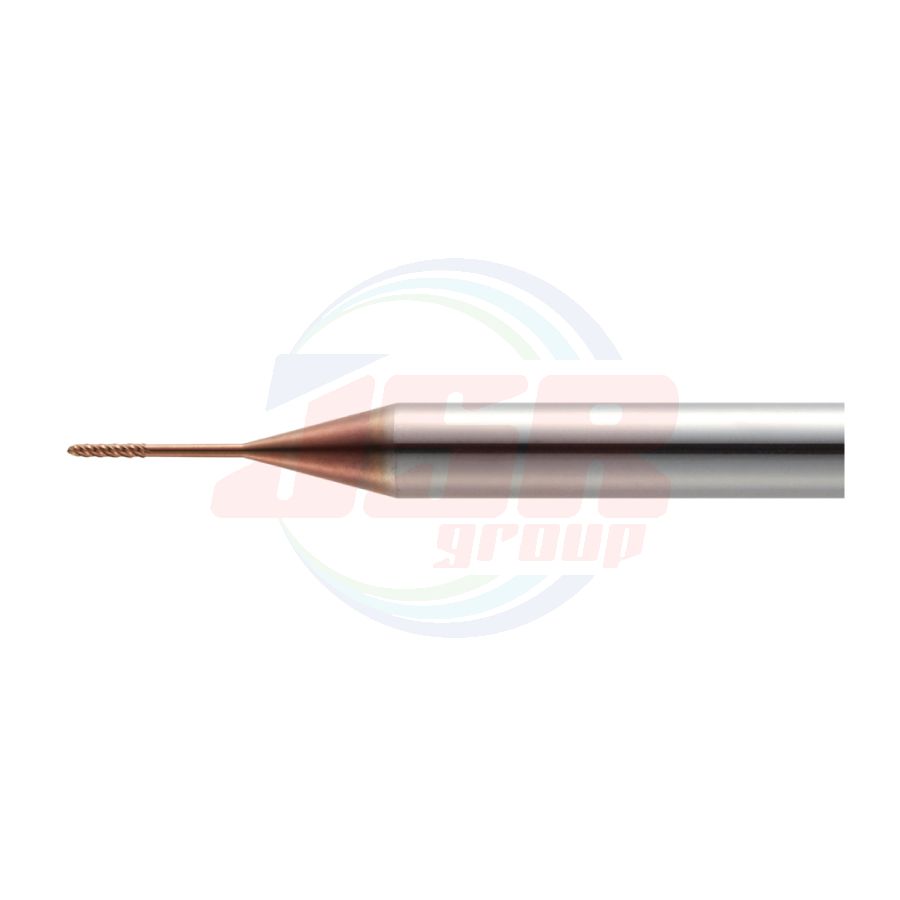

EB4HR0080TN-8-05-ATH | Taper Ball End Mill for High Accuracy Rib Slotting | MOLDINO

MOLDINO
เป็นคนแรกที่รีวิวสินค้านี้
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
EB4HR0080TN-8-05-ATH
QTY:
1
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ
File PDF
EB4HR0080TN-8-05-ATH | Taper Ball End Mill for High Accuracy Rib Slotting | MOLDINO
EB4HR0080TN-8-05-ATH | Taper Ball End Mill for High Accuracy Rib Slotting | MOLDINO EB4HR0080TN-8-05-ATH | Taper Ball End Mill for High Accuracy Rib Slotting | MOLDINO EB4HR0080TN-8-05-ATH | Taper Ball End Mill for High Accuracy Rib Slotting | MOLDINO



±0.02



Tip : 2 flutes

Periphery : 4 flutes


商品コード
Item code		 在庫
Stock		 寸法 Size(mm) 首形状
Neck shape		 首部テーパ半角
Neck angle (°)
BHTA2
ボール半径
Ball radius
RE		 外径
Tool dia.
DC		 刃部テーパ半角
Taper angle on side
BHTA1		 首下長
Under Neck length
LU		 刃長
Flute length
APMX		 全長
Overall length
LF		 シャンク径
Shank dia.
DCONMS
EB4HR0060TN-4-05-ATH ● 0.3 0.6 0.5 4 3.2 50 4 A -
EB4HR0060TN-5-05-ATH ● 0.3 0.6 0.5 5 3.2 50 4 A -
EB4HR0060TN-6-05-ATH ● 0.3 0.6 0.5 6 3.2 50 4 A -
EB4HR0060TN-7-05-ATH ● 0.3 0.6 0.5 7 3.2 50 4 B 0.5
EB4HR0060TN-8-05-ATH ● 0.3 0.6 0.5 8 3.2 50 4 B 0.5
EB4HR0060TN-9-05-ATH ● 0.3 0.6 0.5 9 3.2 50 4 B 0.5
EB4HR0060TN-10-05-ATH ● 0.3 0.6 0.5 10 3.2 50 4 B 0.5
EB4HR0060TN-4-10-ATH ● 0.3 0.6 1.0 4 3.2 50 4 A -
EB4HR0060TN-5-10-ATH ● 0.3 0.6 1.0 5 3.2 50 4 A -
EB4HR0060TN-6-10-ATH ● 0.3 0.6 1.0 6 3.2 50 4 A -
EB4HR0060TN-7-10-ATH ● 0.3 0.6 1.0 7 3.2 50 4 B 1.0
EB4HR0060TN-8-10-ATH ● 0.3 0.6 1.0 8 3.2 50 4 B 1.0
EB4HR0060TN-9-10-ATH ● 0.3 0.6 1.0 9 3.2 50 4 B 1.0
EB4HR0060TN-10-10-ATH ● 0.3 0.6 1.0 10 3.2 50 4 B 1.0
EB4HR0070TN-4-05-ATH ● 0.35 0.7 0.5 4 3.2 50 4 A -
EB4HR0070TN-5-05-ATH ● 0.35 0.7 0.5 5 3.2 50 4 A -
EB4HR0070TN-6-05-ATH ● 0.35 0.7 0.5 6 3.2 50 4 A -
EB4HR0070TN-7-05-ATH ● 0.35 0.7 0.5 7 3.2 50 4 B 0.5
EB4HR0070TN-8-05-ATH ● 0.35 0.7 0.5 8 3.2 50 4 B 0.5
EB4HR0070TN-9-05-ATH ● 0.35 0.7 0.5 9 3.2 50 4 B 0.5
EB4HR0070TN-10-05-ATH ● 0.35 0.7 0.5 10 3.2 50 4 B 0.5
EB4HR0070TN-4-10-ATH ● 0.35 0.7 1.0 4 3.2 50 4 A -
EB4HR0070TN-5-10-ATH ● 0.35 0.7 1.0 5 3.2 50 4 A -
EB4HR0070TN-6-10-ATH ● 0.35 0.7 1.0 6 3.2 50 4 A -
EB4HR0070TN-7-10-ATH ● 0.35 0.7 1.0 7 3.2 50 4 B 1.0
EB4HR0070TN-8-10-ATH ● 0.35 0.7 1.0 8 3.2 50 4 B 1.0
EB4HR0070TN-9-10-ATH ● 0.35 0.7 1.0 9 3.2 50 4 B 1.0
EB4HR0070TN-10-10-ATH ● 0.35 0.7 1.0 10 3.2 50 4 B 1.0
EB4HR0080TN-4-05-ATH ● 0.4 0.8 0.5 4 3.2 50 4 A -
EB4HR0080TN-6-05-ATH ● 0.4 0.8 0.5 6 3.2 50 4 A -
EB4HR0080TN-8-05-ATH ● 0.4 0.8 0.5 8 3.2 50 4 B 0.5
EB4HR0080TN-10-05-ATH ● 0.4 0.8 0.5 10 3.2 50 4 B 0.5
EB4HR0080TN-12-05-ATH ● 0.4 0.8 0.5 12 3.2 55 4 B 0.5
EB4HR0080TN-14-05-ATH ● 0.4 0.8 0.5 14 3.2 55 4 B 0.5
EB4HR0080TN-4-10-ATH ● 0.4 0.8 1.0 4 3.2 50 4 A -
EB4HR0080TN-6-10-ATH ● 0.4 0.8 1.0 6 3.2 50 4 A -
EB4HR0080TN-8-10-ATH ● 0.4 0.8 1.0 8 3.2 50 4 B 1.0
EB4HR0080TN-10-10-ATH ● 0.4 0.8 1.0 10 3.2 50 4 B 1.0
EB4HR0080TN-12-10-ATH ● 0.4 0.8 1.0 12 3.2 55 4 B 1.0
EB4HR0080TN-14-10-ATH ● 0.4 0.8 1.0 14 3.2 55 4 B 1.0
EB4HR0090TN-4-05-ATH ● 0.45 0.9 0.5 4 3.2 50 4 A -
EB4HR0090TN-6-05-ATH ● 0.45 0.9 0.5 6 3.2 50 4 A -
EB4HR0090TN-8-05-ATH ● 0.45 0.9 0.5 8 3.2 50 4 B 0.5
EB4HR0090TN-10-05-ATH ● 0.45 0.9 0.5 10 3.2 50 4 B 0.5
EB4HR0090TN-12-05-ATH ● 0.45 0.9 0.5 12 3.2 55 4 B 0.5
EB4HR0090TN-14-05-ATH ● 0.45 0.9 0.5 14 3.2 55 4 B 0.5
EB4HR0090TN-4-10-ATH ● 0.45 0.9 1.0 4 3.2 50 4 A -
EB4HR0090TN-6-10-ATH ● 0.45 0.9 1.0 6 3.2 50 4 A -
EB4HR0090TN-8-10-ATH ● 0.45 0.9 1.0 8 3.2 50 4 B 1.0
EB4HR0090TN-10-10-ATH ● 0.45 0.9 1.0 10 3.2 50 4 B 1.0
EB4HR0090TN-12-10-ATH ● 0.45 0.9 1.0 12 3.2 55 4 B 1.0
EB4HR0090TN-14-10-ATH ● 0.45 0.9 1.0 14 3.2 55 4 B 1.0
EB4HR0100TN-4-05-ATH ● 0.5 1.0 0.5 4 4.0 50 4 C -
EB4HR0100TN-6-05-ATH ● 0.5 1.0 0.5 6 4.0 50 4 A -
EB4HR0100TN-8-05-ATH ● 0.5 1.0 0.5 8 4.0 50 4 B 0.5
EB4HR0100TN-10-05-ATH ● 0.5 1.0 0.5 10 4.0 50 4 B 0.5
EB4HR0100TN-12-05-ATH ● 0.5 1.0 0.5 12 4.0 55 4 B 0.5
EB4HR0100TN-14-05-ATH ● 0.5 1.0 0.5 14 4.0 55 4 B 0.5
EB4HR0100TN-16-05-ATH ● 0.5 1.0 0.5 16 4.0 55 4 B 0.5
EB4HR0100TN-18-05-ATH ● 0.5 1.0 0.5 18 4.0 60 4 B 0.5
EB4HR0100TN-20-05-ATH ● 0.5 1.0 0.5 20 4.0 60 4 B 0.5
EB4HR0100TN-4-10-ATH ● 0.5 1.0 1.0 4 4.0 50 4 C -
EB4HR0100TN-6-10-ATH ● 0.5 1.0 1.0 6 4.0 50 4 A -
EB4HR0100TN-8-10-ATH ● 0.5 1.0 1.0 8 4.0 50 4 B 1.0
EB4HR0100TN-10-10-ATH ● 0.5 1.0 1.0 10 4.0 50 4 B 1.0
EB4HR0100TN-12-10-ATH ● 0.5 1.0 1.0 12 4.0 55 4 B 1.0
EB4HR0100TN-14-10-ATH ● 0.5 1.0 1.0 14 4.0 55 4 B 1.0
EB4HR0100TN-16-10-ATH ● 0.5 1.0 1.0 16 4.0 55 4 B 1.0
EB4HR0100TN-18-10-ATH ● 0.5 1.0 1.0 18 4.0 60 4 B 1.0
EB4HR0100TN-20-10-ATH ● 0.5 1.0 1.0 20 4.0 60 4 B 1.0
EB4HR0110TN-4-05-ATH ● 0.55 1.1 0.5 4 4.0 50 4 C -
EB4HR0110TN-6-05-ATH ● 0.55 1.1 0.5 6 4.0 50 4 A -
EB4HR0110TN-8-05-ATH ● 0.55 1.1 0.5 8 4.0 50 4 B 0.5
EB4HR0110TN-10-05-ATH ● 0.55 1.1 0.5 10 4.0 50 4 B 0.5
EB4HR0110TN-12-05-ATH ● 0.55 1.1 0.5 12 4.0 55 4 B 0.5
EB4HR0110TN-14-05-ATH ● 0.55 1.1 0.5 14 4.0 55 4 B 0.5
EB4HR0110TN-16-05-ATH ● 0.55 1.1 0.5 16 4.0 55 4 B 0.5
EB4HR0110TN-18-05-ATH ● 0.55 1.1 0.5 18 4.0 60 4 B 0.5
EB4HR0110TN-20-05-ATH ● 0.55 1.1 0.5 20 4.0 60 4 B 0.5
EB4HR0110TN-4-10-ATH ● 0.55 1.1 1.0 4 4.0 50 4 C -
EB4HR0110TN-6-10-ATH ● 0.55 1.1 1.0 6 4.0 50 4 A -
EB4HR0110TN-8-10-ATH ● 0.55 1.1 1.0 8 4.0 50 4 B 1.0
EB4HR0110TN-10-10-ATH ● 0.55 1.1 1.0 10 4.0 50 4 B 1.0
EB4HR0110TN-12-10-ATH ● 0.55 1.1 1.0 12 4.0 55 4 B 1.0
EB4HR0110TN-14-10-ATH ● 0.55 1.1 1.0 14 4.0 55 4 B 1.0
EB4HR0110TN-16-10-ATH ● 0.55 1.1 1.0 16 4.0 55 4 B 1.0
EB4HR0110TN-18-10-ATH ● 0.55 1.1 1.0 18 4.0 60 4 B 1.0
EB4HR0110TN-20-10-ATH ● 0.55 1.1 1.0 20 4.0 60 4 B 1.0
EB4HR0120TN-6-05-ATH ● 0.6 1.2 0.5 6 4.8 50 4 A -
EB4HR0120TN-8-05-ATH ● 0.6 1.2 0.5 8 4.8 50 4 B 0.5
EB4HR0120TN-10-05-ATH ● 0.6 1.2 0.5 10 4.8 50 4 B 0.5
EB4HR0120TN-12-05-ATH ● 0.6 1.2 0.5 12 4.8 55 4 B 0.5
EB4HR0120TN-14-05-ATH ● 0.6 1.2 0.5 14 4.8 55 4 B 0.5
EB4HR0120TN-16-05-ATH ● 0.6 1.2 0.5 16 4.8 55 4 B 0.5
EB4HR0120TN-18-05-ATH ● 0.6 1.2 0.5 18 4.8 60 4 B 0.5
EB4HR0120TN-20-05-ATH ● 0.6 1.2 0.5 20 4.8 60 4 B 0.5
EB4HR0120TN-22-05-ATH ● 0.6 1.2 0.5 22 4.8 60 4 B 0.5
EB4HR0120TN-24-05-ATH ● 0.6 1.2 0.5 24 4.8 60 4 B 0.5
EB4HR0120TN-6-10-ATH ● 0.6 1.2 1.0 6 4.8 50 4 A -
EB4HR0120TN-8-10-ATH ● 0.6 1.2 1.0 8 4.8 50 4 B 1.0
EB4HR0120TN-10-10-ATH ● 0.6 1.2 1.0 10 4.8 50 4 B 1.0
EB4HR0120TN-12-10-ATH ● 0.6 1.2 1.0 12 4.8 55 4 B 1.0
EB4HR0120TN-14-10-ATH ● 0.6 1.2 1.0 14 4.8 55 4 B 1.0
EB4HR0120TN-16-10-ATH ● 0.6 1.2 1.0 16 4.8 55 4 B 1.0
EB4HR0120TN-18-10-ATH ● 0.6 1.2 1.0 18 4.8 60 4 B 1.0
EB4HR0120TN-20-10-ATH ● 0.6 1.2 1.0 20 4.8 60 4 B 1.0
EB4HR0120TN-22-10-ATH ● 0.6 1.2 1.0 22 4.8 60 4 B 1.0
EB4HR0120TN-24-10-ATH ● 0.6 1.2 1.0 24 4.8 60 4 B 1.0

More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MOLDINO
Order No. EB4HR0080TN-8-05-ATH
Ball radius 0.4
Tool dia. 0.8
Under neck length 8
Flute length 3.2
Overall length 50
Shank dia 4
Taper angle on side 0.5
Dimension
