ECRB-PN | Epoch Combination Rib Ball | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
ECRB-PN
±0.02

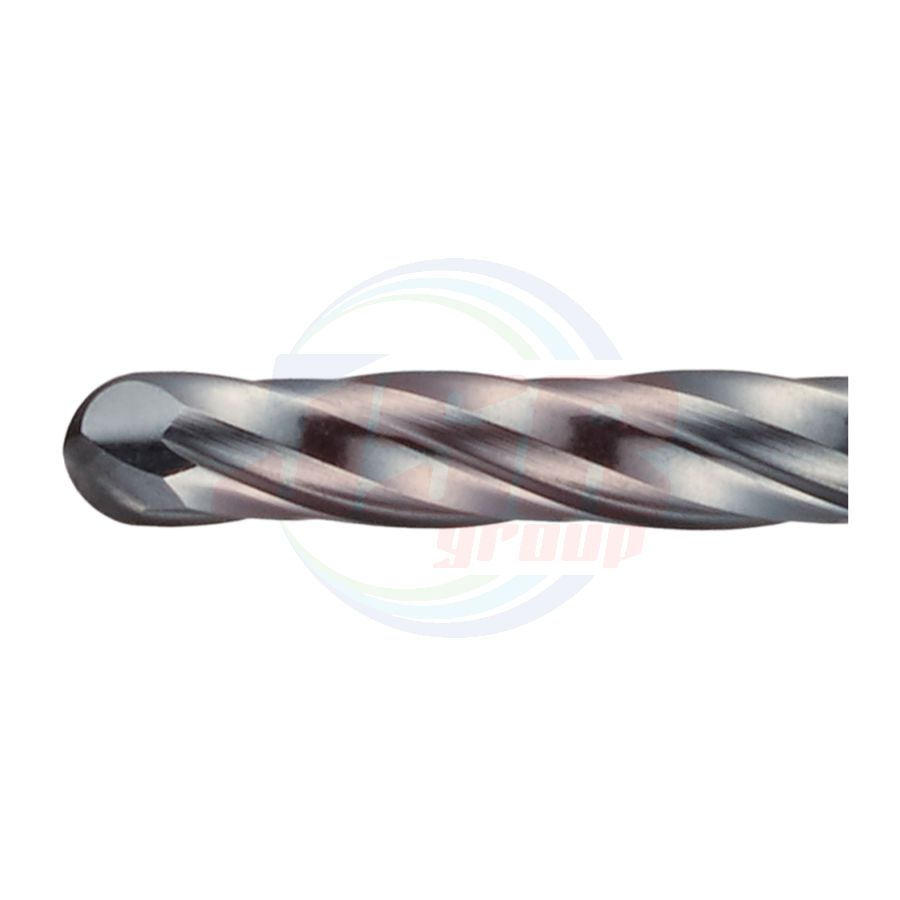

Tip 2 flutes
Peripheral 4 flutes
| 商品コード Item code |
在庫 Stock |

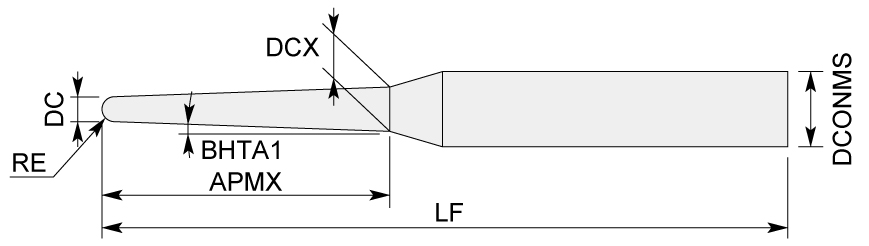

寸法 Size (mm) | 刃部テーパ半角 Taper angle on side BHTA1 |
|||||
|---|---|---|---|---|---|---|---|---|
| ボール半径 Ball radius RE |
外径 Tool dia. DC |
大端径 Large edge dia. DCX |
刃長 Flute length APMX |
シャンク径 Shank dia. DCONMS |
全長 Overall length LF |
|||
| ECRB0809-6-PN | ● | 0.4 | 0.8 | 0.9 | 6 | 4 | 60 | (0.51) |
| ECRB0809-8-PN | ● | 0.4 | 0.8 | 0.9 | 8 | 4 | 60 | (0.38) |
| ECRB0809-10-PN | ● | 0.4 | 0.8 | 0.9 | 10 | 4 | 60 | (0.30) |
| ECRB0809-12-PN | ● | 0.4 | 0.8 | 0.9 | 12 | 4 | 60 | (0.25) |
| ECRB0810-6-PN | ● | 0.4 | 0.8 | 1.0 | 6 | 4 | 60 | (1.02) |
| ECRB0810-8-PN | ● | 0.4 | 0.8 | 1.0 | 8 | 4 | 60 | (0.75) |
| ECRB0810-10-PN | ● | 0.4 | 0.8 | 1.0 | 10 | 4 | 60 | (0.60) |
| ECRB0810-12-PN | ● | 0.4 | 0.8 | 1.0 | 12 | 4 | 60 | (0.49) |
| ECRB1012-6-PN | ● | 0.5 | 1 | 1.2 | 6 | 4 | 60 | (1.04) |
| ECRB1012-8-PN | ● | 0.5 | 1 | 1.2 | 8 | 4 | 60 | (0.76) |
| ECRB1012-10-PN | ● | 0.5 | 1 | 1.2 | 10 | 4 | 60 | (0.60) |
| ECRB1012-12-PN | ● | 0.5 | 1 | 1.2 | 12 | 4 | 60 | (0.50) |
| ECRB1012-14-PN | ● | 0.5 | 1 | 1.2 | 14 | 4 | 60 | (0.42) |
| ECRB1012-16-PN | ● | 0.5 | 1 | 1.2 | 16 | 4 | 60 | (0.37) |
| แบรนด์สินค้า | MOLDINO |
|---|
