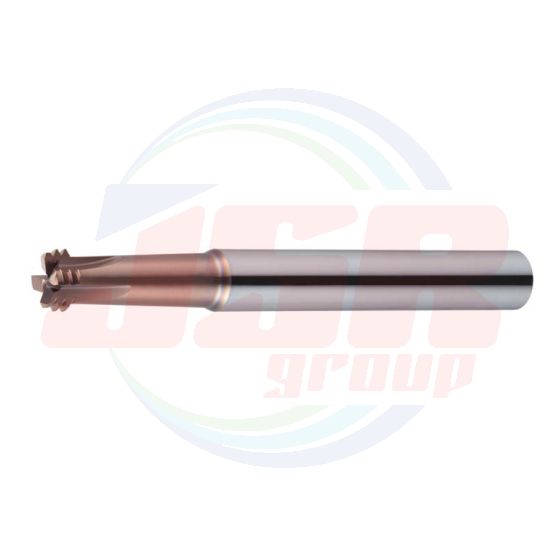

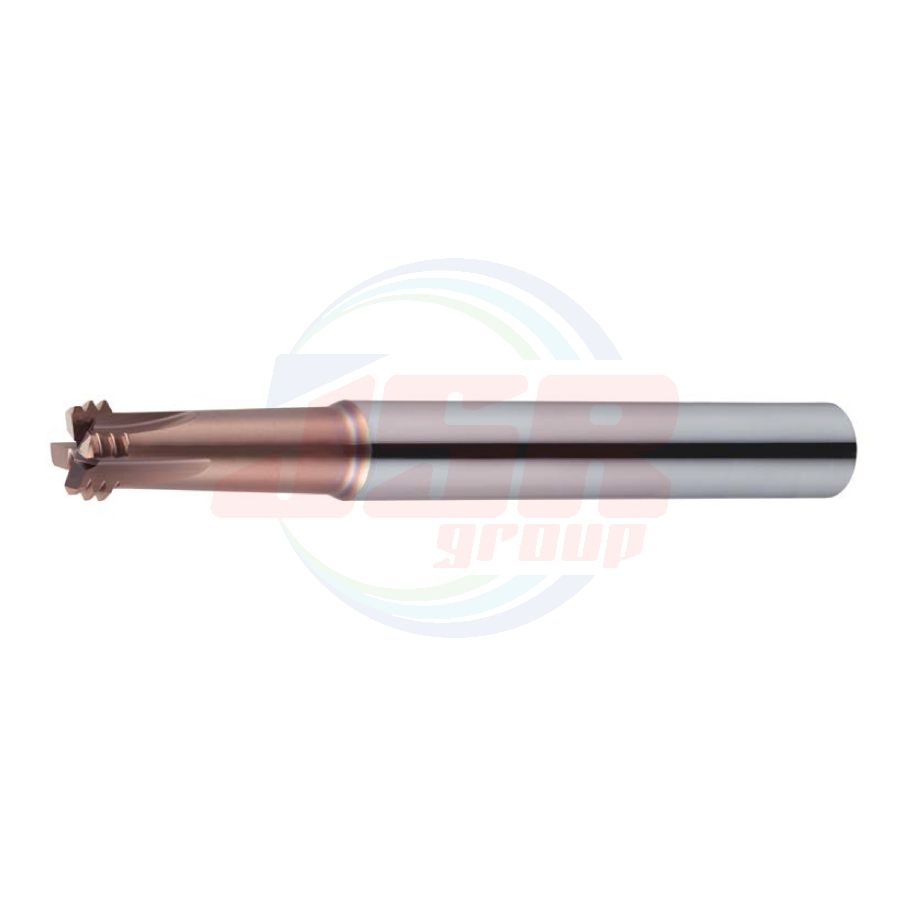

EDT-NPT1/16-18-ATH | Epoch D Thread Mill for NPT Threads| MOLDINO
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
EDT-NPT1/16-18-ATH
QTY:
1
| for PT(Rc) threads | Stock | Thread dia. | Pitch |
Reference dia. |
Under neck length |
Overall length |
Shank dia. |
Oil Hole |
Thread diameter compensation value |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Item code | Pilot hole not required |
Pilot hole required (pilot hole diameter) |
||||||||
| D1 | D1 | TP | DC | LU | OAL | DCONMS | D2 | |||
| EDT-NPT1/16-18-ATH | ● | NPT¹⁄₁₆-27 7.895 |
NPT⅛-27 (φ4以上) 10.242 |
0.9407 | 4.8 | 18 | 70 | 6 | – | 0.03 |
| EDT-NPT1/8-19-ATH | ● | NPT⅛-27 10.242 |
– | 0.9407 | 5.7 | 19 | 70 | 6 | – | 0.03 |
| EDT-NPT1/4-28-ATH | ● | NPT¼-18 13.616 |
NPT⅜-18 (φ6以上) 17.055 |
1.4111 | 7.9 | 28 | 80 | 10 | – | 0.045 |
| EDT-NPT3/8-28-ATH | ● | NPT⅜-18 17.055 |
– | 1.4111 | 9.6 | 28 | 80 | 10 | – | 0.045 |
| EDT-NPT1/2-35-ATH | ● | NPT½-14 21.224 |
NPT¾-14 (φ8以上) 26.569 |
1.8143 | 11.5 | 35 | 110 | 12 | – | 0.058 |
| EDT-NPT1-45-ATH | ● | – | NPT1-11.5 (φ10以上) 33.228 |
2.2087 | 15.4 | 45 | 135 | 16 | – | 0.071 |
●: Stocked items.
Thread diameter which requires pilot hole can not be used without larger pilot hole than the values shown in the table.
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Order No. | EDT-NPT1/16-18-ATH |
| Pitch | 0.9407 |
| Under neck length | 18 |
| Overall length | 70 |
| Shank dia | 6 |
