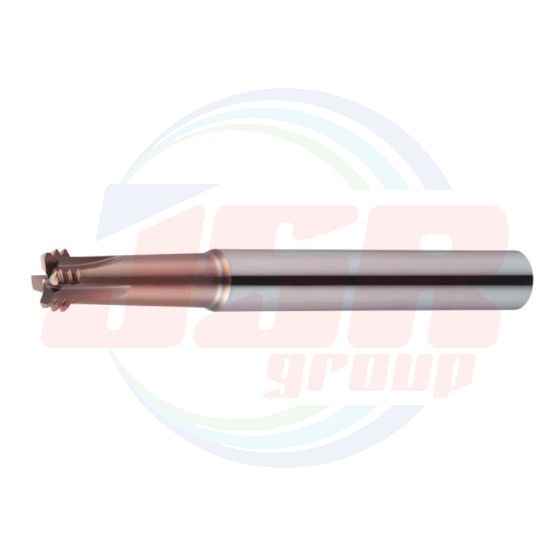

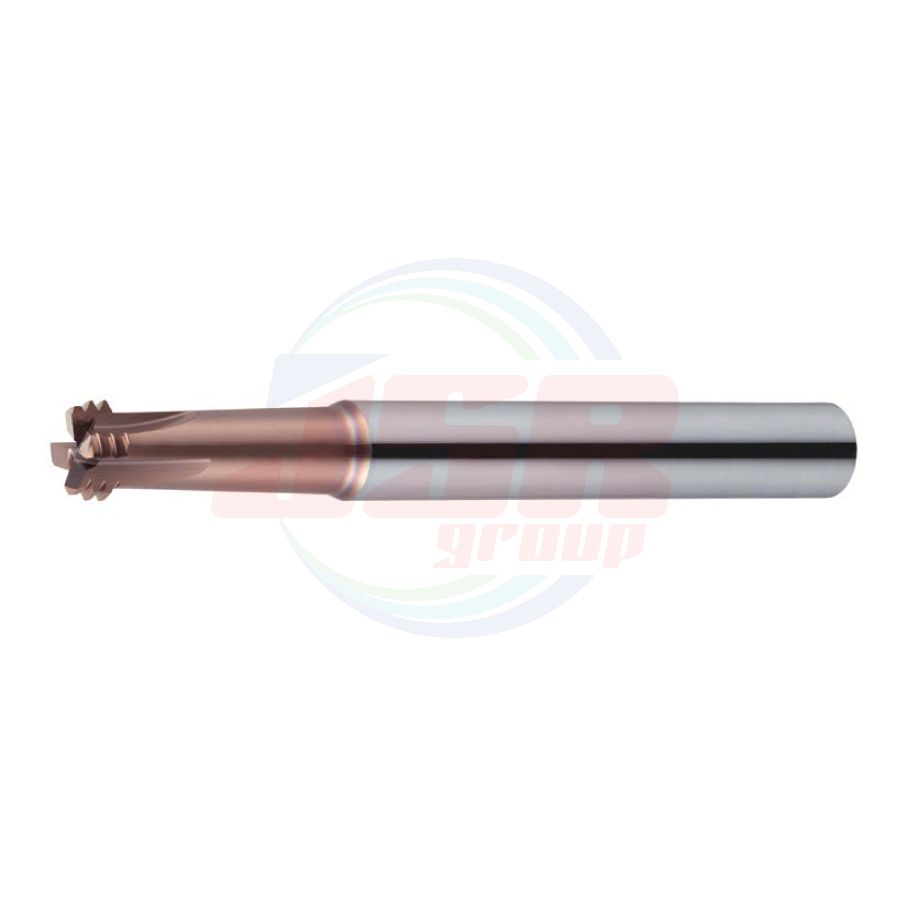

EDT-PT-ATH | Epoch D Thread Mill for PT Threads | MOLDINO
ราคาต่ำสุด
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
EDT-PT-ATH
QTY:
0
| for PT(Rc) threads | Stock | Thread dia. | Pitch |
Reference dia. |
Under neck length |
Overall length |
Shank dia. |
Oil Hole |
Thread diameter compensation value |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Item code | Pilot hole not required |
Pilot hole required (pilot hole diameter) |
||||||||
| D1 | D1 | TP | DC | LU | OAL | DCONMS | D2 | |||
| EDT-PT1/16-18-ATH | ● | PT¹⁄₁₆-28 7.723 |
PT⅛-28 (φ4以上) 9.728 |
0.9071 | 4.8 | 18 | 70 | 6 | – | 0.029 |
| EDT-PT1/8-19-ATH | ● | PT⅛-28 9.728 |
– | 0.9071 | 5.7 | 19 | 70 | 6 | – | 0.029 |
| EDT-PT1/4-28-ATH | ● | PT¼-19 13.157 |
PT⅜-19 (φ6以上) 16.662 |
1.3368 | 7.9 | 28 | 80 | 10 | – | 0.043 |
| EDT-PT3/8-28-ATH | ● | PT⅜-19 16.662 |
– | 1.3368 | 9.6 | 28 | 80 | 10 | – | 0.043 |
| EDT-PT1/2-35-ATH | ● | PT½-14 20.955 |
PT¾-14 (φ8以上) 26.441 |
1.8143 | 11.5 | 35 | 110 | 12 | – | 0.058 |
| EDT-PT1-45-ATH | ● | – | PT1-11 (φ10以上) 33.249 |
2.3091 | 15.4 | 45 | 135 | 16 | – | 0.074 |
●: Stocked items.
Thread diameter which requires pilot hole can not be used without larger pilot hole than the values shown in the table.
| แบรนด์สินค้า | MOLDINO |
|---|
