EFB | Epoch Fine Ball Migaki | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
EFB
QTY:
0
±0.005
2 Flutes

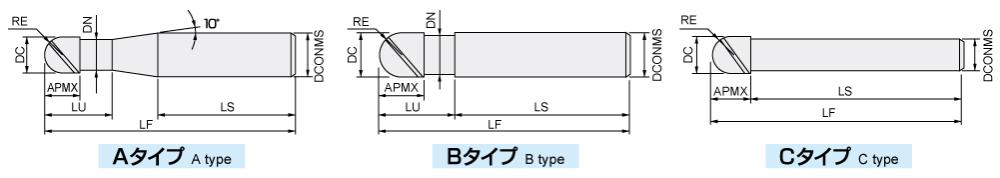

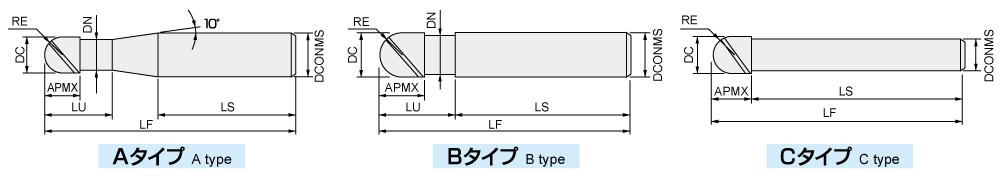

| Item code | Stock | Size (mm) | Shape | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ball radius RE |
Tool dia. DC |
Flute length APMX |
Neck dia. DN |
Under neck length LU |
Shank length LS |
Overall length LF |
Shank dia. DCONMS |
|||
| EFB2010 | ● | 0.5 | 1 | 1 | 0.95 | 2.2 | 39.2 | 50 | 4 | A |
| EFB2015 | ● | 0.75 | 1.5 | 1.5 | 1.4 | 3 | 39.6 | 50 | 4 | A |
| EFB2020 | ● | 1 | 2 | 2 | 1.9 | 4 | 34.4 | 50 | 6 | A |
| EFB2025 | ● | 1.25 | 2.5 | 2.5 | 2.4 | 5 | 34.8 | 50 | 6 | A |
| EFB2030 | ● | 1.5 | 3 | 3 | 2.9 | 6 | 55.2 | 70 | 6 | A |
| EFB2040 | ● | 2 | 4 | 4 | 3.9 | 8 | 56 | 70 | 6 | A |
| EFB2050 | ● | 2.5 | 5 | 5 | 4.9 | 10 | 66.9 | 80 | 6 | A |
| EFB2060 | ● | 3 | 6 | 6 | 5.9 | 12 | 78 | 90 | 6 | B |
| EFB2070 | ● | 3.5 | 7 | 7 | — | — | 83 | 90 | 6 | C |
| EFB2080 | ● | 4 | 8 | 8 | 7.9 | 16 | 84 | 100 | 8 | B |
| EFB2100 | ● | 5 | 10 | 10 | 9.9 | 20 | 80 | 100 | 10 | B |
| EFB2120 | ● | 6 | 12 | 12 | 11.9 | 24 | 86 | 110 | 12 | B |
| แบรนด์สินค้า | MOLDINO |
|---|
