EH COUNTER

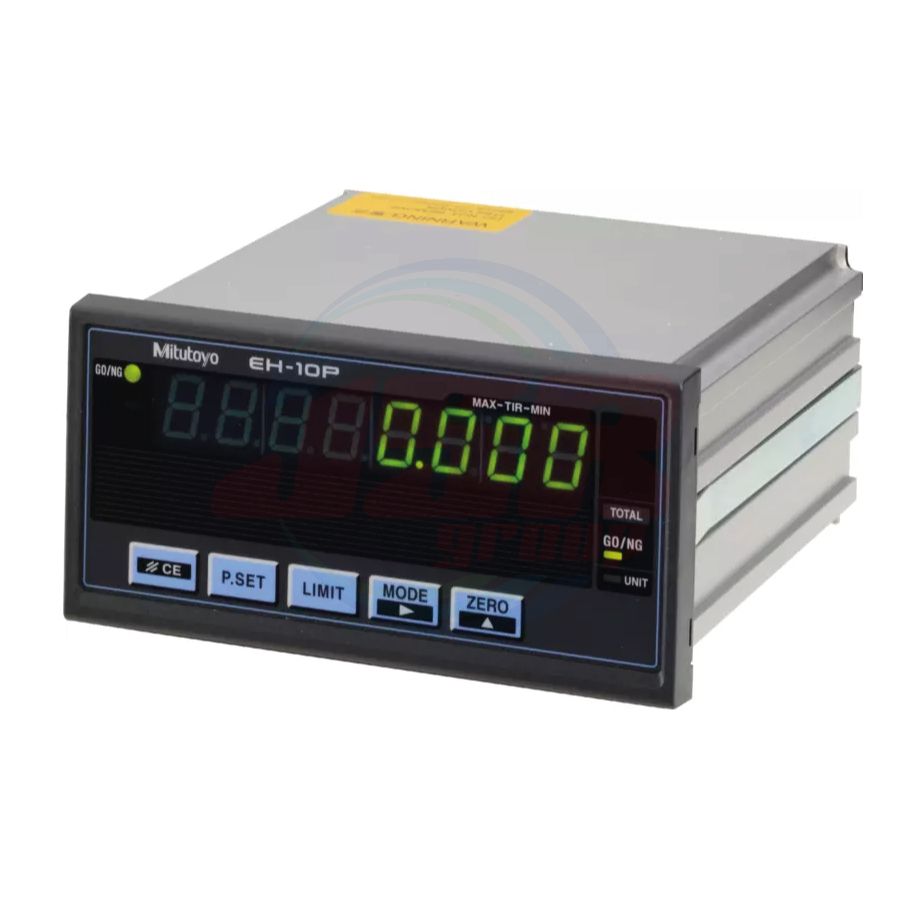

• 1-axis display type, and 2-axis independent display type or 2-axis type that can display sum/difference calculation results are available.
• Multi-functional counter with functions of zero-set, preset, and tolerance judgment
• Equipped with an RS-232C interface as standard. This allows data transfer to a personal computer, etc.
• A multi-point measuring system can easily be built up with the built-in networking function (RS link). (Max. 10 points)
• Employs the DIN size (144×72 mm) and mount-on-panel configuration, which greatly facilitates incorporation into a system.
Specifications
1-axis input type and 2-axis input type counters are available.
| Order No. | 542-075*¹ | 542-071*¹ | 542-073*¹ | 542-072*¹ | |
| Model | EH-101P | EH-102P | EH-102Z | EH-102D | |
| Number of axes to be displayed | 1 axis | 2 axes | |||
| Maximum input frequency | 2.5 MHz (2-phase square wave) | ̶ | |||
| Resolution | 0.01 mm/0.005 mm/0.001 mm/0.0005 mm/0.0001 mm 0.0005 in/0.00005 in/0.00005 in/0.000005 in/0.000005 in (selection by the parameter) |
Automatic setting by gage | |||
| Tolerance judgment display | LED display (3 steps: Amber, Green, Red /5 steps: Amber, Amber flashing, Green, Red flashing, Red) | ||||
| Interface | RS-232C/USB/parameter selection via Digimatic (only DP-1VA LOGGER, Digimatic Mini-processor can be connected) (USB used only with SENSORPAK.) Selection by parameter from 3-step, 5-step, or digit BCD Total tolerance judgment output (when tolerance function is enabled) Analog output (1 V to 4 V) |
||||
| Input/output | Control output | Open-collector | |||
| Control input | Display BANK switching, peak mode, presetting, display hold, hold per axis: open-collector | ||||
| Power supply | Voltage | Supplied AC adapter (Jack input) | |||
| Consumption | 8.4 W (max. 700 mA) Ensure at least 1 A is available per unit. | ||||
| Operating temperature (humidity) | 0 to 40 °C (RH 20 to 80%, non-condensing) | ||||
| Storage temperature (humidity) | –10 to 50 °C (RH 20 to 80%, non-condensing) | ||||

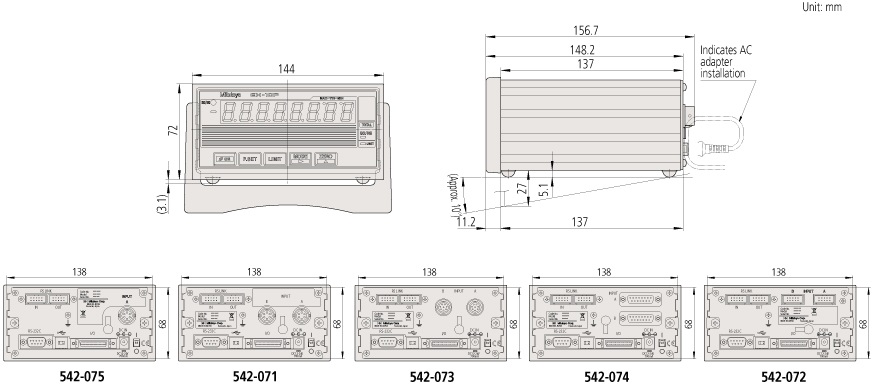

| External dimensions | 144 (W) ×72 (H) ×156.7 (D) mm | ||||
| Optional accessories | I/O output connector (with cover): 02ADB440 | ||||
| Standard accessories | AC adapter: 357651/AC cable: 02ZAA000, AC cable (Japan): 02ZAA000*¹, AC cable (USA): 02ZAA010*1, AC cable (EU): 02ZAA020*¹, AC cable (UK): 02ZAA030*¹, AC cable (China): 02ZAA040*¹, AC cable (Korea): 02ZAA050*¹ |
||||
| Applicable gage head | LG100/LG200 A conversion plug 21HZA195 is required*² |
LG100/LG200 (A conversion plug 21HZA196 is required) |
LGS, ID | ||
| Mass | Approx. 760 g | Approx. 800 g | Approx. 800 g | prox. 800 g | |
*1 To denote your AC power cable add the following suffixes to the order No.: A for UL/CSA, D for CEE, DC for CCC, E for BS, K for KC, C and No suffix are required for PSE.
For those models of the Order No. with Suffix "1", an AC adapter is not supplied as a standard accessory.
*2 The origin point detection function is disabled.
