Product Features
- The EH-HT tap is suitable for tapping high hardness material from 35 to 45 HRC like high carbon steel, alloy steel forging,
thermal refined material and metal mold material. - Tool life was greatly improved by utilizing a cutting edge shape suitable for difficult cutting materials . The EH-HT taps exhibit an excellent wear resistance.
- There are two chamfer types available, 2.5P for blind hole and 5P for through hole.

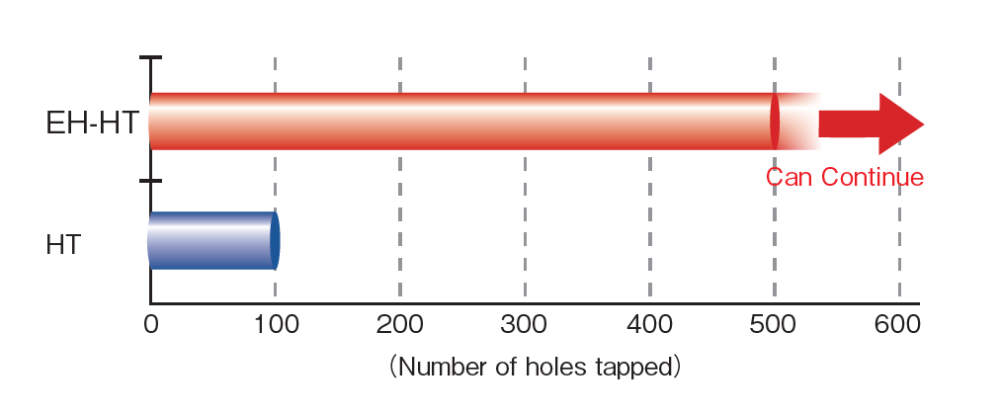

Tapping Data
Tapping conditions [M6×1 P3]
|
Tap Used |
EH-HT M6×1 5P |
 |
|
Workpiece Material |
SCM440/Gear |
|
|
Bored Hole |
φ5 |
|
|
Tapping Length |
10mm through hole |
|
|
Tapping Speed |
9m/min |
|
|
Machinery Type |
CNC vertical machining center (asynchronous) |
|
|
Holder Type |
With tension compression |
|
|
Tapping Fluid |
Insoluble cutting fluid |
|
|
Holes tapped |
500 holes (can continue tapping) |

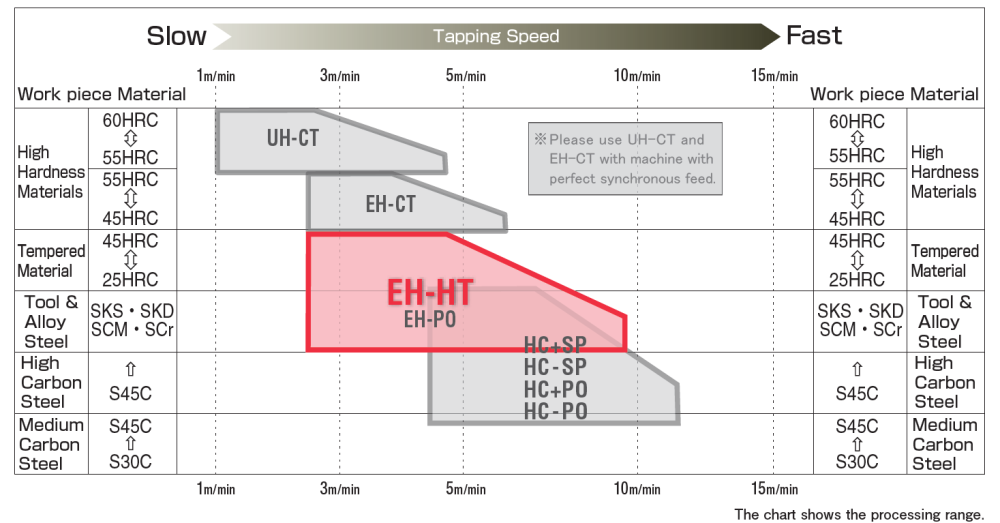

Product System Chart

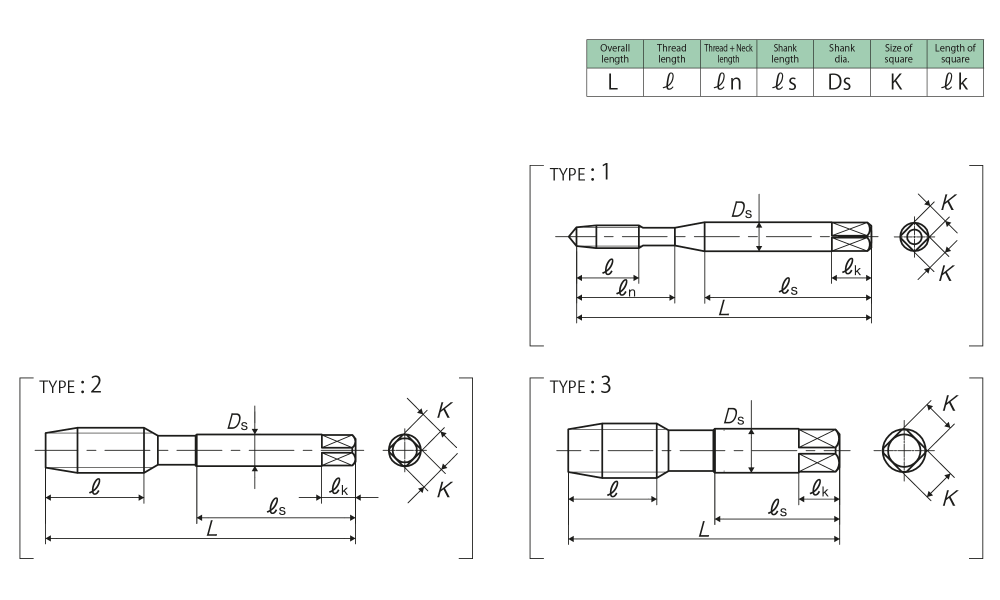

Specification
Tapping Speeds depending on Materials
Segment：1B
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P3 |
ETHMR3.0G5 |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M3×0.5 |
P3 |
ETHMR3.0G1 |
2.5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P3 |
ETHMR4.0I5 |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
P3 |
ETHMR4.0I1 |
2.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
ETHMR5.0K5 |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
ETHMR5.0K1 |
2.5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
ETHMR6.0M5 |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
ETHMR6.0M1 |
2.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P4 |
ETHMS8.0N5 |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
4 |
2 |
|
M8×1.25 |
P4 |
ETHMS8.0N1 |
2.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
4 |
2 |
|
M10×1.5 |
P4 |
ETHMS010O5 |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
|
M10×1.5 |
P4 |
ETHMS010O1 |
2.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
|
M10×1.25 |
P4 |
ETHMS010N5 |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
|
M10×1.25 |
P4 |
ETHMS010N1 |
2.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
|
M12×1.75 |
P4 |
ETHMS012P5 |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
|
M12×1.75 |
P4 |
ETHMS012P1 |
2.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
|
M12×1.5 |
P4 |
ETHMS012O5 |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
|
M12×1.5 |
P4 |
ETHMS012O1 |
2.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
|
M12×1.25 |
P4 |
ETHMS012N5 |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
|
M12×1.25 |
P4 |
ETHMS012N1 |
2.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
|
M14×2 |
P5 |
ETHMT014Q5 |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
2 |
|
M14×2 |
P5 |
ETHMT014Q1 |
2.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
2 |
|
M14×1.5 |
P4 |
ETHMS014O5 |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
2 |
|
M14×1.5 |
P4 |
ETHMS014O1 |
2.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
2 |
|
M16×2 |
P5 |
ETHMT016Q5 |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
2 |
|
M16×2 |
P5 |
ETHMT016Q1 |
2.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
2 |
|
M16×1.5 |
P4 |
ETHMS016O5 |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
2 |
|
M16×1.5 |
P4 |
ETHMS016O1 |
2.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
2 |
|
M18×2.5 |
P5 |
ETHMT018R5 |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×2.5 |
P5 |
ETHMT018R1 |
2.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×1.5 |
P4 |
ETHMS018O5 |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×1.5 |
P4 |
ETHMS018O1 |
2.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M20×2.5 |
P5 |
ETHMT020R5 |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M20×2.5 |
P5 |
ETHMT020R1 |
2.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M20×1.5 |
P4 |
ETHMS020O5 |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M20×1.5 |
P4 |
ETHMS020O1 |
2.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M22×2.5 |
P5 |
ETHMT022R5 |
5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M22×2.5 |
P5 |
ETHMT022R1 |
2.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M22×1.5 |
P4 |
ETHMS022O5 |
5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M22×1.5 |
P4 |
ETHMS022O1 |
2.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M24×3 |
P5 |
ETHMT024S5 |
5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
|
M24×3 |
P5 |
ETHMT024S1 |
2.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
|
M24×1.5 |
P4 |
ETHMS024O5 |
5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
|
M24×1.5 |
P4 |
ETHMS024O1 |
2.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
|
M27×3 |
P5 |
ETHMT027S5 |
5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
3 |
|
M27×3 |
P5 |
ETHMT027S1 |
2.5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
3 |
|
M30×3.5 |
P5 |
ETHMT030T5 |
5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
3 |
|
M30×3.5 |
P5 |
ETHMT030T1 |
2.5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
3 |
