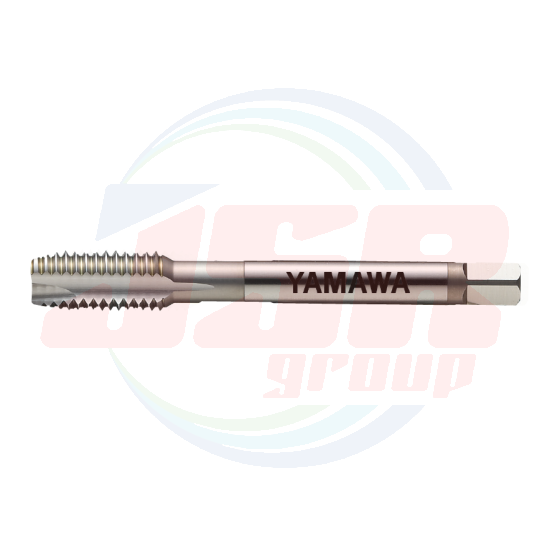

EH-PO (Metric Threads) | Spiral Pointed Taps for Hard-to-Machine Materials | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 374.50
พร้อมส่ง
SKU
EH-PO
Product Features
- The EH-PO taps are suitable for high hardness materials from 30 to 45 HRC in high carbon steel, alloy steel forging, tempering material and mold materials.
- Tool life is greatly improved using a cutting edge shape suitable for difficult to machine materials. The tap exhibits excellent wear resistance.
- For through hole applications.

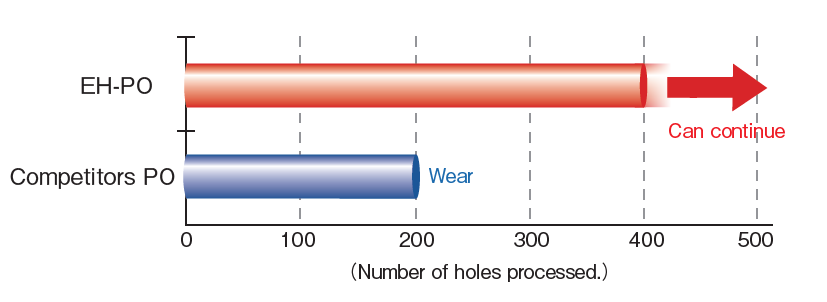

Tapping Data
Processing conditions [Ｍ10×１.25 P4]
| Workpiece Material | S55C/A hub |
| Bored Hole Size | φ8.8 |
| Tapping Length | 11mm（Through hole） |
| Tapping Speed | 10m/min |
| Machinery Type | Vertical machining center (asynchronous) |
| Holder | With tension |
| Tapping Fluid | Water soluble cutting fluid |
Recommendation chart
Specification
Tapping Speeds depending on Materials
25〜35HRC 35〜45HRC
Segment：1E
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P3 |
EPHMR3.0G |
4.5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P3 |
EPHMR4.0I |
4.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
EPHMR5.0K |
4.5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
EPHMR6.0M |
4.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P4 |
EPHMS8.0N |
4.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P4 |
EPHMS010O |
4.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P4 |
EPHMS010N |
4.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
EPHMS012P |
4.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P4 |
EPHMS012O |
4.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
EPHMS012N |
4.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P5 |
EPHMT014Q |
4.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P4 |
EPHMS014O |
4.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P5 |
EPHMT016Q |
4.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P4 |
EPHMS016O |
4.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P5 |
EPHMT018R |
4.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M18×1.5 |
P4 |
EPHMS018O |
4.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M20×2.5 |
P5 |
EPHMT020R |
4.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
M20×1.5 |
P4 |
EPHMS020O |
4.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
M22×2.5 |
P5 |
EPHMT022R |
4.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
3 |
|
M22×1.5 |
P4 |
EPHMS022O |
4.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
3 |
|
M24×3 |
P5 |
EPHMT024S |
4.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
3 |
3 |
|
M24×1.5 |
P4 |
EPHMS024O |
4.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
3 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|
