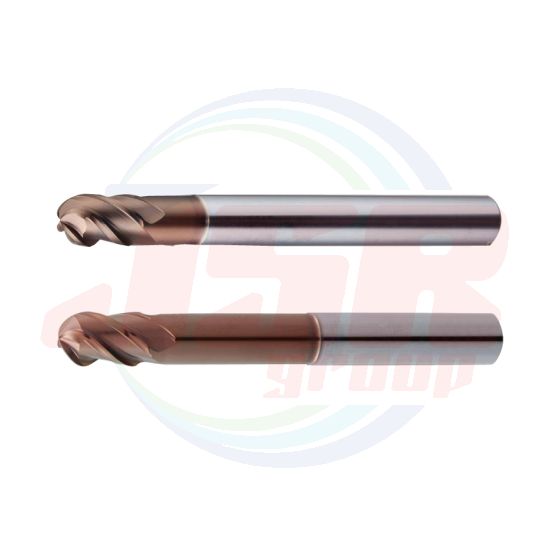

EHHBE-TH3 | Epoch High Hard Ball-TH3 | MOLDINO

ราคาต่ำสุด THB 0.00

*ราคายังไม่รวม VAT

พร้อมส่ง

SKU

EHHBE-TH3

QTY:

Item code

Tool dia.

QTY

File PDF

4 Flutes

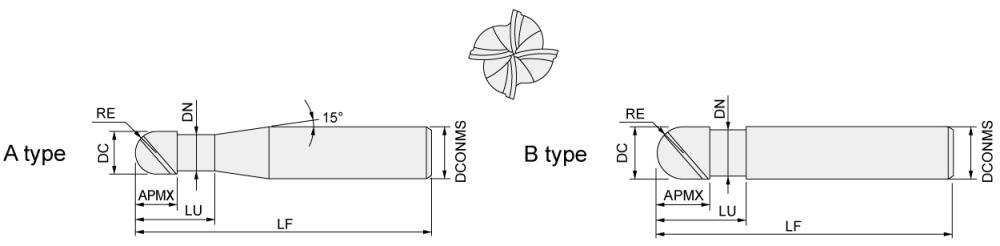

Item code	Stock	Size (mm)							No. of flutes	Type
		Ball radius	Tool dia.	Flute length	Under neck length	Neck dia.	Overall length	Shank dia.
		RE	DC	APMX	LU	DN	LF	DCONMS
EHHBE4010-S4-TH3	●	0.5	1	1.5	3	0.95	50	4	4	A
EHHBE4010-S6-TH3	●				3			6
EHHBE4010-5-S4-TH3	●				5			4
EHHBE4010-5-S6-TH3	●				5		55	6
EHHBE4015-S4-TH3	●	0.75	1.5	2.5	4.5	1.43	50	4
EHHBE4015-S6-TH3	●				4.5			6
EHHBE4015-7.5-S4-TH3	●				7.5			4
EHHBE4015-7.5-S6-TH3	●				7.5		55	6
EHHBE4020-S4-TH3	●	1	2	3	6	1.9	50	4
EHHBE4020-S6-TH3	●				6			6
EHHBE4020-10-S4-TH3	●				10			4
EHHBE4020-10-S6-TH3	●				10		55	6
EHHBE4025-S4-TH3	●	1.25	2.5	4	7.5	2.38	50	4
EHHBE4025-S6-TH3	●				7.5			6
EHHBE4025-12.5-S4-TH3	●				12.5			4
EHHBE4025-12.5-S6-TH3	●				12.5		60	6
EHHBE4030-S4-TH3	●	1.5	3	4.5	9	2.9	70	4
EHHBE4030-S6-TH3	●				9		70	6
EHHBE4030-15-S4-TH3	●				15		60	4
EHHBE4030-15-S6-TH3	●				15		60	6
EHHBE4040-S4-TH3	●	2	4	6	12	3.9	70	4		B
EHHBE4040-S6-TH3	●				12		70	6		A
EHHBE4040-20-S4-TH3	●				20		60	4		B
EHHBE4040-20-S6-TH3	●				20		60	6		A
EHHBE4050-TH3	●	2.5	5	7.5	15	4.7	80	6		A
EHHBE4050-25-TH3	●	2.5	5	7.5	25	4.7	60	6		A
EHHBE4060-TH3	●	3	6	9	18	5.7	90	6		B
EHHBE4060-30-TH3	●	3	6	9	30	5.7	70	6
EHHBE4080-TH3	●	4	8	12	24	7.6	100	8
EHHBE4080-40-TH3	●	4	8	12	40	7.6	80	8
EHHBE4100-TH3	●	5	10	15	30	9.5	100	10
EHHBE4100-50-TH3	●	5	10	15	50	9.5	90	10
EHHBE4120-TH3	●	6	12	18	36	11.5	110	12
EHHBE4120-60-TH3	●	6	12	18	60	11.5	110	12

● : Stocked items.

ข้อมูลเพิ่มเติม
แบรนด์สินค้า	MOLDINO

4 Flutes
