EMBE-ATH | Epoch Mega Feed Ball Evolution | MOLDINO

MOLDINO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00
พร้อมส่ง
SKU
MOL-EMBE-ATH
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ
PDF EMBE/EMBPE-ATH
EMBE-ATH | Epoch Mega Feed Ball Evolution | MOLDINO
EMBE-ATH | Epoch Mega Feed Ball Evolution | MOLDINO EMBE-ATH | Epoch Mega Feed Ball Evolution | MOLDINO

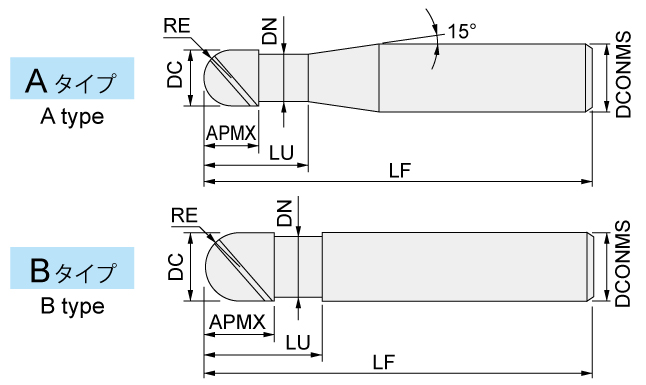

Straight Type 3 Flutes

Item code Stock Size (mm) Shape
Ball radius Tool dia. Flute length Under neck length Neck dia. Overall length Shank dia.
RE DC APMX LU DN LF DCONMS
EMBE3010-S4-ATH ● 0.5 1 1.5 3 0.95 50 4 A
EMBE3010-S6-ATH ● 0.5 1 1.5 3 0.95 50 6 A
EMBE3015-S4-ATH ● 0.75 1.5 2.5 4.5 1.43 50 4 A
EMBE3015-S6-ATH ● 0.75 1.5 2.5 4.5 1.43 50 6 A
EMBE3020-S4-ATH ● 1.0 2 3 6 1.9 50 4 A
EMBE3020-S6-ATH ● 1.0 2 3 6 1.9 50 6 A
EMBE3025-S4-ATH ● 1.25 2.5 4 7.5 2.38 50 4 A
EMBE3025-S6-ATH ● 1.25 2.5 4 7.5 2.38 50 6 A
EMBE3030-S4-ATH ● 1.5 3 4.5 9 2.9 70 4 A
EMBE3030-S6-ATH ● 1.5 3 4.5 9 2.9 70 6 A
EMBE3035-S4-ATH ● 1.75 3.5 5.5 10.5 3.4 70 4 A
EMBE3035-S6-ATH ● 1.75 3.5 5.5 10.5 3.4 70 6 A
EMBE3040-S4-ATH ● 2.0 4 6 12 3.9 70 4 B
EMBE3040-S6-ATH ● 2.0 4 6 12 3.9 70 6 A
EMBE3050-ATH ● 2.5 5 7.5 15 4.7 80 6 A
EMBE3060-ATH ● 3.0 6 9 18 5.7 90 6 B
EMBE3080-ATH ● 4.0 8 12 24 7.6 100 8 B
EMBE3100-ATH ● 5.0 10 15 30 9.5 100 10 B
EMBE3120-ATH ● 6.0 12 18 36 11.5 110 12 B
EMBE3160-ATH ● 8.0 16 24 48 15 140 16 B
EMBE3200-ATH ● 10.0 20 30 60 19 160 20 B

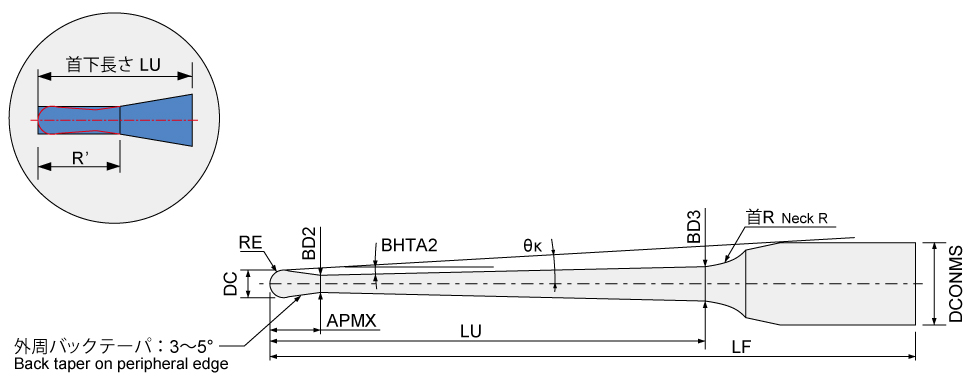

Pencil Neck  3 Flutes
Item code Stock Size (mm) Neck
shape		 Approx
neck
length		 Interference
angle（°）
 Effective under neck length with respect to draft angle
Ball
radius		 Tool
dia.		 Neck
angle		 Under
neck
length		 Flute
length		 Neck
dia.		 Under
neck
dia.		 Overall
length		 Shank
dia.
RE DC BHTA2 LU APMX BD2 BD3 LF DCONMS ℓ' θκ 0.75° 1° 1.5° 2° 3°
EMBPE3010-6-09-ATH ● 0.5 1 0.9 6 0.8 0.94 1.103 50 6 A 2.70 8.36 6.45 6.66 6.96 7.19 7.56
EMBPE3010-8-09-ATH ● 0.5 1 0.9 8 0.8 0.94 1.166 55 6 A 2.70 7.55 8.4 8.68 9.05 9.32 9.93
EMBPE3010-10-09-ATH ● 0.5 1 0.9 10 0.8 0.94 1.229 55 6 A 2.70 6.88 10.33 10.71 11.13 11.43 12.39
EMBPE3010-12-09-ATH ● 0.5 1 0.9 12 0.8 0.94 1.291 60 6 A 2.70 6.32 12.25 12.73 13.2 13.54 14.85
EMBPE3010-14-09-ATH ● 0.5 1 0.9 14 0.8 0.94 1.354 60 6 A 2.70 5.85 13.77 14.75 15.27 15.65 17.31
EMBPE3010-16-09-ATH ● 0.5 1 0.9 16 0.8 0.94 1.417 60 6 A 2.70 5.44 13.77 16.77 17.34 17.87 19.77
EMBPE3010-18-09-ATH ● 0.5 1 0.9 18 0.8 0.94 1.480 65 6 A 2.70 5.08 13.77 18.79 19.4 20.08 22.23
EMBPE3010-20-09-ATH ● 0.5 1 0.9 20 0.8 0.94 1.543 65 6 A 2.70 4.77 13.77 20.81 21.46 22.3 24.68
EMBPE3010-22-09-ATH ● 0.5 1 0.9 22 0.8 0.94 1.606 70 6 A 2.70 4.5 13.77 22.82 23.51 24.52 27.14
EMBPE3010-24-09-ATH ● 0.5 1 0.9 24 0.8 0.94 1.668 70 6 A 2.70 4.25 13.77 24.84 25.57 26.73 29.6
EMBPE3010-26-09-ATH ● 0.5 1 0.9 26 0.8 0.94 1.731 70 6 A 2.70 4.03 13.77 26.86 27.62 28.95 32.06
EMBPE3010-28-09-ATH ● 0.5 1 0.9 28 0.8 0.94 1.794 75 6 A 2.70 3.83 13.77 28.88 29.73 31.17 34.52
EMBPE3010-30-09-ATH ● 0.5 1 0.9 30 0.8 0.94 1.857 75 6 A 2.70 3.65 13.77 30.89 31.84 33.38 36.98
EMBPE3010-32-09-ATH ● 0.5 1 0.9 32 0.8 0.94 1.920 80 6 A 2.70 3.49 13.77 32.91 33.95 35.6 39.43
EMBPE3010-34-09-ATH ● 0.5 1 0.9 34 0.8 0.94 1.983 80 6 A 2.70 3.34 13.77 34.92 36.07 37.82 41.89
EMBPE3010-36-09-ATH ● 0.5 1 0.9 36 0.8 0.94 2.045 80 6 A 2.70 3.2 13.77 36.94 38.18 40.03 44.35
EMBPE3015-8-09-ATH ● 0.75 1.5 0.9 8 1.35 1.42 1.628 55 6 A 3.89 7.32 8.54 8.77 9.1 9.35 9.97
EMBPE3015-10-09-ATH ● 0.75 1.5 0.9 10 1.35 1.42 1.691 55 6 A 3.89 6.63 10.5 10.79 11.17 11.46 12.43
EMBPE3015-14-09-ATH ● 0.75 1.5 0.9 14 1.35 1.42 1.817 60 6 A 3.89 5.57 14.39 14.83 15.31 15.71 17.35
EMBPE3015-16-09-ATH ● 0.75 1.5 0.9 16 1.35 1.42 1.880 60 6 A 3.89 5.16 16.33 16.84 17.37 17.93 19.8
EMBPE3015-18-09-ATH ● 0.75 1.5 0.9 18 1.35 1.42 1.943 65 6 A 3.89 4.81 18.24 18.86 19.43 20.14 22.26
EMBPE3015-20-09-ATH ● 0.75 1.5 0.9 20 1.35 1.42 2.005 65 6 A 3.89 4.5 19.64 20.88 21.49 22.36 24.72
EMBPE3015-22-09-ATH ● 0.75 1.5 0.9 22 1.35 1.42 2.068 70 6 A 3.89 4.22 19.64 22.89 23.55 24.57 27.18
EMBPE3015-24-09-ATH ● 0.75 1.5 0.9 24 1.35 1.42 2.131 70 6 A 3.89 3.98 19.64 24.91 25.6 26.79 29.64
EMBPE3015-26-09-ATH ● 0.75 1.5 0.9 26 1.35 1.42 2.194 70 6 A 3.89 3.77 19.64 26.93 27.68 29.01 32.1
EMBPE3015-28-09-ATH ● 0.75 1.5 0.9 28 1.35 1.42 2.257 75 6 A 3.89 3.58 19.64 28.94 29.79 31.22 34.55
EMBPE3015-30-09-ATH ● 0.75 1.5 0.9 30 1.35 1.42 2.320 75 6 A 3.89 3.4 19.64 30.96 31.91 33.44 37.01
EMBPE3015-32-09-ATH ● 0.75 1.5 0.9 32 1.35 1.42 2.382 80 6 A 3.89 3.24 19.64 32.97 34.02 35.66 39.47
EMBPE3015-34-09-ATH ● 0.75 1.5 0.9 34 1.35 1.42 2.445 80 6 A 3.89 3.1 19.64 34.99 36.13 37.87 41.93
EMBPE3015-36-09-ATH ● 0.75 1.5 0.9 36 1.35 1.42 2.508 80 6 A 3.89 2.97 19.64 37 38.24 40.09 44.35
EMBPE3015-38-09-ATH ● 0.75 1.5 0.9 38 1.35 1.42 2.571 85 6 A 3.89 2.85 19.64 39.02 40.36 42.30 -
EMBPE3015-40-09-ATH ● 0.75 1.5 0.9 40 1.35 1.42 2.634 85 6 A 3.89 2.74 19.64 41.03 42.47 44.52 -
EMBPE3020-10-09-ATH ● 1.0 2 0.9 10 1.7 1.92 2.180 55 6 A 4.24 6.35 10.52 10.80 11.17 11.45 12.38
EMBPE3020-16-09-ATH ● 1.0 2 0.9 16 1.7 1.92 2.369 60 6 A 4.24 4.86 16.36 16.85 17.37 17.91 19.76
EMBPE3020-20-09-ATH ● 1.0 2 0.9 20 1.7 1.92 2.494 65 6 A 4.24 4.20 20.16 20.88 21.49 22.34 24.68
EMBPE3020-24-09-ATH ● 1.0 2 0.9 24 1.7 1.92 2.620 65 6 A 4.24 3.70 20.50 24.92 25.60 26.77 29.59
EMBPE3020-30-09-ATH ● 1.0 2 0.9 30 1.7 1.92 2.809 70 6 A 4.24 3.14 20.50 30.96 31.90 33.42 36.97
EMBPE3020-36-09-ATH ● 1.0 2 0.9 36 1.7 1.92 2.997 80 6 A 4.24 2.73 20.50 37.01 38.24 40.07 -
EMBPE3020-40-09-ATH ● 1.0 2 0.9 40 1.7 1.92 3.123 80 6 A 4.24 2.51 20.50 41.03 42.46 44.50 -
EMBPE3020-46-09-ATH ● 1.0 2 0.9 46 1.7 1.92 3.311 90 6 A 4.24 2.24 20.50 47.08 48.80 51.15 -
EMBPE3020-60-09-ATH ● 1.0 2 0.9 60 1.7 1.92 3.751 100 6 A 4.24 1.79 20.50 61.16 63.59 - -
EMBPE3025-16-09-ATH ● 1.25 2.5 0.9 16 2.0 2.4 2.839 60 6 A 5.18 4.52 16.48 16.90 17.40 17.94 19.77
EMBPE3025-24-09-ATH ● 1.25 2.5 0.9 24 2.0 2.4 3.091 65 6 A 5.18 3.39 24.19 24.96 25.62 26.81 29.60
EMBPE3025-30-09-ATH ● 1.25 2.5 0.9 30 2.0 2.4 3.279 70 6 A 5.18 2.86 24.88 31.01 31.94 33.46 -
EMBPE3025-40-09-ATH ● 1.25 2.5 0.9 40 2.0 2.4 3.593 80 6 A 5.18 2.26 24.88 41.07 42.51 44.54 -
EMBPE3025-50-09-ATH ● 1.25 2.5 0.9 50 2.0 2.4 3.908 90 6 A 5.18 1.87 24.88 51.14 53.07 - -
EMBPE3030-16-09-ATH ● 1.5 3 0.9 16 2.5 2.86 3.284 55 6 A 6.95 4.11 16.67 17.00 17.46 18.05 19.87
EMBPE3030-20-09-ATH ● 1.5 3 0.9 20 2.5 2.86 3.409 60 6 A 6.95 3.50 20.59 21.03 21.57 22.48 24.78
EMBPE3030-24-09-ATH ● 1.5 3 0.9 24 2.5 2.86 3.535 65 6 A 6.95 3.04 24.51 25.06 25.72 26.92 29.70
EMBPE3030-30-09-ATH ● 1.5 3 0.9 30 2.5 2.86 3.724 70 6 A 6.95 2.54 30.35 31.10 32.06 33.56 -
EMBPE3030-40-09-ATH ● 1.5 3 0.9 40 2.5 2.86 4.038 80 6 A 6.95 2.00 34.28 41.16 42.62 - -
EMBPE3030-50-09-ATH ● 1.5 3 0.9 50 2.5 2.86 4.352 90 6 A 6.95 1.65 34.28 51.22 53.18 - -
EMBPE3030-60-09-ATH ● 1.5 3 0.9 60 2.5 2.86 4.666 100 6 A 6.95 1.40 34.28 61.28 - - -
More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MOLDINO
Dimension

Straight Type 3 Flutes



Pencil Neck  3 Flutes
