Advanced motorized test stand has capacity of 1000N and is equipped with the highest functions. Wide range of measuring speed (0.5 to 600mm/min) and travel setting are available for more diverse and various measurement. High rigidity enables precise measurement. Equipped with a contact point detection function and a function to memorize up to 5 measurement conditions, which greatly improves measurement efficiency.
Feature
- Achieves high repeatability with constant testing speed and angle, high rigidity (Max 0.25mm)
- Handles various testing such as durability or compression testing with wide range speed (0.5～600mm/min), setting of testing cycles and travel distance, and timer function (pausing time)
- Handles a wide range of testing applications to meet your requirements with options such as -FA (inner linear scale) and -L (long stroke)
- Enhances testing efficiency and safety with I/O for external signals, allowing for communication for interlock and starting operation, etc.
- Enhances testing efficiency with useful functions, including automatically detects contact point, operating pattern memory (up to 5 patterns) and automatic speed change at a set force value *Requires certain models of force gauge and optional cable.
| Features | |
|
Highest Repeatability ･Applies constant testing speed and direction ･Most rugged design minimizing influence of deformation (max. 0.25mm) ･Smooth motion by ball screw mechanism ･Digital setting of travel distance by 0.1mm |
Easy Operation ･Easy set-up mode ･Ergonomically inclined control panel ･Dial operation for digital setting ･4 testing modes to meet testing requirements |
|
Versatility for a wide variety of testing ･Wide speed range from 0.5 to 600 mm/min ･Ideal for durability test by setting the number of test cycles ･Timer function for compression testing allows pausing at a set force value (*1) ･Designed for mounting a wide range of grips and fixtures ･External signal input is equipped |
Functions improving test efficiency ･Automatically detects contact point (*1) ･Up to 5 testing patterns can be stored or copied ･Automatically changes traveling and measuring speed at a set force value (*1) ･Starts software together with test stand motion (*1) ･Stops or Returns force gauge when it senses that test sample is broken (*1*2) |
*1 Requires certain models of force gauge and optional cable. 1 / 7
*2 This function is not able to be used together with CONTACT DETECTION.
Specifications
| Model | EMX-500N | EMX-1000N |
| Capacity | 500N (500kgf) | 1000N (100kgf) |
| Speed | 0.5-600mm/min | 0.5-600mm/min |
| Max. Sample Height *1 | 295mm | 320mm |

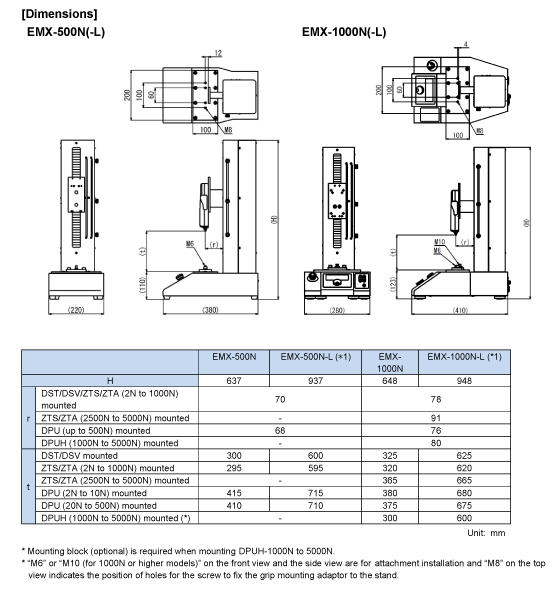

| Dimensions | Approx. W220 x D380 x H637mm |
Approx. W220 x D380 x H637mm |
| Weight | Approx. 19 kg | Approx. 24 kg |
*1 Max. sample height refers to the distance between the table and the tip of force gauge measuring shaft when the head is at the top. (MX2-500N/MX2-1000N: up to 1000N model of ZTS/ZTA series, MX2-2500N/MX2-5000N: With over 2500N model of ZTS/ZTA series is mounted.)
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | EMX-Series |
