EP-A3 | ELECTRIC MARKING PENCIL | NIIGATA SEIKI (SK)

 USE :

• Iron, steel, hard metal marking

MATERIAL :

• Body : Steel

FEATURES

• Capable of marking conductive metals(iron, steel, stainless steel) Hard clean surface can be marked

  (Copper, aluminum, carbide can not be marked. Black oxide coated can not be marked because of poor conductance.)

• Tip alloy has superior abrasion resistance and electrical conductance

SPECIFICATIONS

• Rated voltage: 100V

• Rated frequency: 50-60Hz

• Rated current: 4.2A

• Fuse: 5A (Diameter 6.4mm×Length 30mm)

• Power cord: 1.6m

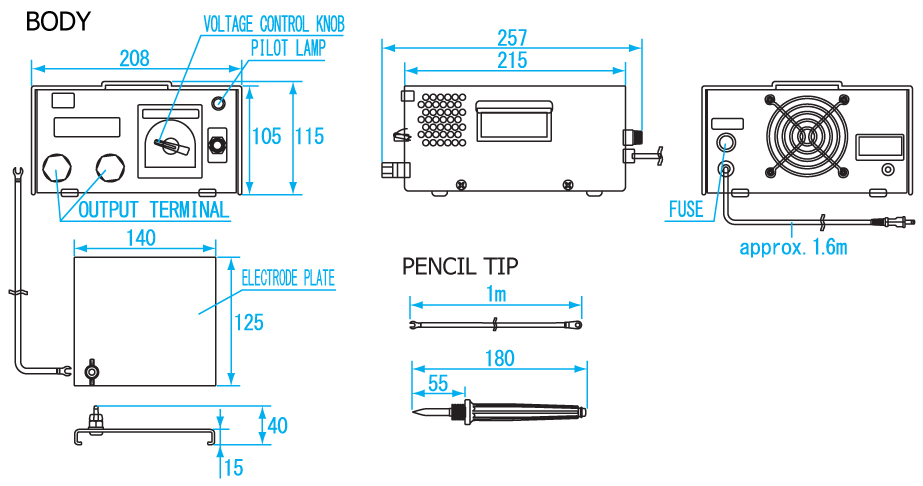

• Product dimensions: (W)115 x (D) 208 x (H) 257mm

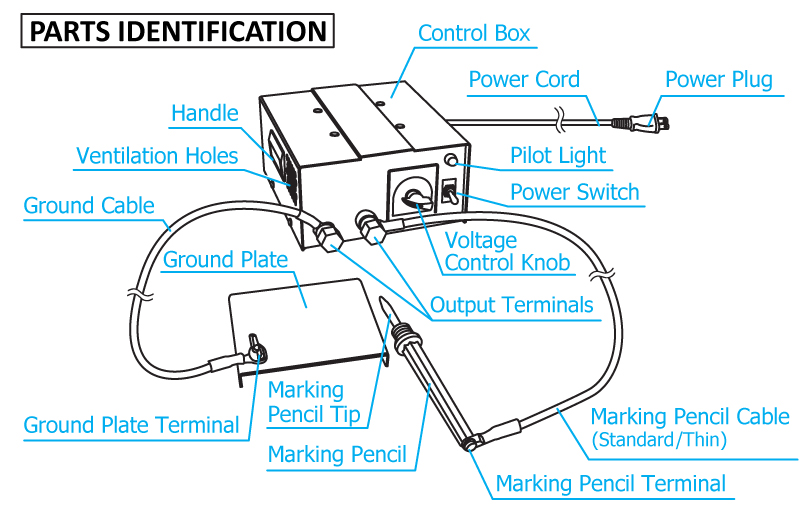

• Accessories includes:

  Cable with marking pen (approx. 1m)

  Cable with fine marking pen (approx. 1m)

  Grounding plate, Ground cable (approx. 1m)

Application Table] (○…possible to mark     ×…will not mark)
