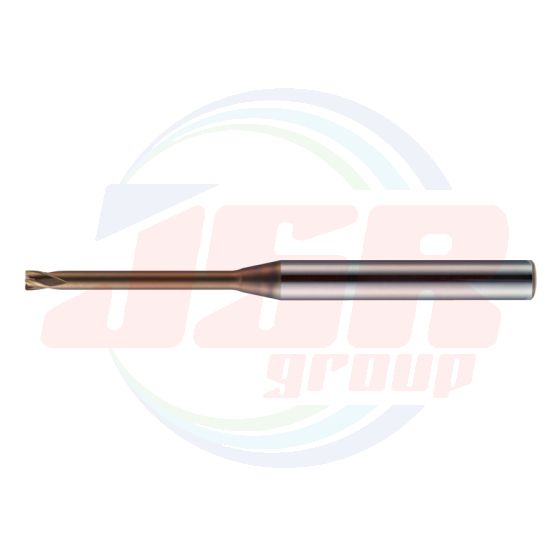

EPDRF-TH | Epoch Deep Radius F | MOLDINO
EPDRF-TH | Epoch Deep Radius F | MOLDINO

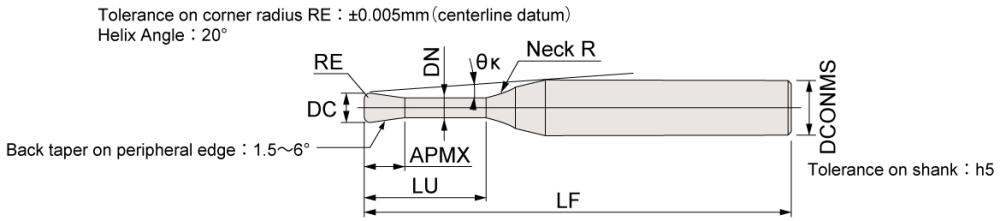

±0.005（中心基準 central axis）



4 Flutes



High-accuracy deep radius mill

商品コード
Item code		 在庫
Stock		 寸　法 Size(mm)

勾配角に対する実有効首下長
Effective under neck length

with respect to draft angle
外径
Tool dia.		 コーナ半径
Corner radius		 首下長
Under neck
length		 刃長
Flute
length		 首径
Neck dia.		 全長
Overall
length		 シャンク径
Shank dia.		 首R
Neck R		 干渉角度
Interference
angle (°)
DC RE LU APMX DN LF DCONMS θK 0.5° 1° 1.5° 2° 3°
EPDRF4010-4-005-TH ● 1 0.05 4 0.8 0.94 50 4 4 7.67 4.75 4.95 5.13 5.28 5.56
EPDRF4010-6-005-TH ● 6 0.8 0.94 50 4 4 6.51 6.84 7.09 7.3 7.49 8.13
EPDRF4010-8-005-TH ● 8 0.8 0.94 50 4 4 5.66 8.92 9.21 9.46 9.73 10.78
EPDRF4010-10-005-TH ● 10 0.8 0.94 50 4 4 5 10.99 11.32 11.59 12.12 13.44
EPDRF4010-12-005-TH ● 12 0.8 0.94 60 4 4 4.48 13.06 13.42 13.84 14.51 16.09
EPDRF4010-16-005-TH ● 16 0.8 0.94 60 4 4 3.71 17.18 17.6 18.4 19.3 21.4
EPDRF4010-20-005-TH ● 20 0.8 0.94 60 4 4 3.17 21.29 21.93 22.96 24.09 26.71
EPDRF4010-4-01-TH ● 0.1 4 0.8 0.94 50 4 4 7.7 4.74 4.95 5.12 5.28 5.55
EPDRF4010-6-01-TH ● 6 0.8 0.94 50 4 4 6.54 6.83 7.09 7.3 7.49 8.11
EPDRF4010-8-01-TH ● 8 0.8 0.94 50 4 4 5.68 8.91 9.21 9.45 9.72 10.77
EPDRF4010-10-01-TH ● 10 0.8 0.94 50 4 4 5.02 10.99 11.32 11.59 12.11 13.42
EPDRF4010-12-01-TH ● 12 0.8 0.94 60 4 4 4.5 13.06 13.42 13.83 14.5 16.08
EPDRF4010-16-01-TH ● 16 0.8 0.94 60 4 4 3.72 17.18 17.6 18.39 19.29 21.39
EPDRF4010-20-01-TH ● 20 0.8 0.94 60 4 4 3.17 21.29 21.93 22.95 24.08 26.7
EPDRF4015-4-005-TH ● 1.5 0.05 4 1.35 1.42 50 4 4 7.12 4.8 4.99 5.16 5.31 5.59
EPDRF4015-8-005-TH ● 8 1.35 1.42 50 4 4 5.1 8.96 9.25 9.48 9.78 10.85
EPDRF4015-12-005-TH ● 12 1.35 1.42 60 4 4 3.97 13.09 13.45 13.89 14.57 16.16
EPDRF4015-15-005-TH ● 15 1.35 1.42 60 4 4 3.41 16.18 16.58 17.31 18.16 20.14
EPDRF4015-20-005-TH ● 20 1.35 1.42 60 4 4 2.76 21.32 21.98 23.01 24.14 –
EPDRF4015-4-01-TH ● 0.1 4 1.35 1.42 50 4 4 7.15 4.8 4.99 5.16 5.31 5.58
EPDRF4015-8-01-TH ● 8 1.35 1.42 50 4 4 5.12 8.96 9.24 9.48 9.77 10.83
EPDRF4015-12-01-TH ● 12 1.35 1.42 60 4 4 3.98 13.09 13.45 13.88 14.56 16.14
EPDRF4015-15-01-TH ● 15 1.35 1.42 60 4 4 3.42 16.18 16.58 17.3 18.15 20.12
EPDRF4015-20-01-TH ● 20 1.35 1.42 60 4 4 2.76 21.32 21.98 23.01 24.13 –
EPDRF4020-4-005-TH ● 2 0.05 4 1.7 1.92 50 4 4 6.46 4.8 4.99 5.16 5.31 5.59
EPDRF4020-6-005-TH ● 6 1.7 1.92 50 4 4 5.27 6.88 7.13 7.33 7.52 8.19
EPDRF4020-8-005-TH ● 8 1.7 1.92 50 4 4 4.46 8.96 9.25 9.48 9.78 10.85
EPDRF4020-12-005-TH ● 12 1.7 1.92 60 4 4 3.4 13.09 13.45 13.89 14.57 16.16
EPDRF4020-16-005-TH ● 16 1.7 1.92 60 4 4 2.75 17.21 17.63 18.45 19.36 –
EPDRF4020-20-005-TH ● 20 1.7 1.92 60 4 4 2.31 21.32 21.98 23.01 24.14 –
EPDRF4020-4-01-TH ● 0.1 4 1.7 1.92 50 4 4 6.49 4.8 4.99 5.16 5.31 5.58
EPDRF4020-6-01-TH ● 6 1.7 1.92 50 4 4 5.3 6.88 7.12 7.33 7.51 8.18
EPDRF4020-8-01-TH ● 8 1.7 1.92 50 4 4 4.47 8.96 9.24 9.48 9.77 10.83
EPDRF4020-12-01-TH ● 12 1.7 1.92 60 4 4 3.41 13.09 13.45 13.88 14.56 16.14
EPDRF4020-16-01-TH ● 16 1.7 1.92 60 4 4 2.76 17.21 17.62 18.44 19.35 –
EPDRF4020-20-01-TH ● 20 1.7 1.92 60 4 4 2.31 21.32 21.98 23.01 24.13 –
EPDRF4020-4-02-TH ● 0.2 4 1.7 1.92 50 4 4 6.57 4.79 4.98 5.15 5.3 5.57
EPDRF4020-6-02-TH ● 6 1.7 1.92 50 4 4 5.35 6.88 7.12 7.32 7.5 8.14
EPDRF4020-8-02-TH ● 8 1.7 1.92 50 4 4 4.51 8.95 9.24 9.47 9.75 10.8
EPDRF4020-12-02-TH ● 12 1.7 1.92 60 4 4 3.43 13.09 13.44 13.87 14.54 16.11
EPDRF4020-16-02-TH ● 16 1.7 1.92 60 4 4 2.77 17.21 17.62 18.43 19.33 –
EPDRF4020-20-02-TH ● 20 1.7 1.92 60 4 4 2.32 21.32 21.97 22.99 24.11 –
EPDRF4020-25-02-TH ● 25 1.7 1.92 70 4 4 1.93 26.44 27.42 28.69 – –
EPDRF4020-30-02-TH ● 30 1.7 1.92 70 4 4 1.66 31.55 32.87 34.4 – –
EPDRF4020-4-03-TH ● 0.3 4 1.7 1.92 50 4 4 6.64 4.79 4.97 5.14 5.29 5.55
EPDRF4020-8-03-TH ● 8 1.7 1.92 50 4 4 4.55 8.95 9.23 9.47 9.73 10.77
EPDRF4020-12-03-TH ● 12 1.7 1.92 60 4 4 3.45 13.09 13.44 13.85 14.52 16.08
EPDRF4020-16-03-TH ● 16 1.7 1.92 60 4 4 2.79 17.21 17.61 18.42 19.31 –
EPDRF4020-20-03-TH ● 20 1.7 1.92 60 4 4 2.33 21.31 21.96 22.98 24.09 –
EPDRF4020-4-05-TH ● 0.5 4 1.7 1.92 50 4 4 6.8 4.78 4.96 5.12 5.26 5.53
EPDRF4020-6-05-TH ● 6 1.7 1.92 50 4 4 5.5 6.86 7.1 7.3 7.48 8.05
EPDRF4020-8-05-TH ● 8 1.7 1.92 50 4 4 4.62 8.94 9.22 9.45 9.7 10.7
EPDRF4020-12-05-TH ● 12 1.7 1.92 60 4 4 3.5 13.08 13.43 13.83 14.48 16.01
EPDRF4020-16-05-TH ● 16 1.7 1.92 60 4 4 2.81 17.2 17.61 18.39 19.27 –
EPDRF4020-20-05-TH ● 20 1.7 1.92 60 4 4 2.35 21.31 21.95 22.95 24.06 –
EPDRF4020-25-05-TH ● 25 1.7 1.92 70 4 4 1.95 26.43 27.39 28.65 – –
EPDRF4020-30-05-TH ● 30 1.7 1.92 70 4 4 1.67 31.54 32.84 34.36 – –
EPDRF4025-8-01-TH ● 2.5 0.1 8 2 2.4 50 4 4 3.68 9 9.27 9.51 9.83 10.89
EPDRF4025-16-01-TH ● 16 2 2.4 60 4 4 2.19 17.24 17.67 18.5 19.4 –
EPDRF4025-20-01-TH ● 20 2 2.4 60 4 4 1.82 21.35 22.03 23.06 – –
EPDRF4025-8-02-TH ● 0.2 8 2 2.4 50 4 4 3.72 8.99 9.27 9.5 9.81 10.86
EPDRF4025-16-02-TH ● 16 2 2.4 60 4 4 2.2 17.24 17.67 18.48 19.38 –
EPDRF4025-20-02-TH ● 20 2 2.4 60 4 4 1.83 21.34 22.02 23.05 – –
EPDRF4025-12-03-TH ● 0.3 12 2 2.4 60 4 4 2.78 13.12 13.47 13.91 14.58 –
EPDRF4025-20-03-TH ● 20 2 2.4 60 4 4 1.84 21.34 22.01 23.03 – –
EPDRF4025-12-05-TH ● 0.5 12 2 2.4 60 4 4 2.82 13.12 13.46 13.88 14.54 –
EPDRF4025-20-05-TH ● 20 2 2.4 60 4 4 1.85 21.34 22 23 – –
EPDRF4030-8-01-TH ● 3 0.1 8 2.5 2.86 60 6 4 5.61 9.07 9.34 9.56 9.94 11.02
EPDRF4030-16-01-TH ● 16 2.5 2.86 60 6 4 3.69 17.3 17.78 18.6 19.52 21.64
EPDRF4030-25-01-TH ● 25 2.5 2.86 70 6 4 2.67 26.52 27.58 28.87 30.28 –
EPDRF4030-30-01-TH ● 30 2.5 2.86 80 6 4 2.31 31.62 33.03 34.57 36.27 –
EPDRF4030-8-02-TH ● 0.2 8 2.5 2.86 60 6 4 5.65 9.07 9.33 9.55 9.92 10.99
EPDRF4030-12-02-TH ● 12 2.5 2.86 60 6 4 4.48 13.19 13.52 14.03 14.71 16.3
EPDRF4030-16-02-TH ● 16 2.5 2.86 60 6 4 3.71 17.3 17.77 18.59 19.5 21.6
EPDRF4030-20-02-TH ● 20 2.5 2.86 70 6 4 3.16 21.4 22.13 23.15 24.28 26.91
EPDRF4030-25-02-TH ● 25 2.5 2.86 70 6 4 2.67 26.51 27.57 28.86 30.27 –
EPDRF4030-30-02-TH ● 30 2.5 2.86 80 6 4 2.31 31.62 33.02 34.56 36.25 –
EPDRF4030-8-03-TH ● 0.3 8 2.5 2.86 60 6 4 5.68 9.07 9.33 9.54 9.9 10.95
EPDRF4030-16-03-TH ● 16 2.5 2.86 60 6 4 3.72 17.3 17.76 18.58 19.48 21.57
EPDRF4030-20-03-TH ● 20 2.5 2.86 70 6 4 3.17 21.4 22.12 23.14 24.26 26.88
EPDRF4030-25-03-TH ● 25 2.5 2.86 70 6 4 2.68 26.51 27.56 28.84 30.25 –
EPDRF4030-30-03-TH ● 30 2.5 2.86 80 6 4 2.32 31.62 33.01 34.54 36.23 –
EPDRF4030-8-05-TH ● 0.5 8 2.5 2.86 60 6 4 5.76 9.06 9.31 9.53 9.87 10.89
EPDRF4030-12-05-TH ● 12 2.5 2.86 60 6 4 4.55 13.18 13.51 13.99 14.65 16.2
EPDRF4030-16-05-TH ● 16 2.5 2.86 60 6 4 3.75 17.29 17.74 18.55 19.44 21.51
EPDRF4030-20-05-TH ● 20 2.5 2.86 70 6 4 3.2 21.39 22.1 23.11 24.22 26.82
EPDRF4030-25-05-TH ● 25 2.5 2.86 70 6 4 2.7 26.51 27.55 28.81 30.21 –
EPDRF4030-30-05-TH ● 30 2.5 2.86 80 6 4 2.33 31.61 32.99 34.52 36.19 –
EPDRF4030-35-05-TH ● 35 2.5 2.86 80 6 4 2.06 36.82 38.44 40.22 42.17 –
EPDRF4040-12-01-TH ● 4 0.1 12 4 3.9 60 6 4 3.4 13.13 13.47 13.94 14.62 16.2
EPDRF4040-20-01-TH ● 20 4 3.9 60 6 4 2.31 21.35 22.03 23.06 24.19 –
EPDRF4040-30-01-TH ● 30 4 3.9 80 6 4 1.65 31.57 32.93 34.46 – –
EPDRF4040-40-01-TH ● 40 4 3.9 80 6 4 1.28 41.95 43.82 – – –
EPDRF4040-12-02-TH ● 0.2 12 4 3.9 60 6 4 3.42 13.12 13.47 13.92 14.6 16.17
EPDRF4040-20-02-TH ● 20 4 3.9 60 6 4 2.32 21.34 22.02 23.05 24.17 –
EPDRF4040-30-02-TH ● 30 4 3.9 80 6 4 1.65 31.57 32.92 34.45 – –
EPDRF4040-40-02-TH ● 40 4 3.9 80 6 4 1.29 41.94 43.81 – – –
EPDRF4040-12-03-TH ● 0.3 12 4 3.9 60 6 4 3.44 13.12 13.47 13.91 14.58 16.14
EPDRF4040-20-03-TH ● 20 4 3.9 60 6 4 2.33 21.34 22.01 23.03 24.15 –
EPDRF4040-30-03-TH ● 30 4 3.9 80 6 4 1.66 31.57 32.91 34.44 – –
EPDRF4040-40-03-TH ● 40 4 3.9 80 6 4 1.29 41.94 43.8 – – –
EPDRF4040-12-05-TH ● 0.5 12 4 3.9 60 6 4 3.49 13.12 13.46 13.88 14.54 16.07
EPDRF4040-20-05-TH ● 20 4 3.9 60 6 4 2.35 21.34 22 23 24.11 –
EPDRF4040-30-05-TH ● 30 4 3.9 80 6 4 1.67 31.57 32.89 34.41 – –
EPDRF4040-40-05-TH ● 40 4 3.9 80 6 4 1.29 41.93 43.79 – – –
EPDRF4050-20-01-TH ● 5 0.1 20 5 4.9 70 6 4 1.28 21.35 22.03 – – –
EPDRF4050-40-01-TH ● 40 5 4.9 90 6 4 0.68 41.95 – – – –
EPDRF4050-20-02-TH ● 0.2 20 5 4.9 70 6 4 1.28 21.34 22.02 – – –
EPDRF4050-40-02-TH ● 40 5 4.9 90 6 4 0.68 41.94 – – – –
EPDRF4050-20-03-TH ● 0.3 20 5 4.9 70 6 4 1.29 21.34 22.01 – – –
EPDRF4050-40-03-TH ● 40 5 4.9 90 6 4 0.68 41.94 – – – –
EPDRF4050-20-05-TH ● 0.5 20 5 4.9 70 6 4 1.3 21.34 22 – – –
EPDRF4050-40-05-TH ● 40 5 4.9 90 6 4 0.69 41.93 – – – –
EPDRF4050-20-10-TH ● 1 20 5 4.9 70 6 4 1.33 21.32 21.95 – – –
EPDRF4050-40-10-TH ● 40 5 4.9 90 6 4 0.69 41.91 – – – –
EPDRF4060-30-02-TH ● 6 0.2 30 6 5.9 80 6 4 0 – – – – –
EPDRF4060-54-02-TH ● 54 6 5.9 100 6 4 0 – – – – –
EPDRF4060-72-02-TH ● 72 6 5.9 120 6 4 0 – – – – –
EPDRF4060-30-03-TH ● 0.3 30 6 5.9 80 6 4 0 – – – – –
EPDRF4060-54-03-TH ● 54 6 5.9 100 6 4 0 – – – – –
EPDRF4060-72-03-TH ● 72 6 5.9 120 6 4 0 – – – – –
EPDRF4060-30-05-TH ● 0.5 30 6 5.9 80 6 4 0 – – – – –
EPDRF4060-54-05-TH ● 54 6 5.9 100 6 4 0 – – – – –
EPDRF4060-72-05-TH ● 72 6 5.9 120 6 4 0 – – – – –
EPDRF4060-30-10-TH ● 1 30 6 5.9 80 6 4 0 – – – – –
EPDRF4060-54-10-TH ● 54 6 5.9 100 6 4 0 – – – – –
EPDRF4060-72-10-TH ● 72 6 5.9 120 6 4 0 – – – – –

 ●：標準在庫品です。●： Stocked items.
