EPSM-CR | Epoch SUS Multi - Under neck 5DC, Radius type | MOLDINO

MOLDINO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00
พร้อมส่ง
SKU
EPSM-CR
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ
PDF EPSM-CR
EPSM-CR | Epoch SUS Multi - Under neck 5DC, Radius type | MOLDINO
EPSM-CR | Epoch SUS Multi - Under neck 5DC, Radius type | MOLDINO



 φ1〜φ6  ：０〜-0.015

 φ7〜φ20 ：０〜-0.02



4 Flutes

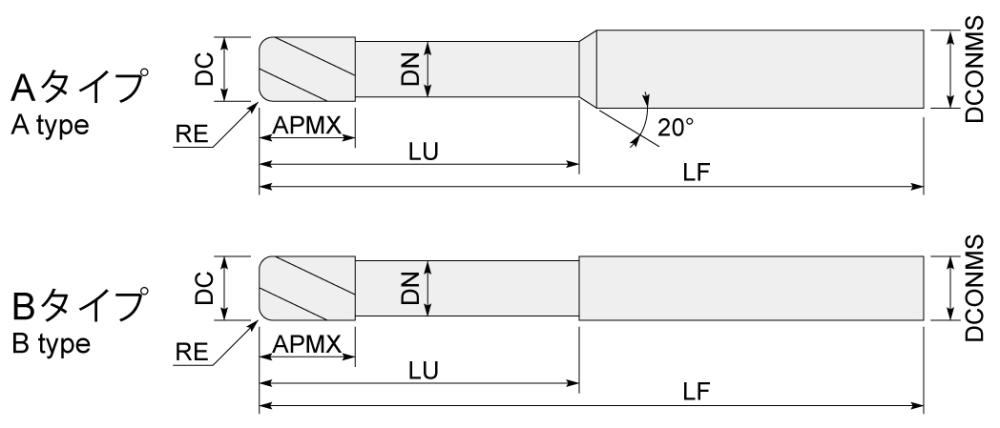

Item code Stock Size (mm) No. of flutes Shape
Tool dia. Coner radius Flute length Under neck length Neck dia. Overall length Shank dia.
DC RE APMX LU DN LF DCONMS
EPSM4010-5-R0.1-PN ● 1 0.1 1.5 5 0.96 68 6 4 A
EPSM4020-10-R0.1-PN ● 2 0.1 3 10 1.92 68 6 4 A
EPSM4020-10-R0.2-PN ● 0.2 3 10 1.92 68 6 4 A
EPSM4030-15-R0.2-PN ● 3 0.2 4.5 15 2.88 68 6 4 A
EPSM4030-15-R0.5-PN ● 0.5 4.5 15 2.88 68 6 4 A
EPSM4040-20-R0.2-PN ● 4 0.2 6 20 3.7 68 6 4 A
EPSM4040-20-R0.5-PN ● 0.5 6 20 3.7 68 6 4 A
EPSM4040-20-R1.0-PN ● 1 6 20 3.7 68 6 4 A
EPSM4050-25-R0.2-PN ● 5 0.2 7.5 25 4.6 68 6 4 A
EPSM4050-25-R0.5-PN ● 0.5 7.5 25 4.6 68 6 4 A
EPSM4050-25-R1.0-PN ● 1 7.5 25 4.6 68 6 4 A
EPSM4060-30-R0.3-PN ● 6 0.3 9 30 5.5 68 6 4 B
EPSM4060-30-R0.5-PN ● 0.5 9 30 5.5 68 6 4 B
EPSM4060-30-R1.0-PN ● 1 9 30 5.5 68 6 4 B
EPSM4060-30-R1.5-PN ● 1.5 9 30 5.5 68 6 4 B
EPSM4070-35-R0.3-PN ● 7 0.3 10.5 35 6.4 80 8 4 A
EPSM4070-35-R0.5-PN ● 0.5 10.5 35 6.4 80 8 4 A
EPSM4070-35-R1.0-PN ● 1 10.5 35 6.4 80 8 4 A
EPSM4080-40-R0.3-PN ● 8 0.3 12 40 7.3 80 8 4 B
EPSM4080-40-R0.5-PN ● 0.5 12 40 7.3 80 8 4 B
EPSM4080-40-R1.0-PN ● 1 12 40 7.3 80 8 4 B
EPSM4080-40-R1.5-PN ● 1.5 12 40 7.3 80 8 4 B
EPSM4080-40-R2.0-PN ● 2 12 40 7.3 80 8 4 B
EPSM4090-45-R0.3-PN ● 9 0.3 13.5 45 8.3 94 10 4 A
EPSM4090-45-R0.5-PN ● 0.5 13.5 45 8.3 94 10 4 A
EPSM4090-45-R1.0-PN ● 1 13.5 45 8.3 94 10 4 A
EPSM4100-50-R0.3-PN ● 10 0.3 15 50 9.1 94 10 4 B
EPSM4100-50-R0.5-PN ● 0.5 15 50 9.1 94 10 4 B
EPSM4100-50-R1.0-PN ● 1 15 50 9.1 94 10 4 B
EPSM4100-50-R1.5-PN ● 1.5 15 50 9.1 94 10 4 B
EPSM4100-50-R2.0-PN ● 2 15 50 9.1 94 10 4 B
EPSM4110-55-R0.3-PN ● 11 0.3 16.5 55 10.2 110 12 4 A
EPSM4110-55-R0.5-PN ● 0.5 16.5 55 10.2 110 12 4 A
EPSM4110-55-R1.0-PN ● 1 16.5 55 10.2 110 12 4 A
EPSM4120-60-R0.3-PN ● 12 0.3 18 60 11 110 12 4 B
EPSM4120-60-R0.5-PN ● 0.5 18 60 11 110 12 4 B
EPSM4120-60-R1.0-PN ● 1 18 60 11 110 12 4 B
EPSM4120-60-R1.5-PN ● 1.5 18 60 11 110 12 4 B
EPSM4120-60-R2.0-PN ● 2 18 60 11 110 12 4 B
EPSM4120-60-R2.5-PN ● 2.5 18 60 11 110 12 4 B
EPSM4120-60-R3.0-PN ● 3 18 60 11 110 12 4 B
EPSM4130-65-R0.5-PN □ 13 0.5 19.5 65 11.7 125 16 4 A
EPSM4130-65-R1.0-PN □ 1 19.5 65 11.7 125 16 4 A
EPSM4130-65-R1.5-PN □ 1.5 19.5 65 11.7 125 16 4 A
EPSM4130-65-R2.0-PN □ 2 19.5 65 11.7 125 16 4 A
EPSM4130-65-R3.0-PN □ 3 19.5 65 11.7 125 16 4 A
EPSM4140-70-R0.5-PN □ 14 0.5 21 70 12.7 125 16 4 A
EPSM4140-70-R1.0-PN □ 1 21 70 12.7 125 16 4 A
EPSM4140-70-R1.5-PN □ 1.5 21 70 12.7 125 16 4 A
EPSM4140-70-R2.0-PN □ 2 21 70 12.7 125 16 4 A
EPSM4140-70-R3.0-PN □ 3 21 70 12.7 125 16 4 A
EPSM4150-75-R0.5-PN □ 15 0.5 22.5 75 13.6 135 16 4 A
EPSM4150-75-R1.0-PN □ 1 22.5 75 13.6 135 16 4 A
EPSM4150-75-R1.5-PN □ 1.5 22.5 75 13.6 135 16 4 A
EPSM4150-75-R2.0-PN □ 2 22.5 75 13.6 135 16 4 A
EPSM4150-75-R3.0-PN □ 3 22.5 75 13.6 135 16 4 A
EPSM4160-80-R0.5-PN ● 16 0.5 24 80 14.5 135 16 4 B
EPSM4160-80-R1.0-PN ● 1 24 80 14.5 135 16 4 B
EPSM4160-80-R1.5-PN ● 1.5 24 80 14.5 135 16 4 B
EPSM4160-80-R2.0-PN ● 2 24 80 14.5 135 16 4 B
EPSM4160-80-R3.0-PN ● 3 24 80 14.5 135 16 4 B
EPSM4170-85-R0.5-PN □ 17 0.5 25.5 85 15.4 145 20 4 A
EPSM4170-85-R1.0-PN □ 1 25.5 85 15.4 145 20 4 A
EPSM4170-85-R1.5-PN □ 1.5 25.5 85 15.4 145 20 4 A
EPSM4170-85-R2.0-PN □ 2 25.5 85 15.4 145 20 4 A
EPSM4170-85-R3.0-PN □ 3 25.5 85 15.4 145 20 4 A
EPSM4180-90-R0.5-PN □ 18 0.5 27 90 16.3 145 20 4 A
EPSM4180-90-R1.0-PN □ 1 27 90 16.3 145 20 4 A
EPSM4180-90-R1.5-PN □ 1.5 27 90 16.3 145 20 4 A
EPSM4180-90-R2.0-PN □ 2 27 90 16.3 145 20 4 A
EPSM4180-90-R3.0-PN □ 3 27 90 16.3 145 20 4 A
EPSM4190-95-R0.5-PN □ 19 0.5 28.5 95 17.3 155 20 4 A
EPSM4190-95-R1.0-PN □ 1 28.5 95 17.3 155 20 4 A
EPSM4190-95-R1.5-PN □ 1.5 28.5 95 17.3 155 20 4 A
EPSM4190-95-R2.0-PN □ 2 28.5 95 17.3 155 20 4 A
EPSM4190-95-R3.0-PN □ 3 28.5 95 17.3 155 20 4 A
EPSM4200-100-R0.5-PN ● 20 0.5 30 100 18.2 155 20 4 B
EPSM4200-100-R1.0-PN ● 1 30 100 18.2 155 20 4 B
EPSM4200-100-R1.5-PN ● 1.5 30 100 18.2 155 20 4 B
EPSM4200-100-R2.0-PN ● 2 30 100 18.2 155 20 4 B
EPSM4200-100-R3.0-PN ● 3 30 100 18.2 155 20 4 B
EPSM4200-100-R5.0-PN ● 5 30 100 18.2 155 20 4 B

●：標準在庫品です。□印 ：特定代理店在庫です。弊社営業へお問合せください
●：Stocked items.     □ ：Stocked by specified distributor. Contact with our sales department.
