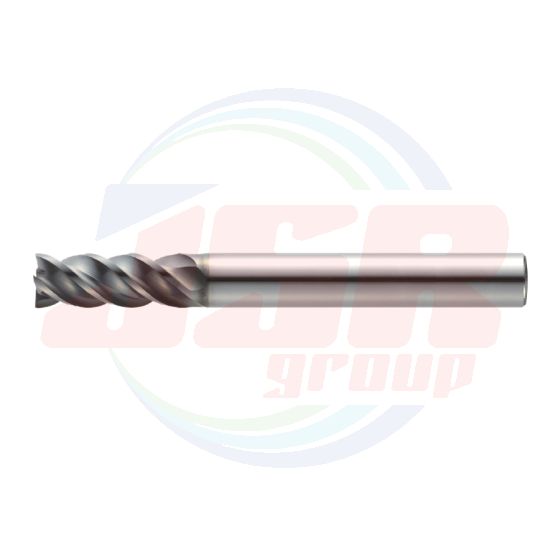

EPSM-PN | Epoch SUS Multi | MOLDINO

MOLDINO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00
พร้อมส่ง
SKU
EPSM-PN
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ
PDF EPSM-PN
EPSM-PN | Epoch SUS Multi | MOLDINO
EPSM-PN | Epoch SUS Multi | MOLDINO EPSM-PN



φ1〜φ6         ：    ０〜−0.015
φ6.05〜φ20  ：    ０〜−0.02



Regular



4 Flutes

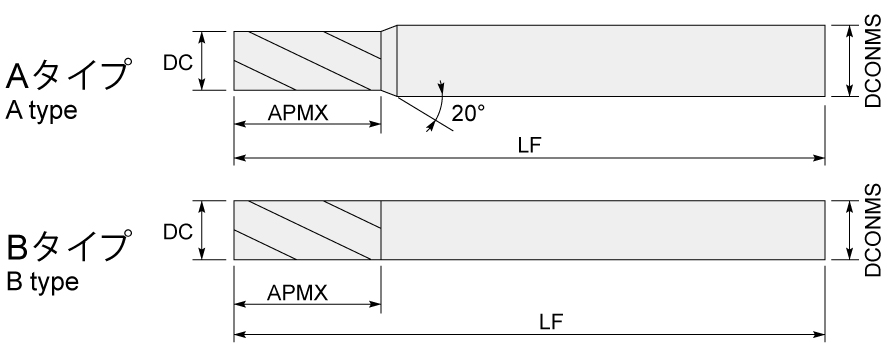

Item code Stock Size (mm) Shape
Tool dia.
DC		 Flute length
APMX		 Overall length
LF		 Shank dia.
DCONMS
EPSM4010-PN ● 1 2.5 56 6 A
EPSM40105-PN □ 1.05 2.8 56 6 A
EPSM4011-PN □ 1.1 2.8 56 6 A
EPSM40115-PN □ 1.15 3 56 6 A
EPSM4012-PN □ 1.2 3 56 6 A
EPSM40125-PN □ 1.25 3.3 56 6 A
EPSM4013-PN □ 1.3 3.3 56 6 A
EPSM40135-PN □ 1.35 3.5 56 6 A
EPSM4014-PN □ 1.4 3.5 56 6 A
EPSM40145-PN □ 1.45 3.8 56 6 A
EPSM4015-PN □ 1.5 3.8 56 6 A
EPSM40155-PN □ 1.55 4 56 6 A
EPSM4016-PN □ 1.6 4 56 6 A
EPSM40165-PN □ 1.65 4.3 56 6 A
EPSM4017-PN □ 1.7 4.3 56 6 A
EPSM40175-PN □ 1.75 4.5 56 6 A
EPSM4018-PN □ 1.8 4.5 56 6 A
EPSM40185-PN □ 1.85 4.8 56 6 A
EPSM4019-PN □ 1.9 4.8 56 6 A
EPSM40195-PN □ 1.95 5 56 6 A
EPSM4020-PN ● 2 5 56 6 A
EPSM40205-PN □ 2.05 5.3 56 6 A
EPSM4021-PN □ 2.1 5.3 56 6 A
EPSM40215-PN □ 2.15 5.5 56 6 A
EPSM4022-PN □ 2.2 5.5 56 6 A
EPSM40225-PN □ 2.25 5.8 56 6 A
EPSM4023-PN □ 2.3 5.8 56 6 A
EPSM40235-PN □ 2.35 6 56 6 A
EPSM4024-PN □ 2.4 6 56 6 A
EPSM40245-PN □ 2.45 6.3 56 6 A
EPSM4025-PN □ 2.5 6.3 56 6 A
EPSM40255-PN □ 2.55 6.5 56 6 A
EPSM4026-PN □ 2.6 6.5 56 6 A
EPSM40265-PN □ 2.65 6.8 56 6 A
EPSM4027-PN □ 2.7 6.8 56 6 A
EPSM40275-PN □ 2.75 7 56 6 A
EPSM4028-PN □ 2.8 7 56 6 A
EPSM40285-PN □ 2.85 7.3 56 6 A
EPSM4029-PN □ 2.9 7.3 56 6 A
EPSM40295-PN □ 2.95 7.5 56 6 A
EPSM4030-PN ● 3 7.5 56 6 A
EPSM40305-PN □ 3.05 7.8 56 6 A
EPSM4031-PN □ 3.1 7.8 56 6 A
EPSM40315-PN □ 3.15 8 56 6 A
EPSM4032-PN □ 3.2 8 56 6 A
EPSM40325-PN □ 3.25 8.3 56 6 A
EPSM4033-PN □ 3.3 8.3 56 6 A
EPSM40335-PN □ 3.35 8.5 56 6 A
EPSM4034-PN □ 3.4 8.5 56 6 A
EPSM40345-PN □ 3.45 8.8 56 6 A
EPSM4035-PN □ 3.5 8.8 56 6 A
EPSM40355-PN □ 3.55 9 56 6 A
EPSM4036-PN □ 3.6 9 56 6 A
EPSM40365-PN □ 3.65 9.3 56 6 A
EPSM4037-PN □ 3.7 9.3 56 6 A
EPSM40375-PN □ 3.75 9.5 56 6 A
EPSM4038-PN □ 3.8 9.5 56 6 A
EPSM40385-PN □ 3.85 9.8 56 6 A
EPSM4039-PN □ 3.9 9.8 56 6 A
EPSM40395-PN □ 3.95 10 56 6 A
EPSM4040-PN ● 4 10 56 6 A
EPSM40405-PN □ 4.05 10.3 56 6 A
EPSM4041-PN □ 4.1 10.3 56 6 A
EPSM40415-PN □ 4.15 10.5 56 6 A
EPSM4042-PN □ 4.2 10.5 56 6 A
EPSM40425-PN □ 4.25 10.8 56 6 A
EPSM4043-PN □ 4.3 10.8 56 6 A
EPSM40435-PN □ 4.35 11 56 6 A
EPSM4044-PN □ 4.4 11 56 6 A
EPSM40445-PN □ 4.45 11.3 56 6 A
EPSM4045-PN □ 4.5 11.3 56 6 A
EPSM40455-PN □ 4.55 11.5 56 6 A
EPSM4046-PN □ 4.6 11.5 56 6 A
EPSM40465-PN □ 4.65 11.8 56 6 A
EPSM4047-PN □ 4.7 11.8 56 6 A
EPSM40475-PN □ 4.75 12 56 6 A
EPSM4048-PN □ 4.8 12 56 6 A
EPSM40485-PN □ 4.85 12.3 56 6 A
EPSM4049-PN □ 4.9 12.3 56 6 A
EPSM40495-PN □ 4.95 12.5 56 6 A
EPSM4050-PN ● 5 12.5 56 6 A
EPSM40505-PN □ 5.05 12.8 56 6 A
EPSM4051-PN □ 5.1 12.8 56 6 A
EPSM40515-PN □ 5.15 13 56 6 A
EPSM4052-PN □ 5.2 13 56 6 A
EPSM40525-PN □ 5.25 13.3 56 6 A
EPSM4053-PN □ 5.3 13.3 56 6 A
EPSM40535-PN □ 5.35 13.5 56 6 A
EPSM4054-PN □ 5.4 13.5 56 6 A
EPSM40545-PN □ 5.45 13.8 56 6 A
EPSM4055-PN □ 5.5 13.8 56 6 A
EPSM40555-PN □ 5.55 14 56 6 A
EPSM4056-PN □ 5.6 14 56 6 A
EPSM40565-PN □ 5.65 14.3 56 6 A
EPSM4057-PN □ 5.7 14.3 56 6 A
EPSM40575-PN □ 5.75 14.5 56 6 A
EPSM4058-PN □ 5.8 14.5 56 6 A
EPSM40585-PN □ 5.85 14.8 56 6 A
EPSM4059-PN □ 5.9 14.8 56 6 A
EPSM40595-PN □ 5.95 15 56 6 A
EPSM4060-PN ● 6 15 56 6 B
EPSM40605-PN □ 6.05 15.3 63 8 A
EPSM4061-PN □ 6.1 15.3 63 8 A
EPSM40615-PN □ 6.15 15.5 63 8 A
EPSM4062-PN □ 6.2 15.5 63 8 A
EPSM40625-PN □ 6.25 15.8 63 8 A
EPSM4063-PN □ 6.3 15.8 63 8 A
EPSM40635-PN □ 6.35 16 63 8 A
EPSM4064-PN □ 6.4 16 63 8 A
EPSM40645-PN □ 6.45 16.3 63 8 A
EPSM4065-PN □ 6.5 16.3 63 8 A
EPSM40655-PN □ 6.55 16.5 63 8 A
EPSM4066-PN □ 6.6 16.5 63 8 A
EPSM40665-PN □ 6.65 16.8 63 8 A
EPSM4067-PN □ 6.7 16.8 63 8 A
EPSM40675-PN □ 6.75 17 63 8 A
EPSM4068-PN □ 6.8 17 63 8 A
EPSM40685-PN □ 6.85 17.3 63 8 A
EPSM4069-PN □ 6.9 17.3 63 8 A
EPSM40695-PN □ 6.95 17.5 63 8 A
EPSM4070-PN ● 7 17.5 63 8 A
EPSM40705-PN □ 7.05 17.8 63 8 A
EPSM4071-PN □ 7.1 17.8 63 8 A
EPSM40715-PN □ 7.15 18 63 8 A
EPSM4072-PN □ 7.2 18 63 8 A
EPSM40725-PN □ 7.25 18.3 63 8 A
EPSM4073-PN □ 7.3 18.3 63 8 A
EPSM40735-PN □ 7.35 18.5 63 8 A
EPSM4074-PN □ 7.4 18.5 63 8 A
EPSM40745-PN □ 7.45 18.8 63 8 A
EPSM4075-PN □ 7.5 18.8 63 8 A
EPSM40755-PN □ 7.55 19 63 8 A
EPSM4076-PN □ 7.6 19 63 8 A
EPSM40765-PN □ 7.65 19.3 63 8 A
EPSM4077-PN □ 7.7 19.3 63 8 A
EPSM40775-PN □ 7.75 19.5 63 8 A
EPSM4078-PN □ 7.8 19.5 63 8 A
EPSM40785-PN □ 7.85 19.8 63 8 A
EPSM4079-PN □ 7.9 19.8 63 8 A
EPSM40795-PN □ 7.95 20 63 8 A
EPSM4080-PN ● 8 20 63 8 B
EPSM40805-PN □ 8.05 20.3 74 10 A
EPSM4081-PN □ 8.1 20.3 74 10 A
EPSM40815-PN □ 8.15 20.5 74 10 A
EPSM4082-PN □ 8.2 20.5 74 10 A
EPSM40825-PN □ 8.25 20.8 74 10 A
EPSM4083-PN □ 8.3 20.8 74 10 A
EPSM40835-PN □ 8.35 21 74 10 A
EPSM4084-PN □ 8.4 21 74 10 A
EPSM40845-PN □ 8.45 21.3 74 10 A
EPSM4085-PN □ 8.5 21.3 74 10 A
EPSM40855-PN □ 8.55 21.5 74 10 A
EPSM4086-PN □ 8.6 21.5 74 10 A
EPSM40865-PN □ 8.65 21.8 74 10 A
EPSM4087-PN □ 8.7 21.8 74 10 A
EPSM40875-PN □ 8.75 22 74 10 A
EPSM4088-PN □ 8.8 22 74 10 A
EPSM40885-PN □ 8.85 22.3 74 10 A
EPSM4089-PN □ 8.9 22.3 74 10 A
EPSM40895-PN □ 8.95 22.5 74 10 A
EPSM4090-PN ● 9 22.5 74 10 A
EPSM40905-PN □ 9.05 22.8 74 10 A
EPSM4091-PN □ 9.1 22.8 74 10 A
EPSM40915-PN □ 9.15 23 74 10 A
EPSM4092-PN □ 9.2 23 74 10 A
EPSM40925-PN □ 9.25 23.3 74 10 A
EPSM4093-PN □ 9.3 23.3 74 10 A
EPSM40935-PN □ 9.35 23.5 74 10 A
EPSM4094-PN □ 9.4 23.5 74 10 A
EPSM40945-PN □ 9.45 23.8 74 10 A
EPSM4095-PN □ 9.5 23.8 74 10 A
EPSM40955-PN □ 9.55 24 74 10 A
EPSM4096-PN □ 9.6 24 74 10 A
EPSM40965-PN □ 9.65 24.3 74 10 A
EPSM4097-PN □ 9.7 24.3 74 10 A
EPSM40975-PN □ 9.75 24.5 74 10 A
EPSM4098-PN □ 9.8 24.5 74 10 A
EPSM40985-PN □ 9.85 24.8 74 10 A
EPSM4099-PN □ 9.9 24.8 74 10 A
EPSM40995-PN □ 9.95 25 74 10 A
EPSM4100-PN ● 10 25 74 10 B
EPSM4101-PN □ 10.1 25.3 86 12 A
EPSM4102-PN □ 10.2 25.5 86 12 A
EPSM4103-PN □ 10.3 25.8 86 12 A
EPSM4104-PN □ 10.4 26 86 12 A
EPSM4105-PN □ 10.5 26.3 86 12 A
EPSM4106-PN □ 10.6 26.5 86 12 A
EPSM4107-PN □ 10.7 26.8 86 12 A
EPSM4108-PN □ 10.8 27 86 12 A
EPSM4109-PN □ 10.9 27.3 86 12 A
EPSM4110-PN ● 11 27.5 86 12 A
EPSM4111-PN □ 11.1 27.8 86 12 A
EPSM4112-PN □ 11.2 28 86 12 A
EPSM4113-PN □ 11.3 28.3 86 12 A
EPSM4114-PN □ 11.4 28.5 86 12 A
EPSM4115-PN □ 11.5 28.8 86 12 A
EPSM4116-PN □ 11.6 29 86 12 A
EPSM4117-PN □ 11.7 29.3 86 12 A
EPSM4118-PN □ 11.8 29.5 86 12 A
EPSM4119-PN □ 11.9 29.8 86 12 A
EPSM4120-PN ● 12 30 86 12 B
EPSM4125-PN □ 12.5 31.3 105 16 A
EPSM4130-PN □ 13 32.5 105 16 A
EPSM4135-PN □ 13.5 33.8 105 16 A
EPSM4140-PN □ 14 35 105 16 A
EPSM4145-PN □ 14.5 36.3 110 16 A
EPSM4150-PN □ 15 37.5 110 16 A
EPSM4155-PN □ 15.5 38.8 110 16 A
EPSM4160-PN ● 16 40 110 16 B
EPSM4165-PN □ 16.5 41.3 120 20 A
EPSM4170-PN □ 17 42.5 120 20 A
EPSM4175-PN □ 17.5 43.8 120 20 A
EPSM4180-PN □ 18 45 120 20 A
EPSM4185-PN □ 18.5 46.3 125 20 A
EPSM4190-PN □ 19 47.5 125 20 A
EPSM4195-PN □ 19.5 48.8 125 20 A
EPSM4200-PN ● 20 50 125 20 B



 ●印 ：標準在庫品です。 ● : Stocked items.  □印 ：特定代理店在庫です。弊社営業へお問合せください。□：Stocked by specified distributor. Contact with our sales department.
