EPSML-PN | Epoch SUS Multi | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
EPSML-PN
Long
φ6 ：０〜−0.015
φ7〜φ20 ：０〜−0.02
4 Flutes
| 品コード Item code |
在庫 Stock |
寸法 Size(mm) | 刃数 No. of flutes |

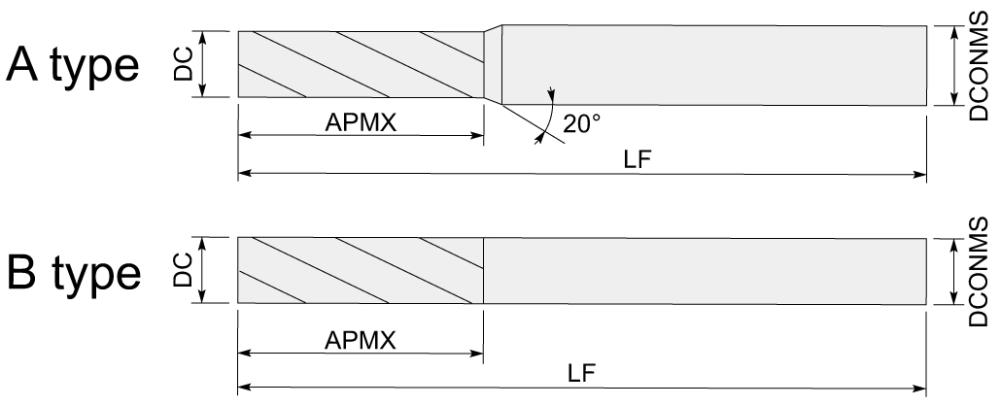

形状 Shape |
|||
|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
全長 Overall length |
シャンク径 Shank dia. |
||||
| DC | APMX | LF | DCONMS | ||||
| EPSML4060-PN | ● | 6 | 30 | 70 | 6 | 4 | B |
| EPSML4070-PN | □ | 7 | 35 | 80 | 8 | 4 | A |
| EPSML4080-PN | ● | 8 | 40 | 80 | 8 | 4 | B |
| EPSML4090-PN | □ | 9 | 45 | 100 | 10 | 4 | A |
| EPSML4100-PN | ● | 10 | 50 | 100 | 10 | 4 | B |
| EPSML4110-PN | □ | 11 | 55 | 120 | 12 | 4 | A |
| EPSML4120-PN | ● | 12 | 60 | 120 | 12 | 4 | B |
| EPSML4130-PN | □ | 13 | 65 | 130 | 16 | 4 | A |
| EPSML4140-PN | □ | 14 | 70 | 130 | 16 | 4 | A |
| EPSML4150-PN | □ | 15 | 75 | 130 | 16 | 4 | A |
| EPSML4160-PN | ● | 16 | 80 | 135 | 16 | 4 | B |
| EPSML4170-PN | □ | 17 | 85 | 135 | 20 | 4 | A |
| EPSML4180-PN | □ | 18 | 90 | 145 | 20 | 4 | A |
| EPSML4190-PN | □ | 19 | 95 | 145 | 20 | 4 | A |
| EPSML4200-PN | ● | 20 | 100 | 155 | 20 | 4 | B |
●印 ：標準在庫品です。 ● : Stocked items.
