ER8WB-ATH | 8-flutes End Mill for Vertical Wall/Bottom Face Finishing | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
ER8WB-ATH
φ6 ：０〜-0.015
φ7〜φ12 ：０〜-0.02
8 Flutes
| 商品コード Item code |
在庫 Stock |

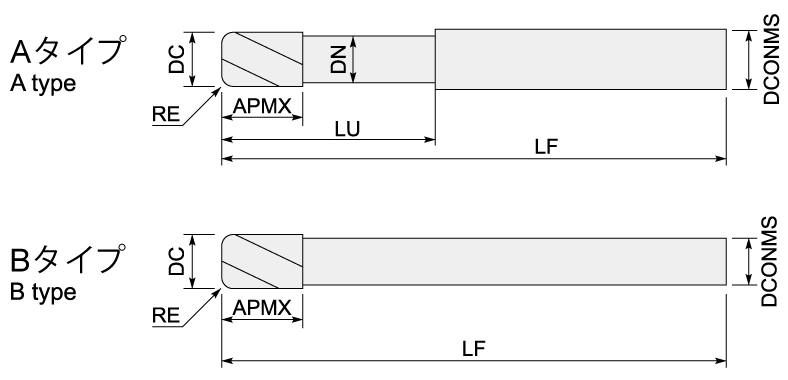

寸法 Size(mm) | 形状 Shape |
||||||
|---|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
コーナ半径 Corner radius |
刃長 Flute length |
首下長 Under neck length |
首径 Neck dia. |
全長 Overall length |
シャンク径 Shank dia. |
|||
| DC | RE | APMX | LU | DN | LF | DCONMS | |||
| ER8WB0600LN-20-R1.0-ATH | ● | 6 | 1 | 7 | 20 | 5.88 | 70 | 6 | A |
| ER8WB0600LN-30-R1.0-ATH | ● | 1 | 7 | 30 | 5.88 | 80 | 6 | A | |
| ER8WB0600LN-40-R1.0-ATH | ● | 1 | 7 | 40 | 5.88 | 90 | 6 | A | |
| ER8WB0600LN-50-R1.0-ATH | ● | 1 | 7 | 50 | 5.88 | 100 | 6 | A | |
| ER8WB0700LS-R1.0-ATH | ● | 7 | 1 | 8 | – | – | 90 | 6 | B |
| ER8WB0800LN-30-R1.0-ATH | ● | 8 | 1 | 9 | 30 | 7.84 | 75 | 8 | A |
| ER8WB0800LN-40-R1.0-ATH | ● | 1 | 9 | 40 | 7.84 | 90 | 8 | A | |
| ER8WB0800LN-50-R1.0-ATH | ● | 1 | 9 | 50 | 7.84 | 100 | 8 | A | |
| ER8WB0800LN-60-R1.0-ATH | ● | 1 | 9 | 60 | 7.84 | 110 | 8 | A | |
| ER8WB0900LS-R1.0-ATH | ● | 9 | 1 | 10 | – | – | 100 | 8 | B |
| ER8WB1000LN-35-R1.0-ATH | ● | 10 | 1 | 11 | 35 | 9.8 | 80 | 10 | A |
| ER8WB1000LN-50-R1.0-ATH | ● | 1 | 11 | 50 | 9.8 | 100 | 10 | A | |
| ER8WB1000LN-60-R1.0-ATH | ● | 1 | 11 | 60 | 9.8 | 110 | 10 | A | |
| ER8WB1000LN-80-R1.0-ATH | ● | 1 | 11 | 80 | 9.8 | 130 | 10 | A | |
| ER8WB1100LS-R1.0-ATH | ● | 11 | 1 | 12 | – | – | 110 | 10 | B |
| ER8WB1200LN-40-R1.0-ATH | ● | 12 | 1 | 13 | 40 | 11.8 | 90 | 12 | A |
| ER8WB1200LN-60-R1.0-ATH | ● | 1 | 13 | 60 | 11.8 | 110 | 12 | A | |
| ER8WB1200LN-80-R1.0-ATH | ● | 1 | 13 | 80 | 11.8 | 130 | 12 | A | |
| ER8WB1200LN-100-R1.0-ATH | ● | 1 | 13 | 100 | 11.8 | 150 | 12 | A | |
●：標準在庫品です。●：Stocked items
| แบรนด์สินค้า | MOLDINO |
|---|
