ESHB-TH | Epoch Shrink Master Ball | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
MOL-ESHB-TH
＋0.001〜−0.003
High accuracy rating product 2 Flutes

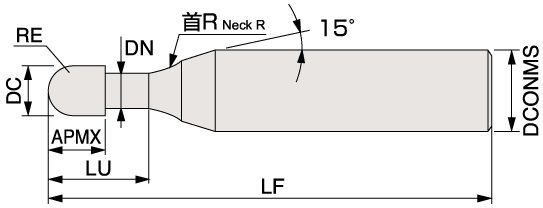

| Item code | Stock | Size (mm) | Interference angle（°） |
Effective length (Effective length for work angle) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ball radius |
Tool dia. |
Flute length |
Neck dia. |
Under neck length |
Neck R | Overall length |
Shank dia. |
|||||||||
| RE | DC | APMX | DN | LU | LF | DCONMS | θκ | 0° | 0.5° | 1° | 1.5° | 2° | 3° | |||
| ESHB2010-H-TH | ● | 0.5 | 1 | 1 | 0.95 | 2.5 | 4 | 40 | 4 | 11.04 | 2.94 | 3.11 | 3.26 | 3.39 | 3.51 | 3.73 |
| ESHB2015-H-TH | ● | 0.75 | 1.5 | 1.5 | 1.45 | 3.75 | 4 | 40 | 4 | 9.16 | 4.19 | 4.42 | 4.60 | 4.76 | 4.90 | 5.16 |
| ESHB2020-H-TH | ● | 1 | 2 | 2 | 1.95 | 5 | 4 | 45 | 6 | 9.82 | 5.44 | 5.72 | 5.93 | 6.11 | 6.27 | 6.56 |
| ESHB2025-H-TH | ● | 1.25 | 2.5 | 2.5 | 2.45 | 6.25 | 4 | 45 | 6 | 8.57 | 6.69 | 7.02 | 7.26 | 7.46 | 7.63 | 7.94 |
| ESHB2030-H-TH | ● | 1.5 | 3 | 3 | 2.9 | 7.5 | 4 | 45 | 6 | 7.26 | 8.13 | 8.43 | 8.67 | 8.87 | 9.05 | 9.37 |
| ESHB2035-H-TH | ● | 1.75 | 3.5 | 3.5 | 3.4 | 8.75 | 4 | 45 | 6 | 6.03 | 9.38 | 9.72 | 9.98 | 10.19 | 10.39 | 10.72 |
| ESHB2040-H-TH | ● | 2 | 4 | 4 | 3.9 | 10 | 4 | 45 | 6 | 4.80 | 10.63 | 11.00 | 11.28 | 11.51 | 11.72 | 12.18 |
| ESHB2050-H-TH | ● | 2.5 | 5 | 5 | 4.9 | 12.5 | 4 | 50 | 6 | 2.38 | 13.13 | 13.57 | 13.88 | 14.14 | 14.37 | - |
| ESHB2060-H-TH | ● | 3 | 6 | 6 | 5.9 | 15 | - | 50 | 6 | - | 15.00 | - | - | - | - | - |
| ESHB2080-H-TH | ● | 4 | 8 | 8 | 7.9 | 20 | - | 60 | 8 | - | 20.00 | - | - | - | - | - |
| ESHB2100-H-TH | ● | 5 | 10 | 10 | 9.9 | 25 | - | 70 | 10 | - | 25.00 | - | - | - | - | - |
| ESHB2120-H-TH | ● | 6 | 12 | 12 | 11.9 | 30 | - | 75 | 12 | - | 30.00 | - | - | - | - | - |
±0.005
Standard rating product 2 Flutes
| tem code | Stock | Size (mm) | Interference angle |
Effective length (Effective length for work angle) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ball radius |
Tool dia. |
Flute length |
Neck dia. |
Under neck length |
Neck R | Overall length |
Shank dia. |
|||||||||
| RE | DC | APMX | DN | LU | LF | DCONMS | θκ | 0° | 0.5° | 1° | 1.5° | 2° | 3° | |||
| ESHB2010-N-TH | ● | 0.5 | 1 | 1 | 0.95 | 2.5 | 4 | 40 | 4 | 11.04 | 2.94 | 3.11 | 3.26 | 3.39 | 3.51 | 3.73 |
| ESHB2015-N-TH | ● | 0.75 | 1.5 | 1.5 | 1.45 | 3.75 | 4 | 40 | 4 | 9.16 | 4.19 | 4.42 | 4.60 | 4.76 | 4.90 | 5.16 |
| ESHB2020-N-TH | ● | 1 | 2 | 2 | 1.95 | 5 | 4 | 45 | 6 | 9.82 | 5.44 | 5.72 | 5.93 | 6.11 | 6.27 | 6.56 |
| ESHB2025-N-TH | ● | 1.25 | 2.5 | 2.5 | 2.45 | 6.25 | 4 | 45 | 6 | 8.57 | 6.69 | 7.02 | 7.26 | 7.46 | 7.63 | 7.94 |
| ESHB2030-N-TH | ● | 1.5 | 3 | 3 | 2.9 | 7.5 | 4 | 45 | 6 | 7.26 | 8.13 | 8.43 | 8.67 | 8.87 | 9.05 | 9.37 |
| ESHB2035-N-TH | ● | 1.75 | 3.5 | 3.5 | 3.4 | 8.75 | 4 | 45 | 6 | 6.03 | 9.38 | 9.72 | 9.98 | 10.19 | 10.39 | 10.72 |
| ESHB2040-N-TH | ● | 2 | 4 | 4 | 3.9 | 10 | 4 | 45 | 6 | 4.80 | 10.63 | 11.00 | 11.28 | 11.51 | 11.72 | 12.18 |
| ESHB2050-N-TH | ● | 2.5 | 5 | 5 | 4.9 | 12.5 | 4 | 50 | 6 | 2.38 | 13.13 | 13.57 | 13.88 | 14.14 | 14.37 | - |
| ESHB2060-N-TH | ● | 3 | 6 | 6 | 5.9 | 15 | - | 50 | 6 | - | 15.00 | - | - | - | - | - |
| ESHB2080-N-TH | ● | 4 | 8 | 8 | 7.9 | 20 | - | 60 | 8 | - | 20.00 | - | - | - | - | - |
| ESHB2100-N-TH | ● | 5 | 10 | 10 | 9.9 | 25 | - | 70 | 10 | - | 25.00 | - | - | - | - | - |
| ESHB2120-N-TH | ● | 6 | 12 | 12 | 11.9 | 30 | - | 75 | 12 | - | 30.00 | - | - | - | - | - |
| แบรนด์สินค้า | MOLDINO |
|---|
