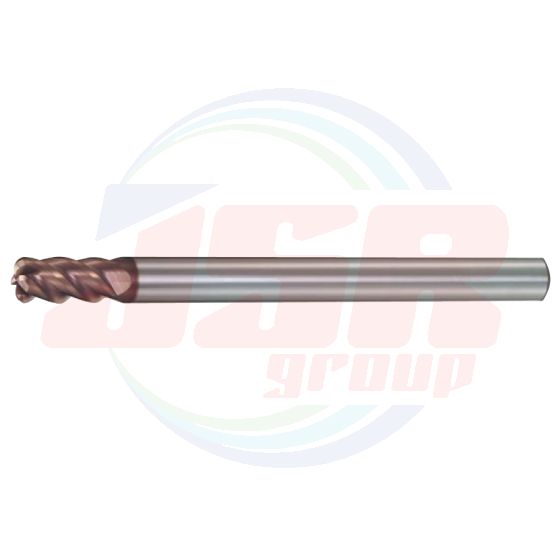

ETM-TH | Epoch Turbo Mill | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
ETM-TH
±0.015
Straight Neck
| 品コード Item code |
在庫 Stock |

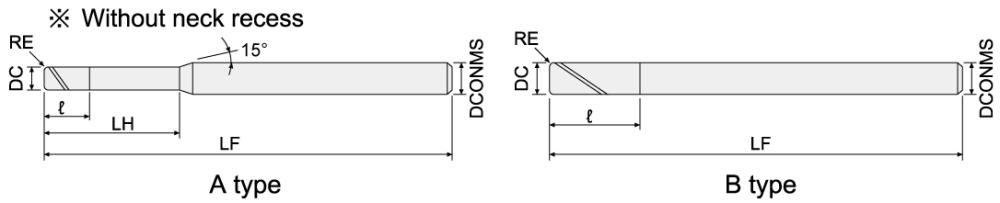

寸法 Size (mm) | 首形状 Shape |
|||||
|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
コーナ半径 Corner radius |
首下長 Under neck length |
刃長 Flute length |
全長 Overall length |
シャンク径 Shank dia. |
|||
| DC | RE | LH | ℓ | LF | DCONMS | |||
| ETM4020-05-TH | ● | 2 | 0.5 | 6 | 4 | 70 | 6 | A |
| ETM4030-08-TH | ● | 3 | 0.8 | 9 | 6 | 70 | 6 | |
| ETM4040-10-TH | ● | 4 | 1.0 | 12 | 8 | 70 | 6 | |
| ETM4050-12-TH | ● | 5 | 1.2 | 15 | 10 | 70 | 6 | |
| ETM4060-15-TH | ● | 6 | 1.5 | – | 12 | 90 | 6 | B |
| ETM4080-20-TH | ● | 8 | 2.0 | – | 16 | 100 | 8 | |
| ETM4100-20-TH | ● | 10 | 2.0 | – | 20 | 110 | 10 | |
| ETM4120-20-TH | ● | 12 | 2.0 | – | 24 | 120 | 12 | |
| ETM4160-30-TH | ● | 16 | 3.0 | – | 32 | 140 | 16 | |
| ETM4200-30-TH | ● | 20 | 3.0 | – | 40 | 150 | 20 | |
●：標準在庫品です。●：Stocked items
| แบรนด์สินค้า | MOLDINO |
|---|
