ETMLN-TH | Epoch Turbo Mill | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
ETMLN-TH
±0.015
Long Neck
| 商品コード Item code |
在庫 Stock |

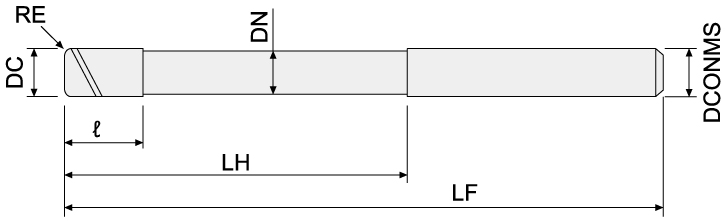

寸法 Size(mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
コーナ半径 Corner radius |
首下長 Under neck length |
刃長 Flute length |
首径 Neck dia. |
全長 Overall length |
シャンク径 Shank dia. |
||
| DC | RE | LH | ℓ | DN | LF | DCONMS | ||
| ETMLN4040-20-10-TH | ● | 4 | 1.0 | 20 | 6 | 3.8 | 70 | 4 |
| ETMLN4040-28-10-TH | ● | 28 | 6 | 70 | ||||
| ETMLN4060-30-15-TH | ● | 6 | 1.5 | 30 | 9 | 5.7 | 75 | 6 |
| ETMLN4060-42-15-TH | ● | 42 | 9 | 90 | ||||
| ETMLN4060-54-15-TH | ● | 54 | 9 | 100 | ||||
| ETMLN4080-40-20-TH | ● | 8 | 2.0 | 40 | 12 | 7.6 | 85 | 8 |
| ETMLN4080-56-20-TH | ● | 56 | 12 | 100 | ||||
| ETMLN4080-72-20-TH | ● | 72 | 12 | 120 | ||||
| ETMLN4100-50-20-TH | ● | 10 | 2.0 | 50 | 15 | 9.5 | 100 | 10 |
| ETMLN4100-70-20-TH | ● | 70 | 15 | 120 | ||||
| ETMLN4100-90-20-TH | ● | 90 | 15 | 140 | ||||
| ETMLN4120-60-20-TH | ● | 12 | 2.0 | 60 | 18 | 11.5 | 110 | 12 |
| ETMLN4120-84-20-TH | ● | 84 | 18 | 135 | ||||
| ETMLN4120-108-20-TH | ● | 108 | 18 | 160 | ||||
| ETMLN4160-80-30-TH | ● | 16 | 3.0 | 80 | 24 | 15.5 | 140 | 16 |
| ETMLN4160-120-30-TH | ● | 120 | 24 | 175 | ||||
●：標準在庫品です。●：Stocked items
| แบรนด์สินค้า | MOLDINO |
|---|
