F-SL (Metric Threads) | Spiral Fluted Taps for High Speed Tapping, Through Hole Use (with LH Spiral Flutes) | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 674.10
พร้อมส่ง
SKU
YAM-F-SL (Metric Threads)
Product Features
- High speed machining is possible with a machine equipped with a fully synchronousfeed mechanism.
- At low speed, the shape and discharge of the chip deteriorate, causing problems..

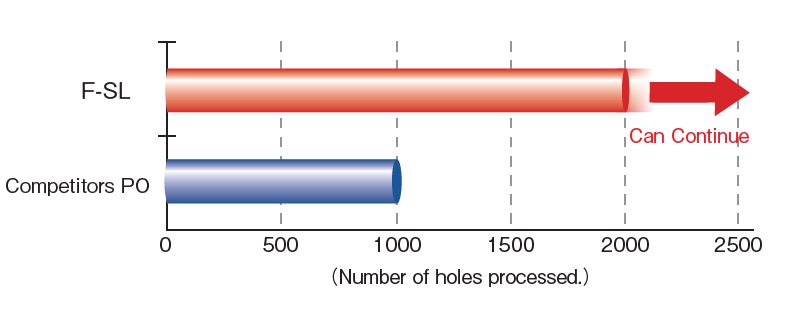

Tapping Data
Tapping Conditions [M8×1.25]
| Workpiece Material | S50C |  |
| Hardness | Raw material | |
| Bored Hole Size | Through hole | |
| Tapping Length | 1.5D～ | |
| Machinery Type | M/C | |
| Tapping Direction | Vertical | |
| Type of Feed | Synchronous | |
| Tapping Speed | 30m/min | |
| Cutting Fluid | Water soluble cutting fluid | |
| Bored Hole Process | Drill | |
| Tapped Holes | 2,000 holes |
Recommended speed table

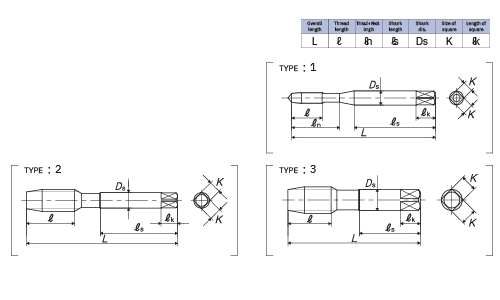

Specification

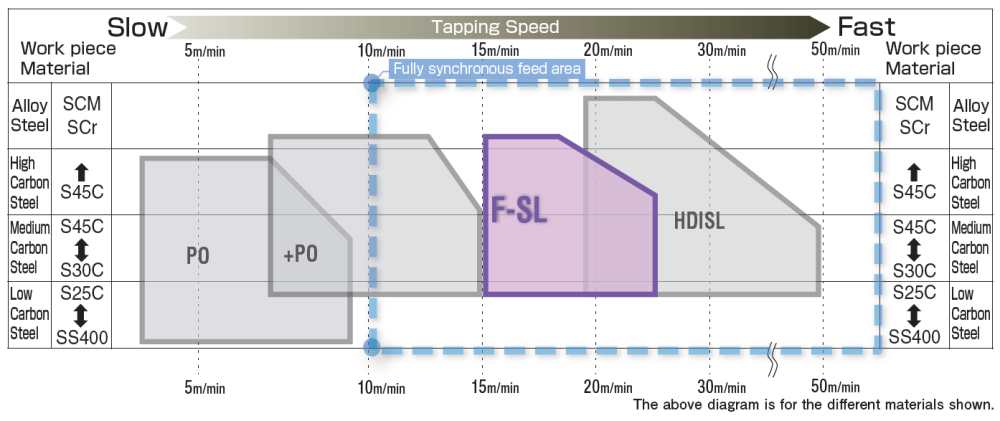

Tapping Speeds depending on Materials
Segment：1T
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P2 |
VFSHMQ3.0GL |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P2 |
VFSHMQ4.0IL |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P2 |
VFSHMQ5.0KL |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
VFSHMQ6.0ML |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P3 |
VFSHMR8.0NL |
5.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P3 |
VFSHMR010OL |
5.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P3 |
VFSHMR010NL |
5.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
VFSHMS012PL |
5.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P3 |
VFSHMR012OL |
5.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
VFSHMS012NL |
5.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P4 |
VFSHMS014QL |
5.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P3 |
VFSHMR014OL |
5.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P4 |
VFSHMS016QL |
5.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P3 |
VFSHMR016OL |
5.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P4 |
VFSHMS018RL |
5.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×1.5 |
P4 |
VFSHMS018OL |
5.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M20×2.5 |
P4 |
VFSHMS020RL |
5.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M20×1.5 |
P4 |
VFSHMS020OL |
5.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M22×2.5 |
P4 |
VFSHMS022RL |
5.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M22×1.5 |
P4 |
VFSHMS022OL |
5.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M24×3 |
P4 |
VFSHMS024SL |
5.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
|
M24×1.5 |
P4 |
VFSHMS024OL |
5.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 0 |
