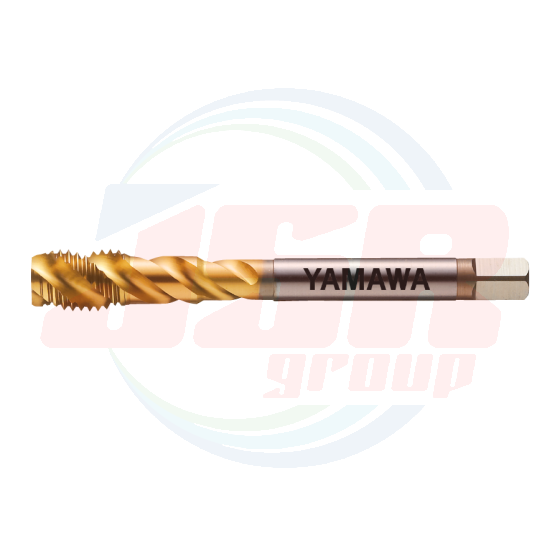

F-SP (Metric Threads) | Spiral Fluted Taps for High Speed Tapping | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 609.90
พร้อมส่ง
SKU
YAM-F-SP Metric Threads
Product Features
- High speed machining is possible with a machine equipped with a fully synchronous feed mechanism.
- The F-SP exhibits excellent chip ejection properties from its unique flute shape and short thread length.
- At low speed, the shape and ejection of the chips can deteriorate, causing problems.
Tapping Data
Tapping Conditions [M6×1]
| Work Piece Material | S50C |  |
| Bored Hole Shape | Blind hole | |
| Tapping Length | 1.5D⁓ | |
| Machinery Type | M/C | |
| Tapping Direction | Vertical | |
| Feed | Synchronous | |
| Tapping Fluid | 20m/mim | |
| Cutting Fluid | Water soluble cutting fluid | |
| Pilot hole Processing Method |
Drill | |

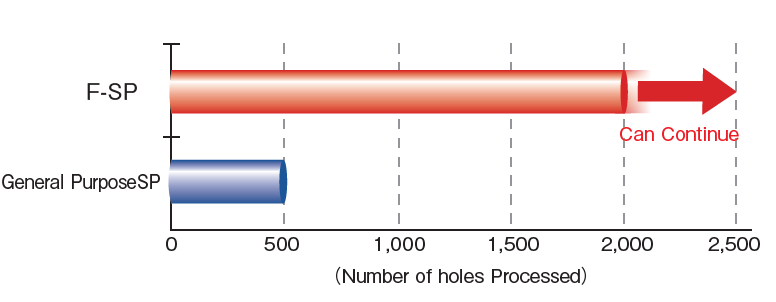

| Number of Holes Processed |
2,000 |

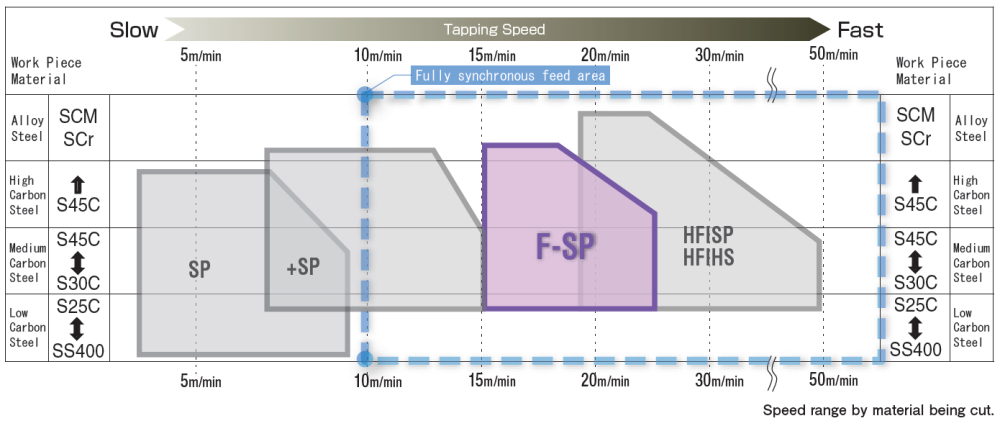

Speed chart

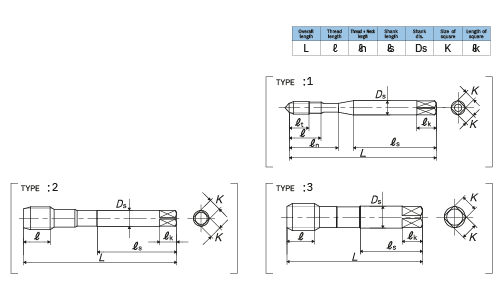

Specification
Tapping Speeds depending on Materials
Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓt (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
|||||||||||||
|
M3×0.5 |
P2 |
VFSHMQ3.0G |
2.5P |
46 |
5 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P2 |
VFSHMQ4.0I |
2.5P |
52 |
7 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P2 |
VFSHMQ5.0K |
2.5P |
60 |
9 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
VFSHMQ6.0M |
2.5P |
62 |
11 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P3 |
VFSHMR8.0N |
3P |
70 |
- |
12 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P3 |
VFSHMR010O |
3P |
75 |
- |
13 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P3 |
VFSHMR010N |
3P |
75 |
- |
13 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
VFSHMS012P |
3P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P3 |
VFSHMR012O |
3P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
VFSHMS012N |
3P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P4 |
VFSHMS014Q |
3P |
88 |
- |
18 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P3 |
VFSHMR014O |
3P |
88 |
- |
14 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P4 |
VFSHMS016Q |
3P |
95 |
- |
18 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P3 |
VFSHMR016O |
3P |
95 |
- |
14 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P4 |
VFSHMS018R |
3P |
100 |
- |
20 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×1.5 |
P4 |
VFSHMS018O |
3P |
100 |
- |
14 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M20×2.5 |
P4 |
VFSHMS020R |
3P |
105 |
- |
20 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M20×1.5 |
P4 |
VFSHMS020O |
3P |
105 |
- |
14 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M22×2.5 |
P4 |
VFSHMS022R |
3P |
115 |
- |
20 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M22×1.5 |
P4 |
VFSHMS022O |
3P |
115 |
- |
14 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M24×3 |
P4 |
VFSHMS024S |
3P |
120 |
- |
25 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
|
M24×1.5 |
P4 |
VFSHMS024O |
3P |
120 |
- |
18 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|
