- The FC-PS is a hand tap for parallel pipe threads and is suitable for thread processing of hard and brittle material in mass production such as cast iron. It produces parallel pipe threads for products whose main purpose is the tightness of thread. It is used for parts in connection with pipe parts etc. The PS internal
thread is used for fitting with PT external.
Specification
Tapping Speeds depending on Materials
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |

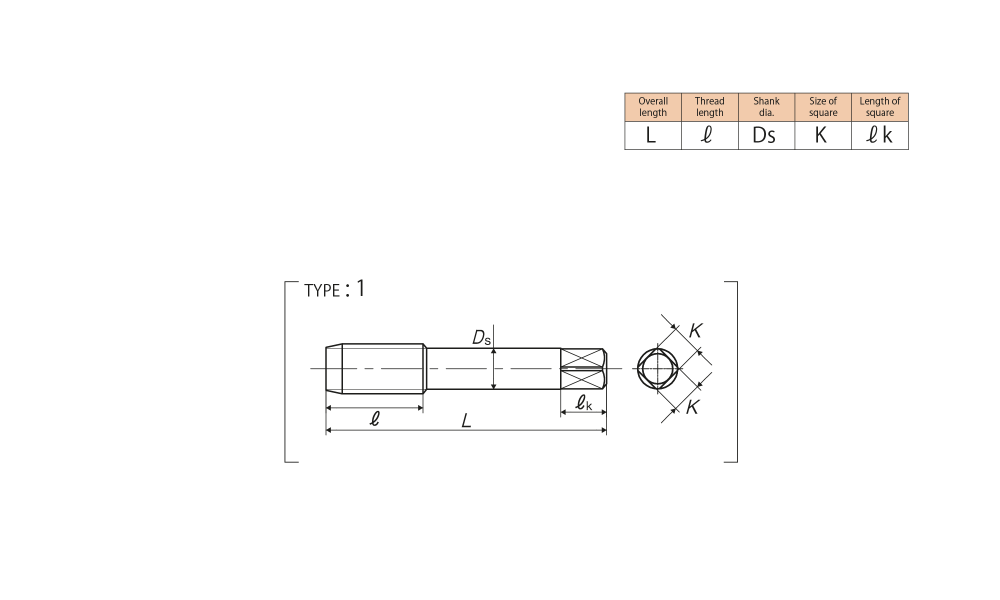

TYPE |
|
For Pipe Threads |
|||||||||||
|
PS 1/8-28 |
Ⅱ |
FCPS02K |
3.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PS 1/4-19 |
Ⅱ |
FCPS04- |
3.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PS 3/8-19 |
Ⅱ |
FCPS06- |
3.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PS 1/2-14 |
Ⅱ |
FCPS08Q |
3.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PS 3/4-14 |
Ⅱ |
FCPS12Q |
3.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PS 1 -11 |
Ⅱ |
FCPS16U |
3.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
5 |
1 |
|
PS 1 1/4-11 |
Ⅱ |
FCPS20U |
3.5P |
41.910 |
105 |
45 |
32 |
26 |
30 |
5 |
1 |
|
PS 1 1/2-11 |
Ⅱ |
FCPS24U |
3.5P |
47.803 |
110 |
45 |
38 |
29 |
32 |
6 |
1 |
Segment：1G
| แบรนด์สินค้า | YAMAWA |
|---|
