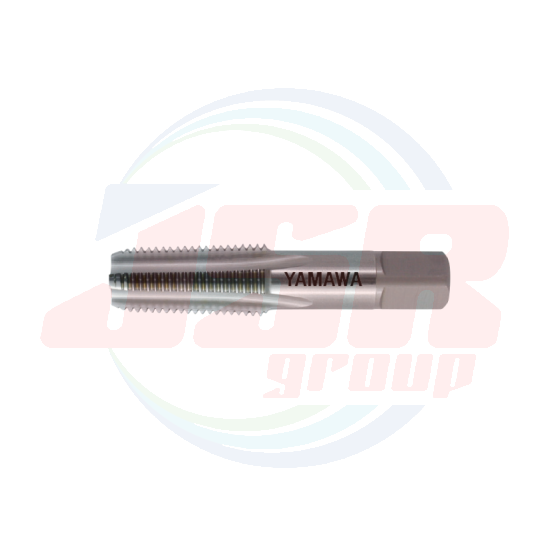

FC-PT (Pipe Threads) | Hand Taps for Taper Pipe Threads, Long (ℓg) Type, for Cast Irons | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 692.52
พร้อมส่ง
SKU
FC-PT (Pipe Threads)
- FC-PT is suitable for hard and abrasive materials such as cast irons.
Specification
Tapping Speeds depending on Materials
Segment：1G
|

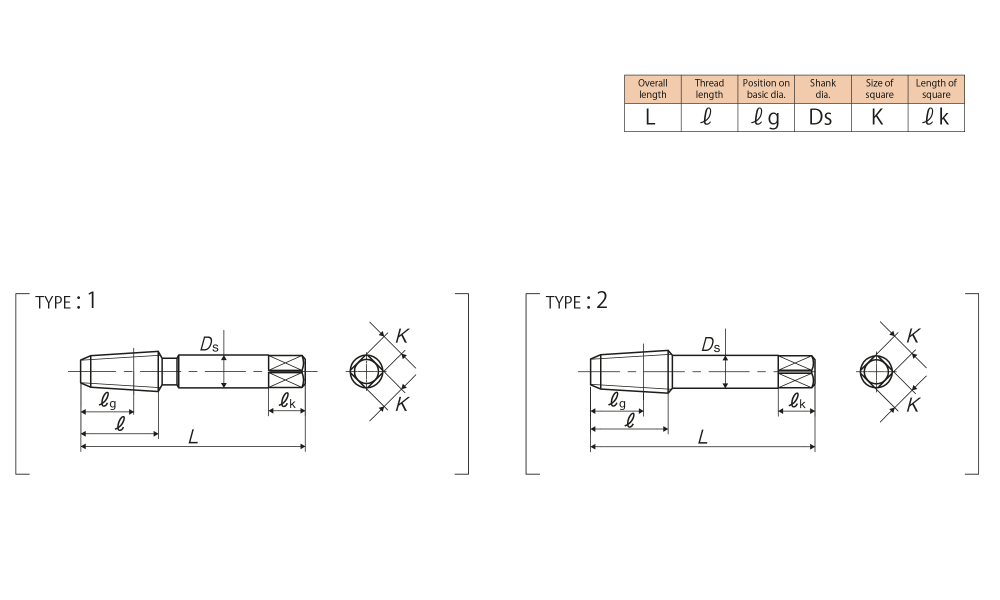

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/16-28 |
Ⅱ |
FCPT01K-8 |
2.5P |
7.723 |
55 |
19 |
13 |
8 |
6 |
9 |
4 |
1 |
|
PT 1/8-28 |
Ⅱ |
FCPT02K |
2.5P |
9.728 |
55 |
19 |
13 |
8 |
6 |
9 |
4 |
2 |
|
PT 1/4-19 |
Ⅱ |
FCPT04- |
2.5P |
13.157 |
62 |
28 |
21 |
11 |
9 |
12 |
4 |
2 |
|
PT 3/8-19 |
Ⅱ |
FCPT06- |
2.5P |
16.662 |
65 |
28 |
21 |
14 |
11 |
14 |
4 |
2 |
|
PT 1/2-14 |
Ⅱ |
FCPT08Q |
2.5P |
20.955 |
80 |
35 |
25 |
18 |
14 |
17 |
4 |
2 |
|
PT 3/4-14 |
Ⅱ |
FCPT12Q |
2.5P |
26.441 |
85 |
35 |
25 |
23 |
17 |
20 |
4 |
2 |
|
PT 1 -11 |
Ⅱ |
FCPT16U |
2.5P |
33.249 |
95 |
45 |
32 |
26 |
21 |
24 |
5 |
2 |
|
PT 1 1/4-11 |
Ⅱ |
FCPT20U |
2.5P |
41.910 |
105 |
45 |
32 |
32 |
26 |
30 |
5 |
2 |
|
PT 1 1/2-11 |
Ⅱ |
FCPT24U |
2.5P |
47.803 |
110 |
45 |
32 |
38 |
29 |
32 |
6 |
2 |
|
PT 2 -11 |
Ⅱ |
FCPT32U |
2.5P |
59.614 |
120 |
50 |
35 |
46 |
35 |
38 |
6 |
2 |
