G1290 | Internal measurement - Application range exceeding 120 mm | KROEPLIN
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
G1290
QTY:
10

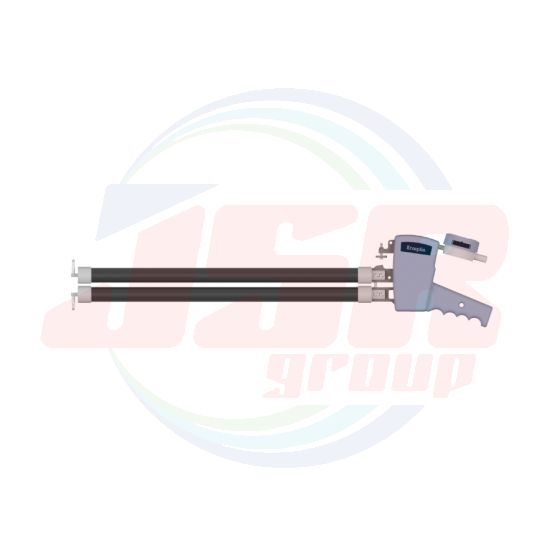

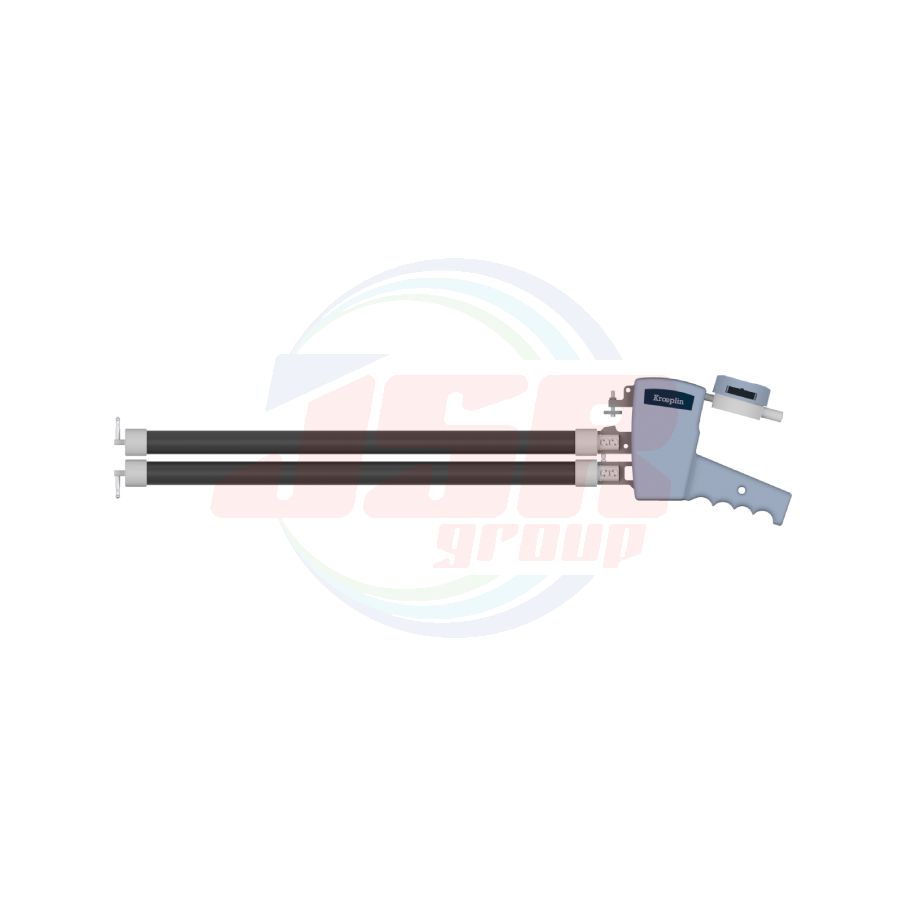

Internal measurement
Application range exceeding 120 mm
| Order No. | Measuring span Mes | Measuring range Meb | Range of indication Azb | Numerical interval Zw Scale interval Skw |
Permissible errors G | Repeatability limit r | Measuring force Fmin | Measuring force Fmax | Weight | Protection class | Measuring contact movable Hb |
Measuring contact fixed Hf |
Type of measuring contact |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | (N) | (g) | (mm) | (mm) | (mm) | ||
| L4100 | 50 | 100-150 | 99.5-150.5 | 0.01 | 0.05 | 0.03 | 1.0 | 1.8 | 425 | IP67 | 8.5 | 8.5 | Ball Ø 2 |
| H4100 | 50 | 100-150 | 99.5-150.5 | 0.05 | 0.05 | 0.025 | 0.9 | 1.9 | 385 | IP65 | 8.5 | 8.5 | Ball Ø 2 |
| L4130 | 50 | 130-180 | 129.5-180.5 | 0.01 | 0.05 | 0.03 | 1.0 | 1.8 | 430 | IP67 | 8.5 | 8.5 | Ball Ø 2 |
| H4130 | 50 | 130-180 | 129.5-180.5 | 0.05 | 0.05 | 0.025 | 0.9 | 1.9 | 390 | IP65 | 8.5 | 8.5 | Ball Ø 2 |
| L4150 | 50 | 150-200 | 149.5-200.5 | 0.01 | 0.05 | 0.03 | 1.0 | 1.8 | 435 | IP67 | 8.5 | 8.5 | Ball Ø 2 |
| H4150 | 50 | 150-200 | 149.5-200.5 | 0.05 | 0.05 | 0.025 | 0.9 | 1.9 | 395 | IP65 | 8.5 | 8.5 | Ball Ø 2 |
| L850 | 100 | 50-150 | 49.5-150.5 | 0.05 | 0.15 | 0.1 | 0.8 | 2.0 | 650 | IP67 | 4.0 | 4.0 | Ball Ø 5 |
| H850 | 100 | 50-150 | 49.5-150.5 | 0.1 | 0.15 | 0.1 | 0.8 | 2.0 | 590 | IP65 | 4.0 | 4.0 | Ball Ø 5 |
| L870 | 100 | 70-170 | 69.5-170.5 | 0.05 | 0.15 | 0.1 | 0.8 | 2.0 | 650 | IP67 | 14.0 | 14.0 | Ball Ø 5 |
| H870 | 100 | 70-170 | 69.5-170.5 | 0.1 | 0.15 | 0.1 | 0.8 | 2.0 | 590 | IP65 | 14.0 | 14.0 | Ball Ø 5 |
| G1290 | 100 | 90-190 | 89-191 | 0.1 | 0.3 | 0.1 | 1.0 | 1.5 | 910 | - | 13 | 13 | Ball Ø 5 |
| H1290 | 100 | 90-190 | 89-191 | 0.1 | 0.3 | 0.1 | 1.0 | 1.5 | 950 | - | 13 | 13 | Ball Ø 5 |
| G12150 | 100 | 150-250 | 149-251 | 0.1 | 0.3 | 0.1 | 1.0 | 1.5 | 920 | - | 30 | 30 | Ball Ø 5 |
| H12150 | 100 | 150-250 | 149-251 | 0.1 | 0.3 | 0.1 | 1.0 | 1.5 | 960 | - | 30 | 30 | Ball Ø 5 |
| G16200 | 200 | 200-400 | 199-401 | 0.2 | 0.4 | 0.2 | 0.7 | 1.6 | 1200 | - | 29 | 29 | Hemisphere SR 20 |
| H16200 | 200 | 200-400 | 199-401 | 0.2 | 0.4 | 0.2 | 0.7 | 1.6 | 1300 | - | 29 | 29 | Hemisphere SR 20 |
| แบรนด์สินค้า | KROEPLIN |
|---|---|
| Order No. | G1290 |
| Application range | exceeding 120 mm |
| Measuring span Mes | 100mm |
| Measuring range Meb | 90-190 mm |
| Range of indication Azb | 89-191 mm |
| Numerical interval Zw / Scale interval Skw | 0.1 mm |
| Permissible errors G | 0.3 mm |
| Repeatability limit r | 0.1 mm |
| Measuring force F min | 1.0 N |
| Measuring force F max | 1.5 N |
| Protection class | - |
| Measuring contact movable Hb | 13 mm |
| Measuring contact fixed Hf | 13 mm |
| Type of measuring contact | Ball Ø 5 |
| Measuring contacts | Measuring capacity | ||||
 |
 |
 |
 |
 |
|
| Ball Ø 2.0 mm | Ball Ø 5.0 mm | Ball Ø 5.0 mm | Hemisphere SR 20 mm | Meb Measuring range A Groove depth B Groove width Hb Measuring contact movable Hf Measuring contact fixed L Measuring depth |
|
| Order No. | Groove depth A max. | Groove width B min. | Measuring depth L max. | Picture | Electronic E Mechanical M |
| (mm) | (mm) | (mm) | |||
| L4100 | 8.3 | 2.4 | 192 | [5] | E |
| H4100 | 8.3 | 2.4 | 192 | [5] | M |
| L4130 | 8.3 | 2.4 | 192 | [5] | E |
| H4130 | 8.3 | 2.4 | 192 | [5] | M |
| L4150 | 8.3 | 2.4 | 192 | [5] | E |
| H4150 | 8.3 | 2.4 | 192 | [5] | M |
| L850 | 3.0 | 5.5 | 395 | [18] | E |
| H850 | 3.0 | 5.5 | 395 | [18] | M |
| L870 | 13.0 | 5.5 | 395 | [19] | E |
| H870 | 13.0 | 5.5 | 395 | [19] | M |
| G1290 | 12 | 5.5 | 535 | [19] | E |
| H1290 | 12 | 5.5 | 535 | [19] | M |
| G12150 | 29 | 5.5 | 535 | [19] | E |
| H12150 | 29 | 5.5 | 535 | [19] | M |
| G16200 | 28 | 21 | 720 | [20] | E |
| H16200 | 28 | 21 | 720 | [20] | M |
