• The products are the highest-quality gauge blocks exceeding Grade K and are provided with highly accurate thermal expansion coefficient data. They help minimize thermal correction and therefore
are suitable for highly accurate calibration.
(Uncertainty of thermal expansion coefficient: 0.035×10-6/ K (k=2))
• The thermal expansion coefficient is measured with a highly accurate doublefaced interferometer (DFI), and the dimensional accuracy is guaranteed with gauge block interferometer (GBI).
• Useful in highly accurate calibration of CMMs.

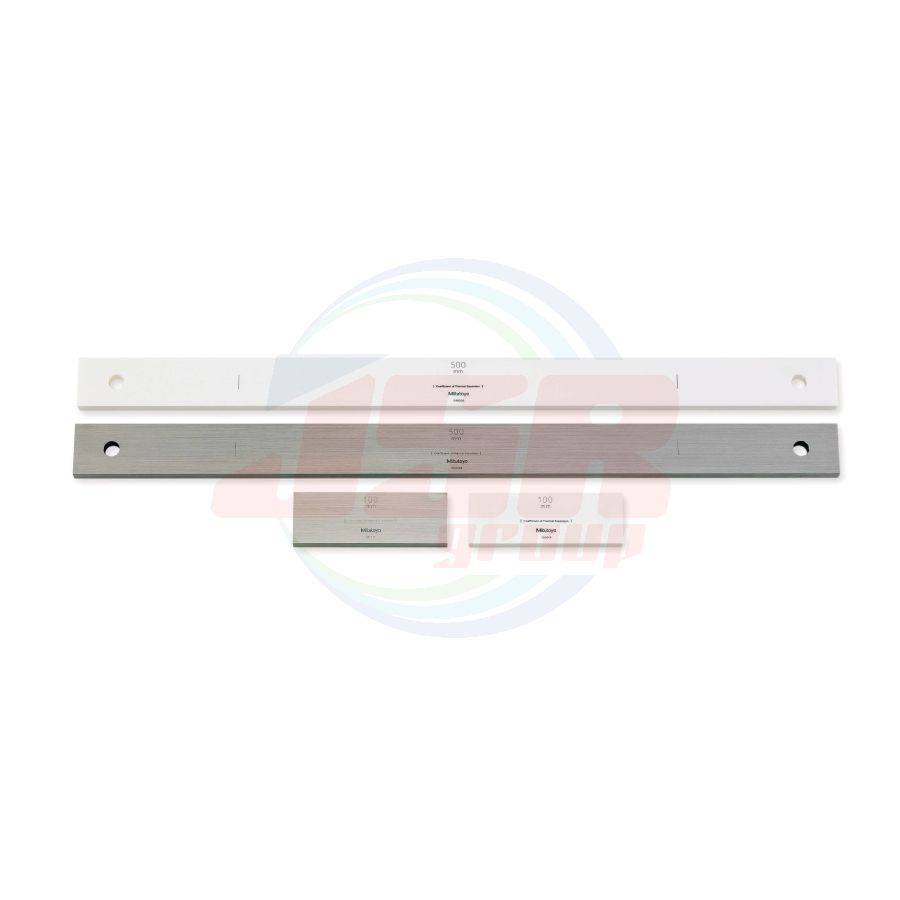

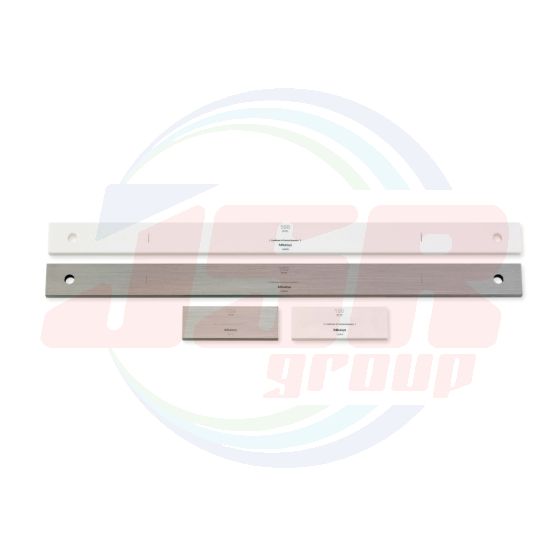

• A mark "Coefficient of Thermal Expansion" is engraved on the surface. They are available in the nominal sizes (100 to 500 mm) of steel and ceramic rectangular gauge blocks.
SPECIFICATIONS
Metric Blocks with CTE
Order No. (Steel) | Order No. (CERA) | Length (mm) |
611681 | 613681 | 100 |
611802 | 613802 | 125 |
611803 | 613803 | 150 |
611804 | 613804 | 175 |
611682 | 613682 | 200 |
611805 | 613805 | 250 |
611683 | 613683 | 300 |
611684 | 613684 | 400 |
611685 | 613685 | 500 |
Grade | K class in JIS/ISO, ASME |
Uncertainty of thermal expansion coefficient | 0.035×10-6/ K (k=2) |
Uncertainty of length measurement | 30 nm (k=2), for 100 mm block |
Note: An inspection certificate and a JCSS calibration certificate are supplied as standard.
A calibration report and a calibration certificate for the thermal expansion coefficient are also supplied as standard.
แบรนด์สินค้า | MITUTOYO |
---|---|
Inch-Metric | Metric |
