GC-WG | WEDGE GRIP | IMADA SEISAKUSHO
ราคาต่ำสุด
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
GC-WG
QTY:
0
ATTACHMENTS (JIGS)

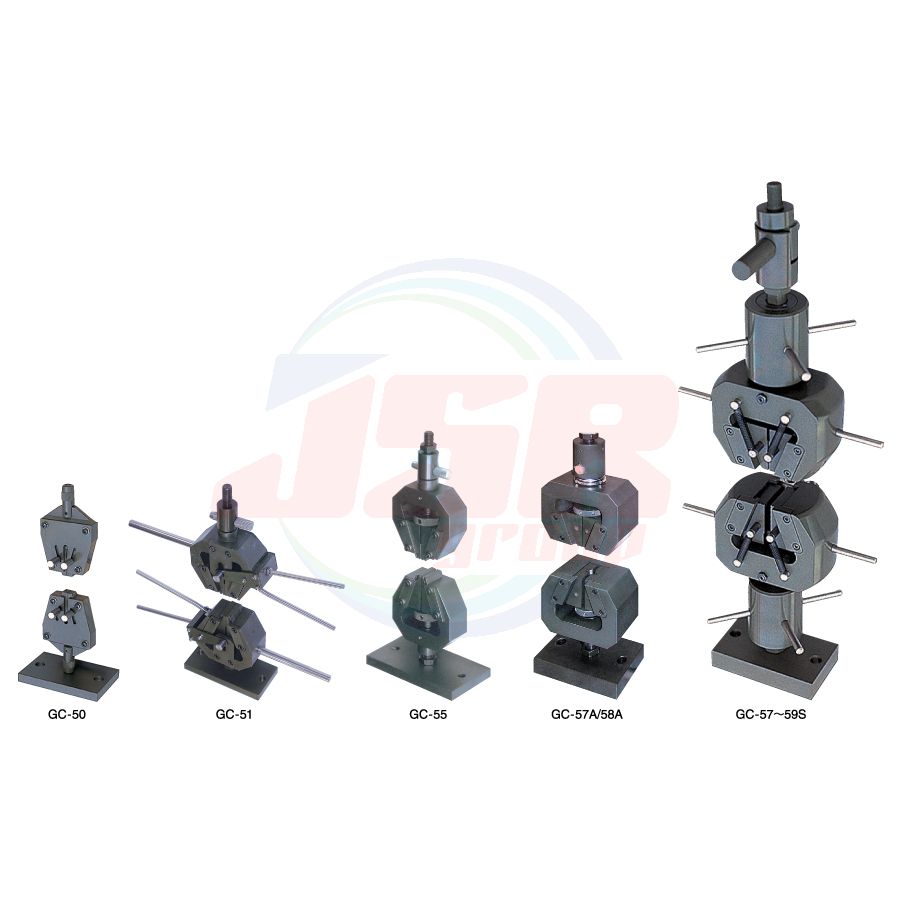

Wedge grip
| Type | Max. Load | Face width | Open wide | Upper Weight |
|---|---|---|---|---|
| GC-50 | 500N | 8mm | 4mm | 200g |
| GC-51 | 2kN | 30mm | 7mm | 1.9kg |
| GC-55 | 5kN | 5mm | 2.8kg | |
| GC-57 | 10kN | 38mm | 8mm | 6.1kg |
| GC-57A | 40mm | 9mm | 5.2kg | |
| GC-58 | 20kN | 38mm | 8mm | 7.3kg |
| GC-58A | 40mm | 9mm | 5.2kg | |
| GC-59 | 50kN | 45mm | 8mm | 12.3kg |
| GC-59S | 100kN | 16.1kg |
• It has a self-clamping effect to hold the samples tightly, and it is very easy to clamp or release the samples.
• Parts of hard may cause slip since the initial grip force might be not enough. This needs to be checked before testing the samples.
• Surface of the gripped area is flat. We can be manufactured “V” shaped surface of the round rod in custom order.
• GC-57~59S are fixed position type wedge grip.
• Parts of hard may cause slip since the initial grip force might be not enough. This needs to be checked before testing the samples.
• Surface of the gripped area is flat. We can be manufactured “V” shaped surface of the round rod in custom order.
• GC-57~59S are fixed position type wedge grip.
Dimension
| แบรนด์สินค้า | IMADA SEISAKUSHO |
|---|---|
| Order No. | GC-WG |
